Dahua

Dahua IPC-HDW1439V-A-IL-0280B-S7 4MP Smart Dual Light Eyeball Network Camera

(0)

€80,93

Product Overview

Designed for price-sensitive outdoor installations, the Dahua IPC-HDW1439V-A-IL-0280B-S7 brings 4MP recording, Smart Dual Light and an integrated microphone to a compact eyeball camera. With a 2.8 mm fixed lens, it suits entrance areas, small yards and shop perimeters where one cable can supply both data and power over PoE. S7-series SMD Plus helps distinguish people and vehicles from other motion.

Key Features

4 MP (2560 × 1440) video at up to 30 fps with a fixed 2.8 mm lens
Smart Dual Light with infrared up to 30 m and warm light up to 20 m (2.8 mm S7 version)
SMD Plus human/vehicle classification and 120 dB WDR
Integrated microphone and Smart H.265+/H.264+ compression
PoE (802.3af) or 12 VDC power; IP67 weather protection

Technical Specifications

Imaging and lens

Image sensor	1/3-inch CMOS (S7 revision)
Maximum resolution	2560 × 1440 (4 MP)
Frame rate	Up to 30 fps at 4 MP
Lens	2.8 mm fixed focal, F1.6
Field of view (2.8 mm)	H: 95°; V: 53°; D: 110°
Wide dynamic range	120 dB

Illumination and analytics

Illumination	Smart Dual Light: infrared and warm light
Infrared distance (2.8 mm)	Up to 30 m
Warm-light distance (2.8 mm)	Up to 20 m
Detection	SMD Plus human/vehicle classification

Video, audio and network

Video codecs	H.265, H.264, Smart H.265+, Smart H.264+
Audio	Built-in microphone
Network	RJ-45 10/100 Mbps Ethernet
Interoperability	ONVIF Profile S and T; CGI

Power and construction

Power	12 VDC (±30%) or PoE IEEE 802.3af
Ingress protection	IP67
Operating temperature	−40 °C to +60 °C
Dimensions	100.9 × Ø109.9 mm
Net weight	0.32 kg

En stock

Receives in 5 days.

Dahua

Dahua HFW3549T1-AS-PV-0280B-S5 5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera

(0)

€271,25

Product Overview

The Dahua HFW3549T1-AS-PV-0280B-S5 is an S5-series 5MP bullet camera with a 2.8 mm fixed lens, combining Smart Dual Light with active-deterrence features. Its 1/2.7”5Megapixel progressive CMOS sensor captures 2592 (H) × 1944 (V) with 120 dB wide dynamic range. Night illumination is specified at 40 m. Video analytics include tripwire, intrusion with human and vehicle classification. The camera includes a built-in microphone, microSD recording up to 256 GB.

Key Features

2592 (H) × 1944 (V) maximum image resolution with 1/2.7”5Megapixel progressive CMOS sensor
2.8 mm fixed-focal lens; Horizontal 98° × Vertical 71° × Diagonal 129° field of view
Night coverage: 40 m
Tripwire and intrusion detection with human/vehicle classification
A built-in microphone, microSD recording up to 256 GB
Power options: 12V DC/PoE (802.3af); IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.003 Lux @ F1.0
Image Sensor	1/2.7”5Megapixel progressive CMOS
Max. Resolution	2592 (H) × 1944 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.0
Field of View	Horizontal 98° × Vertical 71° × Diagonal 129°

Illumination and video

Illumination Distance	40 m (131.2 ft)
Video Frame Rate	Main stream: 2592 × 1944 @1-20 fps/ 2688 × 1520 @1-25/30 fps Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps Third stream: 1920 × 1080 @1-25/30 fps
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/Smart H.264+
WDR	120 dB
Stream Capability	3 streams
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Built-in MIC	Yes
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 2W (12V DC); 2.6W (PoE) Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flash): 7.5W (12V DC); 8.8W (PoE)
Interoperability	ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

Physical and environmental

Colour	White
Operating Conditions	–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Protection	IP67
Casing Material	Metal + plastic
Product Dimensions	288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H)
Net Weight	1.0 kg (2.2 lb)
Certification	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Model / SKU: HFW3549T1-AS-PV-0280B-S5. EAN: 6923172525536. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua CS4005-4GT-36 5-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

(0)

€48,02

Product Overview

The Dahua CS4005-4GT-36 is a 5-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 10 Gbps with a packet forwarding rate of 7.4 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 10 Gbps
Packet forwarding: 7.4 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4005-4GT-36. EAN: 6939554922268. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua DH-SD5A425GB-HNR 4MP 25× Starlight IR WizSense Network PTZ Camera

(0)

€593,20

Product Overview

The Dahua DH-SD5A425GB-HNR is a 4MP Starlight network PTZ camera with 25× optical zoom and infrared illumination for adjustable overview and detail monitoring. Its 1/2.8" CMOS sensor captures 2560 (H) × 1440 (V) with 120 dB wide dynamic range. Night illumination is specified at 150 m (IR). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes microSD recording up to 512 GB.

Key Features

2560 (H) × 1440 (V) maximum image resolution with 1/2.8" CMOS sensor
5 mm–125 mm lens; H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° field of view
Night coverage: 150 m (IR)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
MicroSD recording up to 512 GB
Power options: 24 VDC, 2.5 A ± 25% PoE+ (802.3at); IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (IR light on)
Optical Zoom	25×
Image Sensor	1/2.8" CMOS
Max. Resolution	2560 (H) × 1440 (V)
Focal Length	5 mm–125 mm
Max. Aperture	F1.6–F3.6
Field of View	H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Illumination and video

Illumination Distance	150 m (492.13 ft) (IR)
Video Frame Rate	Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA @ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)
Video Compression	H.264H;H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG
WDR	120 dB
Noise Reduction	2D NR; 3D NR

Intelligent analytics

IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire)
Alarm Input	2 (on-off value input: 0–5 VDC)
Alarm Output	1
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Network Port	RJ-45 (10/100 Base-T)
Power Supply	24 VDC, 2.5 A ± 25% PoE+ (802.3at)
Power Consumption	Basic: 12 W Max: 21 W (illuminator + PTZ + Heater + Fan)
Interoperability	CGI;SDK;ONVIF (Profile S&G&T)

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Protection	IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection
Product Dimensions	Φ190.0 mm × 332.0 mm (Φ7.48" × 13.07")
Net Weight	4.7 kg (10.36 lb)
Certifications	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Operating Humidity	≤95%

Model / SKU: DH-SD5A425GB-HNR. EAN: 6923172599735. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Poco stock

Receives in 5 days.

Dahua

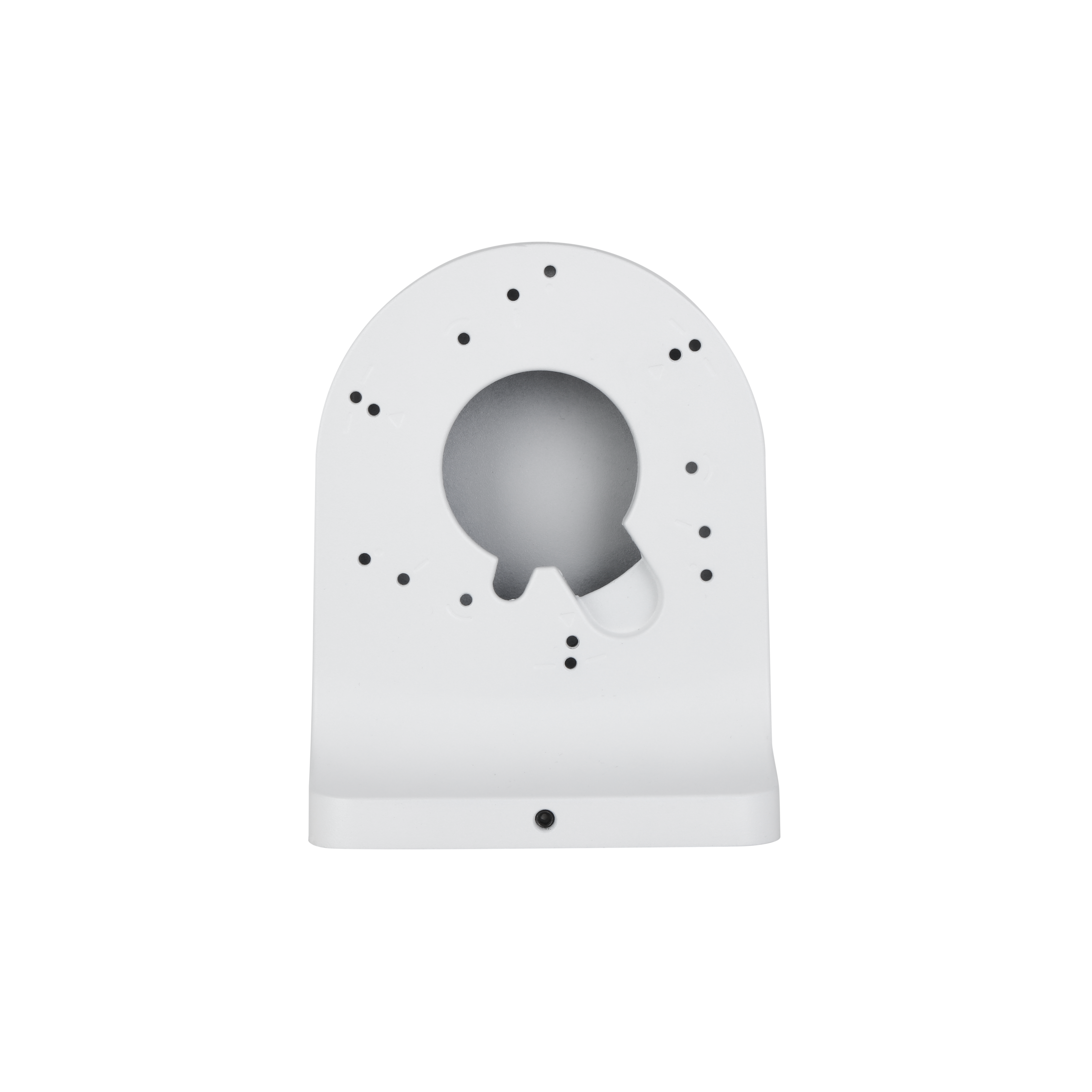

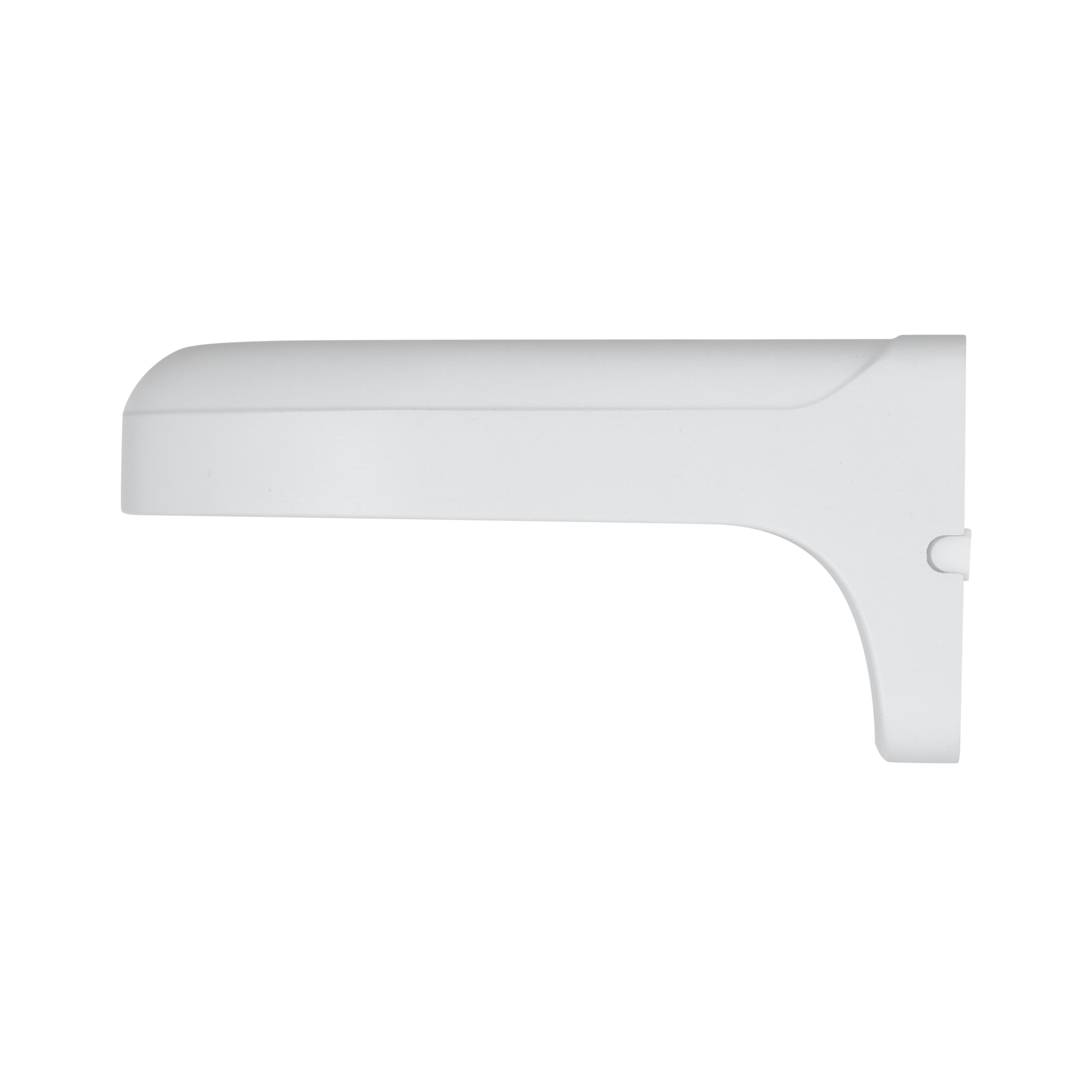

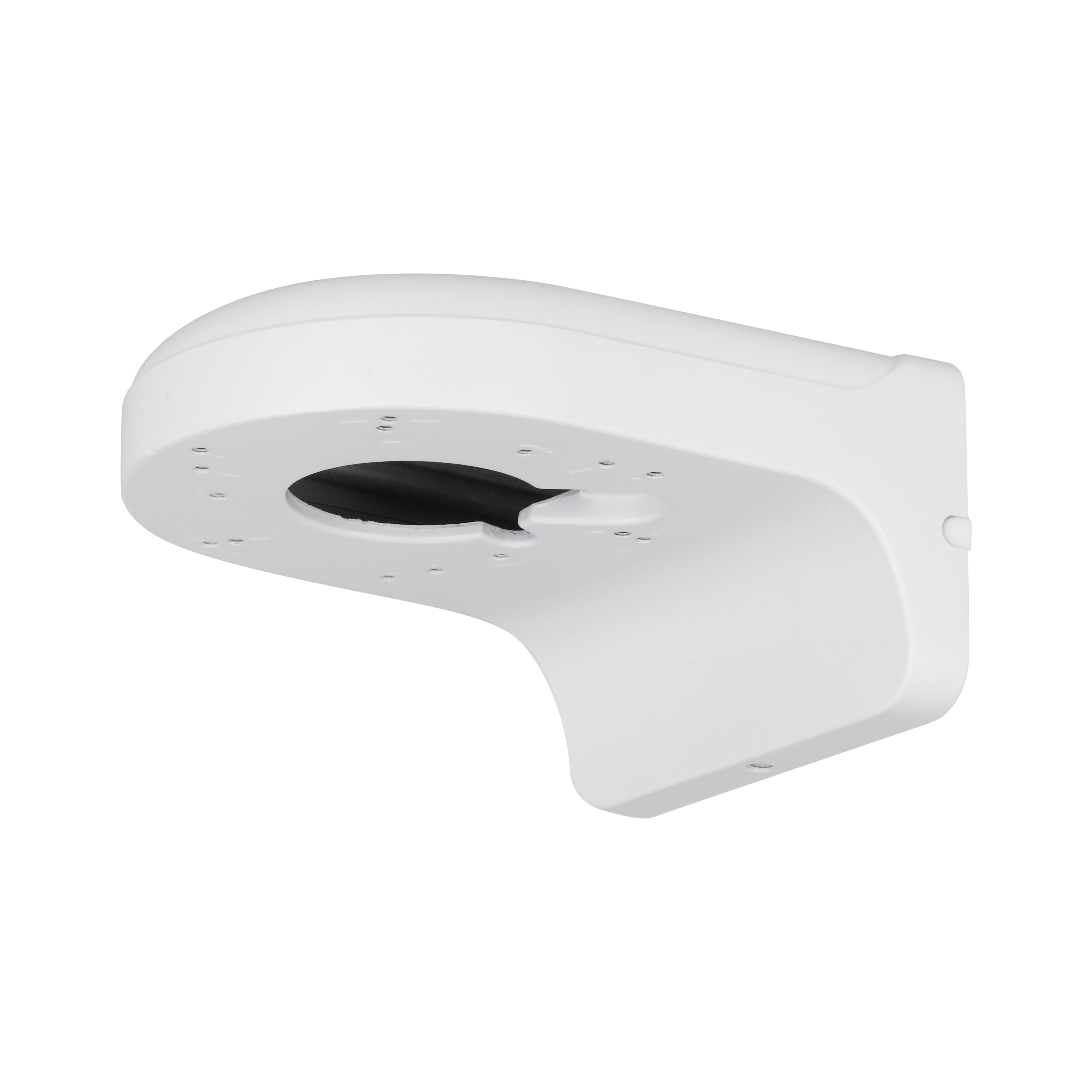

Dahua PFB2203W-B Wall Mount Bracket

(0)

€13,34

Product Overview

The Dahua PFB2203W-B is a Wall Mount Bracket in black. Its construction uses SGCC; Aluminum alloy and supports a specified load of 1.0 kg. The 162.0 mm × 129.4 mm × 80.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.48 kg.

Key Features

Casing Material: SGCC; Aluminum alloy
Product Dimensions: 162.0 mm × 129.4 mm × 80.0 mm (L × W × H)
Load Bearing: 1.0 kg
Net Weight: 0.48 kg
Operating Temperature: –40 °C to +60 °C
Installation: Wall mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Casing Material	SGCC; Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Wall mount

Dimensions and weight

Product Dimensions	162.0 mm × 129.4 mm × 80.0 mm (6.38" × 5.09" × 3.15") (L × W × H)
Net Weight	0.48 kg (1.06 lb)

Model / SKU: PFB2203W-B. EAN: 6939554981821. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua DHI-NVR2108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder

(0)

€182,32

Product Overview

The Dahua DHI-NVR2108HS-8P-4KS3 is an 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	8 channels
Network Bandwidth	AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.81 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.89 kg (1.96 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: DHI-NVR2108HS-8P-4KS3. EAN: 6923172573568. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua CHS4210-8GT-110 10-Port Cloud Managed Hardened Gigabit Switch with 8-Port PoE

(0)

€132,51

Product Overview

The Dahua CHS4210-8GT-110 is a 10-Port Cloud Managed Hardened Gigabit Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink). Its PoE allocation is port 3-8≤30 W, port 1–2≤90 W, total≤110 W. The switching fabric is rated at 20 Gbps with a packet forwarding rate of 14.88 Mpps. Installation options are din rail mount; desktop mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
PoE power allocation: Port 3-8≤30 W, port 1–2≤90 W, total≤110 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 20 Gbps
Packet forwarding: 14.88 Mpps
MAC address table: 8K
Power input: External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 3-8≤30 W, port 1–2≤90 W, total≤110 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A
Power Consumption	Idling: 2 W Full load: 116.6 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Protection	IP30; IK06
Casing Material	Iron
Product Dimensions	171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)
Net Weight	0.66 kg (1.46 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	DIN rail mount; desktop mount

Model / SKU: CHS4210-8GT-110. EAN: 6937552482982. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua IPC-HDW5559T-ZE-IL-27135 5MP Smart Dual Light Vari-focal Eyeball WizMind Network Camera

(0)

€406,43

Product Overview

The Dahua IPC-HDW5559T-ZE-IL-27135 brings 5MP WizMind imaging and Smart Dual Light to a motorized vari-focal eyeball design for adjustable scene coverage. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR) Up to 40 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
2.7 mm–13.5 mm motorized vari-focal lens; H: 110°–32°; V: 57°–18°; D: 134°–37° field of view
Night coverage: Up to 50 m (IR) Up to 40 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+(802.3at); ePoE; IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/2.7" CMOS
Max. Resolution	2960 (H) × 1668 (V)
Lens Type	Motorized vari-focal
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.6
Field of View	H: 110°–32°; V: 57°–18°; D: 134°–37°

Illumination and video

Illumination Distance	Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light)
Video Frame Rate	Main stream: 2960 × 1668@(1–25/30 fps)/1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+(802.3at); ePoE
Power Consumption	Basic: 3.5 W (12 VDC); 5 W (PoE); Max.: 14.8 W (12 VDC); 17.5 W (PoE) (IR on + WDR + intelligence on + light active deterrence)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Product Dimensions	108.3 mm × Φ122.0 mm (4.26" × Φ4.80")
Net Weight	0.70 kg (1.54 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HDW5559T-ZE-IL-27135. EAN: 6937552412071. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua CS4006-4GT-36 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

(0)

€53,36

Product Overview

The Dahua CS4006-4GT-36 is a 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 12 Gbps with a packet forwarding rate of 8.9 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 12 Gbps
Packet forwarding: 8.9 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	12 Gbps
Packet Forwarding Rate	8.9 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4006-4GT-36. EAN: 6939554922244. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua CHS4206-4ET-90 6-Port Cloud Managed Hardened Switch with 4-Port PoE

(0)

€79,15

Product Overview

The Dahua CHS4206-4ET-90 is a 6-Port Cloud Managed Hardened Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; din-rail mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink)
PoE power allocation: Port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 8K
Power input: External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69 A
Power Consumption	Idling: 1.3 W Full load: 92.7 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Protection	IP30; IK06
Casing Material	Iron
Product Dimensions	154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)
Net Weight	0.32 kg (0.71 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; DIN-rail mount

Model / SKU: CHS4206-4ET-90. EAN: 6939554903465. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed Desktop Switch with 4-Port PoE

Dahua

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed Desktop Switch with 4-Port PoE

(0)

€44,47

Product Overview

The Dahua CS4006-4ET2GT-36 is a 6-Port Cloud Managed Desktop Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4006-4ET2GT-36. EAN: 6939554912986. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua IPC-HFW5559E-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

(0)

€294,37

Product Overview

The black Dahua IPC-HFW5559E-ASE-IL-0280B-BLACK brings 5MP WizMind imaging, a 2.8 mm fixed lens and Smart Dual Light to a metal bullet design. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
2.8 mm fixed-focal lens; H: 108.4°; V: 60°; D: 127.1° field of view
Night coverage: Up to 50 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/2.7" CMOS
Max. Resolution	2960 (H) × 1668 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 108.4°; V: 60°; D: 127.1°

Illumination and video

Illumination Distance	Up to 50 m (164.04 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 2960 × 1668@(1–25/30 fps)/1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Casing Material	Metal
Product Dimensions	192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L × W × H)
Net Weight	610 g (1.34 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW5559E-ASE-IL-0280B-BLACK. EAN: 6937552409880. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-HDW1839T-A-IL-0280B-S6-B Network Camera

(0)

€112,95

Product Overview

The black Dahua IPC-HDW1839T-A-IL-0280B-S6-B is an S6-series eyeball camera with a 2.8 mm lens. Its listed specifications are limited to fields verified for the manufacturer variant. Its 1/2.7" CMOS, 8 MP sensor captures 3840×2160 with digital wide dynamic range. The camera includes a built-in microphone.

Key Features

3840×2160 maximum image resolution with 1/2.7" CMOS, 8 MP sensor
2.8 mm lens
A built-in microphone
Power options: 12 VDC, PoE (802.3af)
WDR: DWDR
Storage: FTP
Power Supply: 12 VDC, PoE (802.3af)

Technical Specifications

Imaging and lens

Image Sensor	1/2.7" CMOS, 8 MP
Max. Resolution	3840×2160
Focal Length	2.8 mm
Max. Aperture	F1.6

Illumination and video

Smart Codec	H.265+, H.264+
WDR	DWDR
Stream Capability	2
Noise Reduction	3D DNR

Connectivity and power

Built-in MIC	Yes
Storage	FTP
Network Port	RJ-45 (10 Mbps, 100 Mbps)
Power Supply	12 VDC, PoE (802.3af)
Interoperability	ONVIF (S, T), CGI, P2P, Genetec, Milestone

Physical and environmental

Colour	Black
Operating Temperature	-40°C ~ +55°C
Casing Material	Metal
Product Dimensions	Ø 94 mm × 85.6 mm
Operating Humidity	≤95% (non-condensing)

Model / SKU: IPC-HDW1839T-A-IL-0280B-S6-B. EAN: 6939554999727. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua IPC-HFW5459E1-ZE-IL-2712-BLACK 4MP Smart Dual Light Vari-focal Bullet WizMind Network Camera

(0)

€475,80

Product Overview

The black Dahua IPC-HFW5459E1-ZE-IL-2712-BLACK pairs 4MP WizMind imaging with Smart Dual Light and motorized vari-focal optics in a bullet enclosure. Its 1/1.8" CMOS sensor captures 2688 (H) × 1520 (V) with 140 dB wide dynamic range. Night illumination is specified at Up to 60 m (IR) Up to 60 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

2688 (H) × 1520 (V) maximum image resolution with 1/1.8" CMOS sensor
2.7 mm–12 mm motorized vari-focal lens; H: 115°–47°; V: 62°–27°; D: 137°–54° field of view
Night coverage: Up to 60 m (IR) Up to 60 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Lens Type	Motorized vari-focal
Focal Length	2.7 mm–12 mm
Max. Aperture	F1.8
Field of View	H: 115°–47°; V: 62°–27°; D: 137°–54°

Illumination and video

Illumination Distance	Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light)
Video Frame Rate	Main stream: 2688 × 1520@ (1–25/30 fps) /1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	140 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 3.7 W (12 VDC); 5 W (PoE); Max.: 12.9 W (12 VDC); 16.1 W (PoE) (IR on + WDR + intelligence on)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L × W × H)
Net Weight	1.09 kg (2.40 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW5459E1-ZE-IL-2712-BLACK. EAN: 6937552412910. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua S3016-16GT 16-Port Unmanaged Gigabit Switch

(0)

€61,37

Product Overview

The Dahua S3016-16GT is a 16-Port Unmanaged Gigabit Switch. Connections comprise Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink). The switching fabric is rated at 32 Gbps with a packet forwarding rate of 23.808 Mpps. Installation options are desktop mount; wall mount; rack mount.

Key Features

Network connections: Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)
Switching fabric: 32 Gbps
Packet forwarding: 23.808 Mpps
MAC address table: 16K
Power input: Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
Operating range: –10 °C to +55 °C
Mounting options: Desktop mount; wall mount; rack mount

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet Metal
Product Dimensions	294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)
Net Weight	0.74 kg (1.63 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount; rack mount

Network interfaces

Description of Function Slots	Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)

Switching performance

Switching Capacity	32 Gbps
Packet Forwarding Rate	23.808 Mpps
MAC Table Size	16K

PoE and power

Power Supply	Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
Power Consumption	Idling: 2.2 W; Full load: 7.8 W

Model / SKU: S3016-16GT. EAN: 6939554932632. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua CS4009-8ET1GT-60 9-Port Cloud Managed Desktop Switch with 8-Port PoE

(0)

€53,36

Product Overview

The Dahua CS4009-8ET1GT-60 is a 9-Port Cloud Managed Desktop Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 2-8≤30 W, port 1≤60 W, total≤60 W. The switching fabric is rated at 3.6 Gbps with a packet forwarding rate of 2.68 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 2-8≤30 W, port 1≤60 W, total≤60 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE
Switching fabric: 3.6 Gbps
Packet forwarding: 2.68 Mpps
MAC address table: 8K
Power input: External Power Adapter (53 V, 1.22 A)

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 2-8≤30 W, port 1≤60 W, total≤60 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE
Power Supply	External Power Adapter (53 V, 1.22 A)
Power Consumption	Idling: 4 W Full load: 63 W

Switching performance

Switching Capacity	3.6 Gbps
Packet Forwarding Rate	2.68 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Net Weight	0.36 kg (0.79 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4009-8ET1GT-60. EAN: 6937552421424. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK 6MP WizColor Fixed-focal Dome WizMind Network Camera

(0)

€426,89

Product Overview

The black Dahua IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK combines 6MP WizColor imaging with a 2.8 mm fixed lens in a dome enclosure with integrated audio. Its 1/1.8" CMOS sensor captures 3072 (H) × 2048 (V) with 130 dB wide dynamic range. Night illumination is specified at Up to 60 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 1 TB.

Key Features

3072 (H) × 2048 (V) maximum image resolution with 1/1.8" CMOS sensor
2.8 mm fixed-focal lens; H: 109°; V: 59°; D: 131° field of view
Night coverage: Up to 60 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
Dual microphones, a built-in speaker, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0002Lux@F1.0(Color,30IRE) 0.0001Lux@F1.0(B/W,30IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3072 (H) × 2048 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.0
Field of View	H: 109°; V: 59°; D: 131°

Illumination and video

Illumination Distance	Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 3072 × 2048@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	130 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.1 W (12 VDC); 4.8 W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.7 W (12 VDC); 23.9 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK. EAN: 6923172597557. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua HDW5859H-ASEPV0280BPRO 8MP WizColor Fixed-focal Eyeball WizMind Network Camera

(0)

€442,01

Product Overview

The Dahua HDW5859H-ASEPV0280BPRO combines 8MP WizColor imaging with a 2.8 mm fixed lens in a metal eyeball housing with integrated audio. Its 1/1.8" CMOS sensor captures 3840 (H) × 2160 (V) with 130 dB wide dynamic range. Night illumination is specified at Up to 60 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 1 TB.

Key Features

3840 (H) × 2160 (V) maximum image resolution with 1/1.8" CMOS sensor
2.8 mm fixed-focal lens; H: 109°; V: 59°; D: 131° field of view
Night coverage: Up to 60 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
Dual microphones, a built-in speaker, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0004Lux@F1.0(Color,30IRE) 0.0002 Lux@F1.0(B/W,30IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.0
Field of View	H: 109°; V: 59°; D: 131°

Illumination and video

Illumination Distance	Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	130 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.1 W (12 VDC); 4.8 W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: HDW5859H-ASEPV0280BPRO. EAN: 6937552406377. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-HFW3849E-AS-IL-0280B-B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

(0)

€248,13

Product Overview

The black Dahua IPC-HFW3849E-AS-IL-0280B-B provides 8MP Smart Dual Light imaging through a 2.8 mm fixed lens in a metal bullet enclosure. Its 1/2.7" CMOS sensor captures 3840 (H) × 2160 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 30 m (IR) Up to 30 m (Warm light). Video analytics include tripwire, intrusion, loitering with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 512 GB.

Key Features

3840 (H) × 2160 (V) maximum image resolution with 1/2.7" CMOS sensor
2.8 mm fixed-focal lens; H: 110°; V: 58°; D: 132° field of view
Night coverage: Up to 30 m (IR) Up to 30 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 512 GB
Power options: 12 VDC (±30%); PoE (802.3af); IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.007 lux@F1.4 (Color, 30 IRE) 0.0007 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/2.7" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.4
Field of View	H: 110°; V: 58°; D: 132°

Illumination and video

Illumination Distance	Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Video Frame Rate	Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC (±30%); PoE (802.3af)
Power Consumption	Basic: 3.7 W (12 VDC); 5.4 W (PoE); Max.: 8 W (12 VDC); 10 W (PoE) (H.265 + WDR + warm light + intelligence on)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Casing Material	Metal
Product Dimensions	192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L × W × H)
Net Weight	610 g (1.34 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW3849E-AS-IL-0280B-B. EAN: 6939554931932. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua IPC-HFW5859E1-ZHE-IL-2712-WHITE 8MP Smart Dual Light Vari-focal Bullet WizMind Network Camera

(0)

€549,62

Product Overview

The white Dahua IPC-HFW5859E1-ZHE-IL-2712-WHITE combines 8MP WizMind imaging with Smart Dual Light and motorized vari-focal optics in a bullet enclosure. Its 1/1.8" CMOS sensor captures 3840 (H) × 2160 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 60 m (IR) Up to 60 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

3840 (H) × 2160 (V) maximum image resolution with 1/1.8" CMOS sensor
2.7 mm–12 mm motorized vari-focal lens; H: 113°–47°; V: 60°–23°; D: 133°–53° field of view
Night coverage: Up to 60 m (IR) Up to 60 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0008 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Lens Type	Motorized vari-focal
Focal Length	2.7 mm–12 mm
Max. Aperture	F1.8
Field of View	H: 113°–47°; V: 60°–23°; D: 133°–53°

Illumination and video

Illumination Distance	Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light)
Video Frame Rate	Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 3.7 W (12 VDC); 5 W (PoE); Max.: 12.9 W (12 VDC); 16.1 W (PoE) (IR on + WDR + intelligence on)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L × W × H)
Net Weight	1.09 kg (2.40 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW5859E1-ZHE-IL-2712-WHITE. EAN: 6937552412880. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua IPC-HFW5659T1-ASE-PV-0360B-PRO-BLACK 6MP WizColor Fixed-focal Bullet WizMind Network Camera

(0)

€426,89

Product Overview

The black Dahua IPC-HFW5659T1-ASE-PV-0360B-PRO-BLACK brings 6MP WizColor imaging and a 3.6 mm fixed lens together in a bullet housing with intelligent surveillance functions. Its 1/1.8" CMOS sensor captures 3072 (H) × 2048 (V) with 130 dB wide dynamic range. Night illumination is specified at Up to 80 m (IR) Up to 60 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 1 TB.

Key Features

3072 (H) × 2048 (V) maximum image resolution with 1/1.8" CMOS sensor
3.6 mm fixed-focal lens; H: 93°; V: 50°; D: 111° field of view
Night coverage: Up to 80 m (IR) Up to 60 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
Dual microphones, a built-in speaker, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0002 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3072 (H) × 2048 (V)
Lens Type	Fixed-focal
Focal Length	3.6 mm
Max. Aperture	F1.0
Field of View	H: 93°; V: 50°; D: 111°

Illumination and video

Illumination Distance	Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light)
Video Frame Rate	Main stream: 3072 × 2048@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	130 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.1 W (12 VDC); 4.8 W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal + plastic
Product Dimensions	288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight	1.09 kg (2.40 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW5659T1-ASE-PV-0360B-PRO-BLACK. EAN: 6937552411111. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

(0)

€323,72

Product Overview

The black Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK pairs 5MP WizMind imaging with a 2.8 mm fixed lens and Smart Dual Light in a bullet enclosure. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 80 m (IR) Up to 60 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
2.8 mm fixed-focal lens; H: 108.4°; V: 60°; D: 127.1° field of view
Night coverage: Up to 80 m (IR) Up to 60 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/2.7" CMOS
Max. Resolution	2960 (H) × 1668 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 108.4°; V: 60°; D: 127.1°

Illumination and video

Illumination Distance	Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light)
Video Frame Rate	Main stream: 2960 × 1668@(1–25/30 fps)/1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L × W × H)
Net Weight	835 g (1.84 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HFW5559T-ASE-IL-0280B-BLACK. EAN: 6937552411357. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Poco stock

Receives in 5 days.

Dahua

Dahua IPC-HDBW5459R-ASE-IL-0280B 4MP Smart Dual Light Fixed-focal Vandal-proof Dome WizMind Network Camera

(0)

€345,96

Product Overview

The Dahua IPC-HDBW5459R-ASE-IL-0280B combines 4MP WizMind imaging, a 2.8 mm fixed lens and Smart Dual Light in a vandal-resistant dome design. Its 1/1.8" CMOS sensor captures 2688 (H) × 1520 (V) with 140 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

2688 (H) × 1520 (V) maximum image resolution with 1/1.8" CMOS sensor
2.8 mm fixed-focal lens; H: 112°; V: 58°; D: 137° field of view
Night coverage: Up to 50 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0007 lux@F1.6(Color, 30IRE) 0.0004 lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 112°; V: 58°; D: 137°

Illumination and video

Illumination Distance	Up to 50 m (164.04 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 2688 × 1520@ (1–25/30 fps) /1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression	AI H.265; AI H.264
WDR	140 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.1 W (12 VDC); 6.1 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.2 W (12 VDC); 15.5 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	94 mm × Φ122 mm (3.70" × Φ4.80")
Net Weight	713 g (1.57 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HDBW5459R-ASE-IL-0280B. EAN: 6937552408142. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-HDBW2449E-S-IL-0280B-B 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

(0)

€116,50

Product Overview

The black Dahua IPC-HDBW2449E-S-IL-0280B-B combines 4MP Smart Dual Light imaging with a 2.8 mm fixed lens in a metal dome housing. Its 1/2.9" CMOS sensor captures 2688 (H) × 1520 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 30 m (IR) Up to 30 m (Warm light). Video analytics include tripwire, intrusion with human and vehicle classification; SMD Plus provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 256 GB.

Key Features

2688 (H) × 1520 (V) maximum image resolution with 1/2.9" CMOS sensor
2.8 mm fixed-focal lens; H: 101°; V: 54°; D: 120° field of view
Night coverage: Up to 30 m (IR) Up to 30 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD Plus smart motion detection
A built-in microphone, microSD recording up to 256 GB
Power options: 12 VDC/PoE (802.3af); IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Image Sensor	1/2.9" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 101°; V: 54°; D: 120°

Illumination and video

Illumination Distance	Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Video Frame Rate	Main stream: 2688 × 1520 @ (1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD	SMD Plus

Connectivity and power

Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726
Storage	FTP; SFTP; Micro SD card (support max. 256 GB)
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.4 W (12 VDC), 3 W (PoE); Max.: 6.6 W (12 VDC), 7.9 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	81.0 mm × Φ109.9 mm (3.19" × Φ4.33")
Net Weight	0.35 kg (0.77 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95%(RH), non-condensing

Model / SKU: IPC-HDBW2449E-S-IL-0280B-B. EAN: 6939554970924. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Poco stock

Receives in 5 days.

Dahua

Dahua IPC-HDW5659H-ASE-PV-0360B-PRO 6MP WizColor Fixed-focal Eyeball WizMind Network Camera

(0)

€394,87

Product Overview

The Dahua IPC-HDW5659H-ASE-PV-0360B-PRO combines a 3.6 mm fixed lens with 6MP WizColor imaging, dual microphones and a built-in speaker in an eyeball housing. Its 1/1.8" CMOS sensor captures 3072 (H) × 2048 (V) with 130 dB wide dynamic range. Night illumination is specified at Up to 60 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 1 TB.

Key Features

3072 (H) × 2048 (V) maximum image resolution with 1/1.8" CMOS sensor
3.6 mm fixed-focal lens; H: 93°; V: 50°; D: 111° field of view
Night coverage: Up to 60 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
Dual microphones, a built-in speaker, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0002Lux@F1.0(Color,30IRE) 0.0001Lux@F1.0(B/W,30IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3072 (H) × 2048 (V)
Lens Type	Fixed-focal
Focal Length	3.6 mm
Max. Aperture	F1.0
Field of View	H: 93°; V: 50°; D: 111°

Illumination and video

Illumination Distance	Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 3072 × 2048@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	130 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.1 W (12 VDC); 4.8 W (PoE) Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black/White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal
Product Dimensions	127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight	0.92 kg (2.03 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HDW5659H-ASE-PV-0360B-PRO. EAN: 6937552406360. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera

Dahua

Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera

(0)

€103,16

Product Overview

The Dahua SD2A500NB-GNY-A-PV is a 5MP network pan-and-tilt camera with Smart Dual Light, providing remotely adjustable viewing direction. Its 1/2.8" CMOS sensor captures 2560 (H) × 1920(V) with digital wide dynamic range. Night illumination is specified at 30 m (warm light); 30 m (IR). Human detection filters events by recognised human targets. The camera includes microSD recording up to 256 GB.

Key Features

2560 (H) × 1920(V) maximum image resolution with 1/2.8" CMOS sensor
4.0 mm lens; H: 80.4°; V: 58.1°; D: 104.8° field of view
Night coverage: 30 m (warm light); 30 m (IR)
Human target detection
SMD 3.0 Active Deterrence smart motion detection
MicroSD recording up to 256 GB
Power options: 12 VDC/1.5 A ± 10% PoE (802.3af); TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE);
Image Sensor	1/2.8" CMOS
Max. Resolution	2560 (H) × 1920(V)
Focal Length	4.0 mm
Max. Aperture	F1.6
Field of View	H: 80.4°; V: 58.1°; D: 104.8°

Illumination and video

Illumination Distance	30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);
Video Frame Rate	Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Video Compression	Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
WDR	DWDR
Noise Reduction	2D NR; 3D NR

Intelligent analytics

Human Detection	Yes
SMD	SMD 3.0 Active Deterrence

Connectivity and power

Audio Input	1 channel (built-in mic)
Audio Output	1 channel (built-in speaker)
Audio Compression	PCM；G.711a；G.711Mu；G.726；AAC；
Storage	Micro SD card (256 GB); FTP
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC/1.5 A ± 10% PoE (802.3af)
Power Consumption	Basic: 3.5 W; Max: 10 W (illuminator)
Interoperability	CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P

Physical and environmental

Colour	White
Operating Temperature	–30 °C to +55 °C (–22 °F to +131 °F)
Protection	TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof
Product Dimensions	140.5 mm × Φ111.0 mm (5.53" × Φ4.37")
Net Weight	0.5 kg (1.10 lb)
Certifications	CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Operating Humidity	≤95%

Model / SKU: SD2A500NB-GNY-A-PV. EAN: 6923172576934. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Dahua

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

(0)

€506,04

Product Overview

The Dahua SDT3E410-8P-MB-A-PV1 combines an 8MP panoramic channel with a 4MP PTZ channel and 10× optical zoom, bringing overview and adjustable detail views into one TiOC camera. Its Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS sensor captures Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) with Overview channel: DWDR Detail channel: 120 dB wide dynamic range. Night illumination is specified at Overview channel: 30 m (IR); 30 m (white light) Detail channel: 70 m ; 30 m (white light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; the camera provides smart motion detection. The camera includes microSD recording up to 512 GB.

Key Features

Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) maximum image resolution with Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS sensor
Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm lens
Night coverage: Overview channel: 30 m (IR); 30 m (white light) Detail channel: 70 m ; 30 m (white light)
Tripwire and intrusion detection with human/vehicle classification
Smart motion detection supported
MicroSD recording up to 512 GB
Power options: 12 VDC, 3 A ± 10% PoE+(802.3at); TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 1 s–1/30,000 s 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Optical Zoom	Overview channel: NA; Detail channel: 10×
Image Sensor	Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS
Max. Resolution	Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V)
Focal Length	Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm
Max. Aperture	Overview channel: F1.6; Detail channel: F1.6-F3.6
Field of View	Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°

Illumination and video

Illumination Distance	Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light)
Video Frame Rate	Overview channel: Main stream: 5376 × 1520 @(1–25/30 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
Video Compression	H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)
WDR	Overview channel: DWDR Detail channel: 120 dB
Noise Reduction	Overview channel: 2D NR; 3D NR Detail channel: 2D NR; 3D NR

Intelligent analytics

IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people)
SMD	Yes

Connectivity and power

Audio Input	1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output	1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm Input	1 (on-off value input: 0–5 VDC)
Alarm Output	1 channel
Audio Compression	Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail channel: NA
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Network Port	RJ-45 (100 Base-T)
Power Supply	12 VDC, 3 A ± 10% PoE+(802.3at)
Power Consumption	Basic: 12 W; Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ)
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P

Physical and environmental

Colour	White
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection
Product Dimensions	140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H)
Net Weight	2.17 kg (4.78 lb)
Certifications	CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471
Operating Humidity	≤95%

Model / SKU: SDT3E410-8P-MB-A-PV1. EAN: 6939554933479. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-HDW5859TM-ASE-IL-0280B-BLACK 8MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera

(0)

€409,10

Product Overview

The black Dahua IPC-HDW5859TM-ASE-IL-0280B-BLACK combines 8MP WizMind imaging with a 2.8 mm fixed lens and Smart Dual Light in an eyeball format. Its 1/1.8" CMOS sensor captures 3840 (H) × 2160 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR) Up to 50 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

3840 (H) × 2160 (V) maximum image resolution with 1/1.8" CMOS sensor
2.8 mm fixed-focal lens; H: 110°; V: 56°; D: 134° field of view
Night coverage: Up to 50 m (IR) Up to 50 m (Warm light)
Tripwire and intrusion detection with human/vehicle classification
SMD 4.0 smart motion detection
A built-in microphone, microSD recording up to 1 TB
Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.0008 lux@F1.6(Color, 30IRE) 0.0004 lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on)
Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Lens Type	Fixed-focal
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 110°; V: 56°; D: 134°

Illumination and video

Illumination Distance	Up to 50 m (164.04 ft) (IR) Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate	Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port	RJ-45 (10/100 Enhancement Base-T)
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption	Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Casing Material	Metal
Product Dimensions	105.5 mm × Φ122.0 mm (4.15" × Φ4.80")
Net Weight	530 g (1.17 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity	≤95% (RH), non-condensing

Model / SKU: IPC-HDW5859TM-ASE-IL-0280B-BLACK. EAN: 6937552408470. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

En stock

Receives in 5 days.

Dahua

Dahua IPC-EBW5641-AS 6MP IR Fisheye WizMind Network Camera

(0)

€266,81

Product Overview

The Dahua IPC-EBW5641-AS is a 6MP WizMind fisheye network camera with infrared illumination, offering a fisheye view from a single camera position. Its 1/2.5" CMOS sensor captures 2560 (H) × 2560 (V) with 120 dB wide dynamic range. Night illumination is specified at 1.68 mm: Up to 15 m (IR). Video analytics include tripwire, intrusion. The camera includes dual microphones, a built-in speaker, microSD recording up to 1 TB.

Key Features

2560 (H) × 2560 (V) maximum image resolution with 1/2.5" CMOS sensor
1.68 mm fixed-focal lens; 1.68 mm: H: 185°; V: 185°; D: 185° field of view
Night coverage: 1.68 mm: Up to 15 m (IR)
Tripwire and intrusion detection
Dual microphones, a built-in speaker, microSD recording up to 1 TB
Power options: 12 VDC, 1 A; PoE (802.3af); IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	0.006 lux@F2.0 (Color, 30 IRE) 0.0006 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor	1/2.5" CMOS
Max. Resolution	2560 (H) × 2560 (V)
Lens Type	Fixed-focal
Focal Length	1.68 mm
Max. Aperture	F2.0
Field of View	1.68 mm: H: 185°; V: 185°; D: 185°

Illumination and video

Illumination Distance	1.68 mm: Up to 15 m (49.21 ft) (IR)
Video Frame Rate	Max Resolution in O Mode by Default Main stream: 2560 × 2560@(1–25/30 fps) sub stream: 1440 × 1440@(1–25/30 fps) third stream: 1440 × 1440@(1–25/30 fps) Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); Resolution of 2 Split Windows in 2R Mode: Sub stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); Resolution of 4 Split Windows in 4R Mode: sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
WDR	120 dB
Noise Reduction	3D NR

Intelligent analytics

IVS (Perimeter Protection)	Tripwire, intrusion (the two functions support accurate detection of human)

Connectivity and power

Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	PCM; G.711a; G.711Mu; G.726
Storage	FTP; SFTP; Micro SD card (support max. 1TB); NAS
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC, 1 A; PoE (802.3af)
Power Consumption	Basic: 3 W (12 VDC); 4.4 W (PoE) Max (ICR switch + IR intensity): 7.6 W (12 VDC); 9.7 W (PoE)
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M)

Physical and environmental

Colour	White
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67; IK10
Casing Material	Metal + plastic
Product Dimensions	Φ122 mm × 53.3 mm (Φ4.80" × 2.10")
Net Weight	0.46 kg (1.01 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity	≤95% (RH), non-condensing
Installation	Ceiling mount; wall mount; ground mount

Model / SKU: IPC-EBW5641-AS. EAN: 6939554929922. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Poco stock

Receives in 5 days.

Dahua DH-SD4A425DB-HNY 4MP 25x Starlight IR WizSense Network PTZ Camera

Dahua

Dahua DH-SD4A425DB-HNY 4MP 25x Starlight IR WizSense Network PTZ Camera

(0)

€528,27

Product Overview

The Dahua DH-SD4A425DB-HNY is a 4MP Starlight network PTZ camera with 25× optical zoom and infrared illumination for remotely adjustable surveillance. Its 1/2.8" CMOS sensor captures 2560 × 1440 with 120 dB wide dynamic range. Night illumination is specified at 100 m (IR). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 3.0 provides smart motion detection. The camera includes microSD recording up to 512 GB.

Key Features

2560 × 1440 maximum image resolution with 1/2.8" CMOS sensor
5 mm–125 mm lens; H: 51.9°–3.0° V: 39.7°–2.2° D: 63.1°–3.7° field of view
Night coverage: 100 m (IR)
Tripwire and intrusion detection with human/vehicle classification
SMD 3.0 smart motion detection
MicroSD recording up to 512 GB
Power options: 12 VDC（± 10% ）,2 A (included);PoE+ (802.3at); IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination	Color: 0.005lux@F1.6 B/W: 0.0005lux@F1.6 0Lux (IR on)
Optical Zoom	25×
Image Sensor	1/2.8" CMOS
Max. Resolution	2560 × 1440
Focal Length	5 mm–125 mm
Max. Aperture	F1.6–F3.6
Field of View	H: 51.9°–3.0° V: 39.7°–2.2° D: 63.1°–3.7°

Illumination and video

Illumination Distance	100 m (328.08 ft) (IR)
Video Frame Rate	Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 720p/CIF @(1–25/30 fps)
Video Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
WDR	120 dB
Noise Reduction	2D NR; 3D NR

Intelligent analytics

IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
SMD	SMD 3.0

Connectivity and power

Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Alarm Input	2 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output	1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Audio Compression	G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC（± 10% ）,2 A (included);PoE+ (802.3at)
Power Consumption	Basic: 9.5 W Max(illuminator on + fan on + PTZ): 21.5 W
Interoperability	CGI; SDK; ONVIF (Profile S & Profile G & Profile T & Profile M); P2P

Physical and environmental

Colour	White
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Protection	IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
Product Dimensions	170.4 mm × Φ171.1 mm (6.71" × Φ6.74")
Net Weight	2.5 kg (5.51 lb)
Certifications	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1
Operating Humidity	≤ 95%

Model / SKU: DH-SD4A425DB-HNY. EAN: 6923169706207. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

En stock

Receives in 5 days.

Explorar colecciones relacionadas
