Dahua

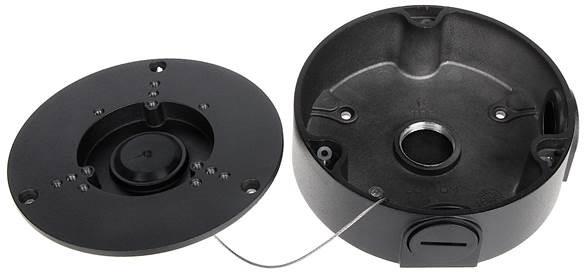

Dahua PFA130-E-BLACK Water-proof Junction Box
SKU: PFA130-E-BLACK
€12,45
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 29 October and 31 October.
Dahua PFA130-E-BLACK Water-proof Junction Box
€12,45
€12,45
Product Overview
The Dahua PFA130-E-BLACK is a Water-proof Junction Box in black. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The Φ124.3 mm × 41.0 mm dimensions define the mounting footprint; net weight is 0.34 kg. The cable connection uses a G3/4 thread.
Key Features
- Casing Material: Aluminum alloy
- Product Dimensions: Φ124.3 mm × 41.0 mm
- Load Bearing: 3.0 kg
- Screw Thread Type: G3/4
- Net Weight: 0.34 kg
- Operating Temperature: –40 °C to +60 °C
- Installation: Junction mount
Technical Specifications
Finish and environment
| Colour | Black |
|---|---|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP66 |
| Operating Humidity | <90% (RH) |
Mounting and construction
| Screw Thread Type | G3/4 |
|---|---|
| Casing Material | Aluminum alloy |
| Load Bearing | 3.0 kg (6.61 lb) |
| Installation | Junction mount |
Dimensions and weight
| Product Dimensions | Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61") |
|---|---|
| Net Weight | 0.34 kg (0.75 lb) |
Model / SKU: PFA130-E-BLACK. EAN: 6939554997235. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
