CCTV Accessories

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

Dahua

(0)

€13,34

Product Overview

The Dahua PFB2203W-B is a Wall Mount Bracket in black. Its construction uses SGCC; Aluminum alloy and supports a specified load of 1.0 kg. The 162.0 mm × 129.4 mm × 80.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.48 kg.

Key Features

Casing Material: SGCC; Aluminum alloy
Product Dimensions: 162.0 mm × 129.4 mm × 80.0 mm (L × W × H)
Load Bearing: 1.0 kg
Net Weight: 0.48 kg
Operating Temperature: –40 °C to +60 °C
Installation: Wall mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Casing Material	SGCC; Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Wall mount

Dimensions and weight

Product Dimensions	162.0 mm × 129.4 mm × 80.0 mm (6.38" × 5.09" × 3.15") (L × W × H)
Net Weight	0.48 kg (1.06 lb)

Model / SKU: PFB2203W-B. EAN: 6939554981821. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFM920I-5EUN 305m U/UTP sCAT5E Network cable (White, CPR Eca)

(0)

€139,54

Product Overview

The Dahua PFM920I-5EUN is a 305m U/UTP sCAT5E Network cable (White, CPR Eca). The conductor is Oxygen free copper (99.97% purity) with a 25AWG gauge. The PVC sheath surrounds the cable, supplied in 305.0 m± 2 m lengths. Characteristic impedance is 100 Ω ± 15 Ω; attenuation is 24.2 dB/100 m@100 MHz.

Key Features

Cable Length: 305.0 m± 2 m
Conductor — Material: Oxygen free copper (99.97% purity)
American Wire Gauge: 25AWG
Sheath Material: PVC
Characteristic Impedance: 100 Ω ± 15 Ω
Max. Attenuation: 24.2 dB/100 m@100 MHz
Installation Bending Radius: >8 times of outer cable diameter

Technical Specifications

Cable construction

Insulating Material	HDPE
Conductor — Material	Oxygen free copper (99.97% purity)
Rip Cord — Material	Polyester
Sheath Material	PVC
Sheath Diameter	4.7 mm ± 0.4 mm (0.19" ± 0.02")
American Wire Gauge	25AWG
Conductor Structure	0.45 mm ± 0.01 mm (0.02" ± 0.0004")

Installation and packaging

Installation Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Installation Bending Radius	>8 times of outer cable diameter
Vertical Flame Test	Comply with IEC 60332-1-2
Operating Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Net Weight	8 kg ± 0.6 kg (17.64 lb ± 1.32 lb)
Cable Length	305.0 m± 2 m (1,000.66 ft ± 6.56 ft)
Certifications	CPR Eca

Electrical and transmission

Characteristic Impedance	100 Ω ± 15 Ω
Max. Attenuation	24.2 dB/100 m@100 MHz

Model / SKU: PFM920I-5EUN. EAN: 6939554931185. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFM920I-6UN-C UTP CAT6 Cable

(0)

€208,57

Product Overview

The Dahua PFM920I-6UN-C is a UTP CAT6 Cable. The conductor is Oxygen free copper (99.97% purity). The PVC sheath surrounds the cable, supplied in 305.0 m ± 1.5 m lengths. Characteristic impedance is 100 ± 15Ω; attenuation is 34.8 dB/100 m@250 MHz.

Key Features

Cable Length: 305.0 m ± 1.5 m
Conductor — Material: Oxygen free copper (99.97% purity)
Sheath — Material: PVC
Characteristic Impedance: 100 ± 15Ω
Max. Attenuation: 34.8 dB/100 m@250 MHz
Installation Bending Radius: >8 times of outer cable diameter
Operating Temperature: –20°C to +60°C

Technical Specifications

Cable construction

Colour	White
Conductor — Material	Oxygen free copper (99.97% purity)
Insulation — Material	HDPE
Separator — Material	PE
Rip Cord — Material	Polyester
Sheath — Material	PVC

Installation and packaging

Installation Temperature	0°C to +50°C (32°F to 122°F)
Installation Bending Radius	>8 times of outer cable diameter
Operating Temperature	–20°C to +60°C (–4°F to 140°F)
Net Weight	≥10.5 kg (23.15 lb)
Cable Length	305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Certification	CPR Eca

Electrical and transmission

Characteristic Impedance	100 ± 15Ω
Max. Attenuation	34.8 dB/100 m@250 MHz

Model / SKU: PFM920I-6UN-C. EAN: 6939554998560. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFM920-6UN 305m Outdoor U/UTP CAT6 Network Cable (Black, PE sheath)

(0)

€201,37

Product Overview

The Dahua PFM920-6UN is a 305m Outdoor U/UTP CAT6 Network Cable (Black, PE sheath). The conductor is Oxygen free copper (99.97% purity) with a 24AWG gauge. The MDPE sheath surrounds the cable, supplied in 305.0 m± 2 m lengths. Characteristic impedance is 100 Ω ± 15 Ω; attenuation is 34.8 dB/100 m@250 MHz.

Key Features

Cable Length: 305.0 m± 2 m
Conductor — Material: Oxygen free copper (99.97% purity)
American Wire Gauge: 24AWG
Sheath Material: MDPE
Characteristic Impedance: 100 Ω ± 15 Ω
Max. Attenuation: 34.8 dB/100 m@250 MHz
Installation Bending Radius: >8 times of outer cable diameter

Technical Specifications

Cable construction

Insulating Material	HDPE
Conductor — Material	Oxygen free copper (99.97% purity)
Rip Cord — Material	Polyester
Separator — Material	PE
Inner Sheath — Material	PVC
Sheath Material	MDPE
Sheath Diameter	6.8 mm ± 0.4 mm (0.27" ± 0.02")
American Wire Gauge	24AWG
Conductor Structure	0.53 mm ± 0.02 mm (0.02" ± 0.0008")

Installation and packaging

Installation Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Installation Bending Radius	>8 times of outer cable diameter
Vertical Flame Test	Comply with IEC 60332-1-2
Operating Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Net Weight	13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb)
Cable Length	305.0 m± 2 m (1,000.66 ft ± 6.56 ft)

Electrical and transmission

Characteristic Impedance	100 Ω ± 15 Ω
Max. Attenuation	34.8 dB/100 m@250 MHz

Model / SKU: PFM920-6UN. EAN: 6939554924507. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA136-BLACK Junction Box

(0)

€11,56

Product Overview

The Dahua PFA136-BLACK is a Junction Box in black. Its construction uses Aluminum alloy and supports a specified load of 1.0 kg. The Φ114.8 mm × 32.0 mm dimensions define the mounting footprint; net weight is 0.19 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ114.8 mm × 32.0 mm
Load Bearing: 1.0 kg
Screw Thread Type: G1/2
Net Weight: 0.19 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ114.8 mm × 32.0 mm (Φ4.52" × 1.26")
Net Weight	0.19 kg (0.42 lb)

Model / SKU: PFA136-BLACK. EAN: 6939554998522. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua PFA139 Junction Box CCTV Accessory

(0)

€9,78

Product Overview

The Dahua PFA139 is a Junction Box CCTV Accessory in white. Its construction uses Aluminum alloy. The Φ109.9 mm × 27.0 mm dimensions define the mounting footprint; net weight is 0.17 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ109.9 mm × 27.0 mm
Screw Thread Type: G1/2
Net Weight: 0.17 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ109.9 mm × 27.0 mm (Φ4.33" × 1.06")
Net Weight	0.17 kg (0.37 lb)

Model / SKU: PFA139. EAN: 6939554903557. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA12A Plastic Junction Box

(0)

€3,56

Product Overview

The Dahua PFA12A is a Plastic Junction Box. Its construction uses PP.

Key Features

Casing Material: PP
Operating Temperature: -40℃ ~+60℃(-40℉~+140℉)
Installation: Wall mount

Technical Specifications

Finish and environment

Operating Temperature	-40℃ ~+60℃(-40℉~+140℉)

Mounting and construction

Casing Material	PP
Installation	Wall mount

Dimensions and weight

Weight	0.1kg (0.22lb)

Model / SKU: PFA12A. EAN: 6939554999062. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFB206W-B Wall Mount Bracket

(0)

€38,24

Product Overview

The Dahua PFB206W-B is a Wall Mount Bracket in black. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The 222.0 mm × 160.7 mm × 144.4 mm (L × W × H) dimensions define the mounting footprint; net weight is 1.1 kg. The cable connection uses a G 3/4 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: 222.0 mm × 160.7 mm × 144.4 mm (L × W × H)
Load Bearing: 3.0 kg
Screw Thread Type: G 3/4
Net Weight: 1.1 kg
Operating Temperature: –40 °C to +60 °C
Installation: Wall mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G 3/4
Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)
Installation	Wall mount

Dimensions and weight

Product Dimensions	222.0 mm × 160.7 mm × 144.4 mm (8.66" × 6.33" × 5.68") (L × W × H)
Net Weight	1.1 kg (2.42 lb)

Model / SKU: PFB206W-B. EAN: 6923172553126. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua PFB211W-B Wall Mount Bracket

(0)

€30,24

Product Overview

The Dahua PFB211W-B is a Wall Mount Bracket in black. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The 235.4 mm × 180.3 mm × 84.2 mm (L × W × H) dimensions define the mounting footprint.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: 235.4 mm × 180.3 mm × 84.2 mm (L × W × H)
Load Bearing: 3.0 kg
Operating Temperature: –40°C to +60°C

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40°C to +60°C (–40°F to +140°F)
Operating Humidity	<90% (RH)

Mounting and construction

Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)

Dimensions and weight

Product Dimensions	235.4 mm × 180.3 mm × 84.2 mm (9.27" × 7.09" × 3.31") (L × W × H)
Weight	0.97 kg (2.14 lb)

Model / SKU: PFB211W-B. EAN: 6923172557940. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA121 Water-proof Junction Box

(0)

€16,90

Product Overview

The Dahua PFA121 is a Water-proof Junction Box. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The 134.0 mm × 133.9 mm × 56.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.52 kg. The cable connection uses a G3/4 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: 134.0 mm × 133.9 mm × 56.0 mm (L × W × H)
Load Bearing: 3.0 kg
Screw Thread Type: G3/4
Net Weight: 0.52 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Mounting and construction

Screw Thread Type	G3/4
Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)
Installation	Junction mount

Finish and environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP66
Operating Humidity	<90% (RH)

Dimensions and weight

Product Dimensions	134.0 mm × 133.9 mm × 56.0 mm (5.28" × 5.27" × 2.20") (L × W × H)
Net Weight	0.52 kg (1.15 lb)

Model / SKU: PFA121. EAN: 6939554930720. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA13G Junction Box

(0)

€11,56

Product Overview

The Dahua PFA13G is a Junction Box in white. Its construction uses Aluminum alloy and supports a specified load of 2.0 kg.

Key Features

Casing Material: Aluminum alloy
Load Bearing: 2.0 kg
Operating Temperature: –40°C to +60°C

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40°C to +60°C (–40°F to +140°F)
Operating Humidity	<90% (RH)

Mounting and construction

Casing Material	Aluminum alloy
Load Bearing	2.0 kg (4.4 lb)

Dimensions and weight

Weight	0.33 kg (0.73 lb)

Model / SKU: PFA13G. EAN: 6939554986253. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA137 Junction Box CCTV Accessory

(0)

€11,56

Product Overview

The Dahua PFA137 is a Junction Box CCTV Accessory. Its construction uses Aluminum alloy. The Φ123.6 mm × 34.2 mm dimensions define the mounting footprint; net weight is 0.23 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ123.6 mm × 34.2 mm
Screw Thread Type: G1/2
Net Weight: 0.23 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Installation	Junction mount

Finish and environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Dimensions and weight

Product Dimensions	Φ123.6 mm × 34.2 mm (Φ4.87" × 1.35")
Net Weight	0.23 kg (0.51 lb)

Model / SKU: PFA137. EAN: 6939554903533. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA13A-E Junction Box

(0)

€11,56

Product Overview

The Dahua PFA13A-E is a Junction Box in white. Its construction uses Aluminum and supports a specified load of 3.0 kg. The Diameter 96.7 mm × 37.2 mm dimensions define the mounting footprint; net weight is 0.17 kg. The cable connection uses a G3/4 inch thread.

Key Features

Casing Material: Aluminum
Material: Aluminum
Product Dimensions: Diameter 96.7 mm × 37.2 mm
Load Bearing: 3.0 kg
Pipe Thread: G3/4 inch
Net Weight: 0.17 kg
Operating Temperature: −40°C to +60°C

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	−40°C to +60°C
Operating Humidity	0–90% RH

Mounting and construction

Casing Material	Aluminum
Load Bearing	3.0 kg
Material	Aluminum
Pipe Thread	G3/4 inch

Dimensions and weight

Product Dimensions	Diameter 96.7 mm × 37.2 mm
Net Weight	0.17 kg

Model / SKU: PFA13A-E. EAN: 6939554930911. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA134-BLACK Junction Box Universal CCTV Accessory

(0)

€9,78

Product Overview

The Dahua PFA134-BLACK is a Junction Box Universal CCTV Accessory in black. Its construction uses Aluminum alloy, SECC and supports a specified load of 1.0 kg. The Φ94.3 mm × 36.1 mm dimensions define the mounting footprint; net weight is 0.23 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy, SECC
Product Dimensions: Φ94.3 mm × 36.1 mm
Load Bearing: 1.0 kg
Screw Thread Type: G1/2
Net Weight: 0.23 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy, SECC
Load Bearing	1.0 kg (2.20 lb)
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ94.3 mm × 36.1 mm (Φ3.71" × 1.42")
Net Weight	0.23 kg (0.51 lb)

Model / SKU: PFA134-BLACK. EAN: 6939554998508. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua PFA137-B Junction Box

(0)

€11,56

Product Overview

The Dahua PFA137-B is a Junction Box in black. Its construction uses Aluminum alloy. The Φ123.6 mm × 34.2 mm dimensions define the mounting footprint; net weight is 0.23 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ123.6 mm × 34.2 mm
Screw Thread Type: G1/2
Net Weight: 0.23 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ123.6 mm × 34.2 mm (Φ4.87" × 1.35")
Net Weight	0.23 kg (0.51 lb)

Model / SKU: PFA137-B. EAN: 6939554956263. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFB2204W Wall Mount Bracket

(0)

€12,45

Product Overview

The Dahua PFB2204W is a Wall Mount Bracket in white. Its construction uses SGCC; Aluminum alloy and supports a specified load of 1.0 kg. The 162.0 mm × 129.4 mm × 80.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.49 kg.

Key Features

Casing Material: SGCC; Aluminum alloy
Product Dimensions: 162.0 mm × 129.4 mm × 80.0 mm (L × W × H)
Load Bearing: 1.0 kg
Net Weight: 0.49 kg
Operating Temperature: –40 °C to +60 °C
Installation: Wall mount

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Casing Material	SGCC; Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Wall mount

Dimensions and weight

Product Dimensions	162.0 mm × 129.4 mm × 80.0 mm (6.38" × 5.09" × 3.15") (L × W × H)
Net Weight	0.49 kg (1.08 lb)

Model / SKU: PFB2204W. EAN: 6939554981838. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA136 Junction Box

(0)

€11,56

Product Overview

The Dahua PFA136 is a Junction Box in white. Its construction uses Aluminum alloy and supports a specified load of 1.0 kg. The Φ114.8 mm × 32.0 mm dimensions define the mounting footprint; net weight is 0.19 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ114.8 mm × 32.0 mm
Load Bearing: 1.0 kg
Screw Thread Type: G1/2
Net Weight: 0.19 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ114.8 mm × 32.0 mm (Φ4.52" × 1.26")
Net Weight	0.19 kg (0.42 lb)

Model / SKU: PFA136. EAN: 6939554903526. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA134 Junction Box

(0)

€11,56

Product Overview

The Dahua PFA134 is a Junction Box. Its construction uses Aluminum alloy, SECC and supports a specified load of 1.0 kg. The Φ94.3 mm × 36.1 mm dimensions define the mounting footprint; net weight is 0.23 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy, SECC
Product Dimensions: Φ94.3 mm × 36.1 mm
Load Bearing: 1.0 kg
Screw Thread Type: G1/2
Net Weight: 0.23 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy, SECC
Load Bearing	1.0 kg (2.20 lb)
Installation	Junction mount

Finish and environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Dimensions and weight

Product Dimensions	Φ94.3 mm × 36.1 mm (Φ3.71" × 1.42")
Net Weight	0.23 kg (0.51 lb)

Model / SKU: PFA134. EAN: 6939554903502. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFB2203W Wall Mount Bracket

(0)

€10,67

Product Overview

The Dahua PFB2203W is a Wall Mount Bracket in white. Its construction uses SGCC; Aluminum alloy and supports a specified load of 1.0 kg. The 162.0 mm × 129.4 mm × 80.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.48 kg.

Key Features

Casing Material: SGCC; Aluminum alloy
Product Dimensions: 162.0 mm × 129.4 mm × 80.0 mm (L × W × H)
Load Bearing: 1.0 kg
Net Weight: 0.48 kg
Operating Temperature: –40 °C to +60 °C
Installation: Wall mount

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)

Mounting and construction

Casing Material	SGCC; Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Wall mount

Dimensions and weight

Product Dimensions	162.0 mm × 129.4 mm × 80.0 mm (6.38" × 5.09" × 3.15") (L × W × H)
Net Weight	0.48 kg (1.06 lb)

Model / SKU: PFB2203W. EAN: 6939554981814. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA130-E-BLACK Water-proof Junction Box

(0)

€12,45

Product Overview

The Dahua PFA130-E-BLACK is a Water-proof Junction Box in black. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The Φ124.3 mm × 41.0 mm dimensions define the mounting footprint; net weight is 0.34 kg. The cable connection uses a G3/4 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ124.3 mm × 41.0 mm
Load Bearing: 3.0 kg
Screw Thread Type: G3/4
Net Weight: 0.34 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	Black
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP66
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G3/4
Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61")
Net Weight	0.34 kg (0.75 lb)

Model / SKU: PFA130-E-BLACK. EAN: 6939554997235. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua PFA130-E-1 Water-proof Junction Box

(0)

€12,45

Product Overview

The Dahua PFA130-E-1 is a Water-proof Junction Box in white. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The Φ124.3 mm × 41.0 mm dimensions define the mounting footprint; net weight is 0.34 kg. The cable connection uses a G3/4 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ124.3 mm × 41.0 mm
Load Bearing: 3.0 kg
Screw Thread Type: G3/4
Net Weight: 0.34 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Finish and environment

Colour	White
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP66
Operating Humidity	<90% (RH)

Mounting and construction

Screw Thread Type	G3/4
Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)
Installation	Junction mount

Dimensions and weight

Product Dimensions	Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61")
Net Weight	0.34 kg (0.75 lb)

Model / SKU: PFA130-E-1. EAN: 6939554930829. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

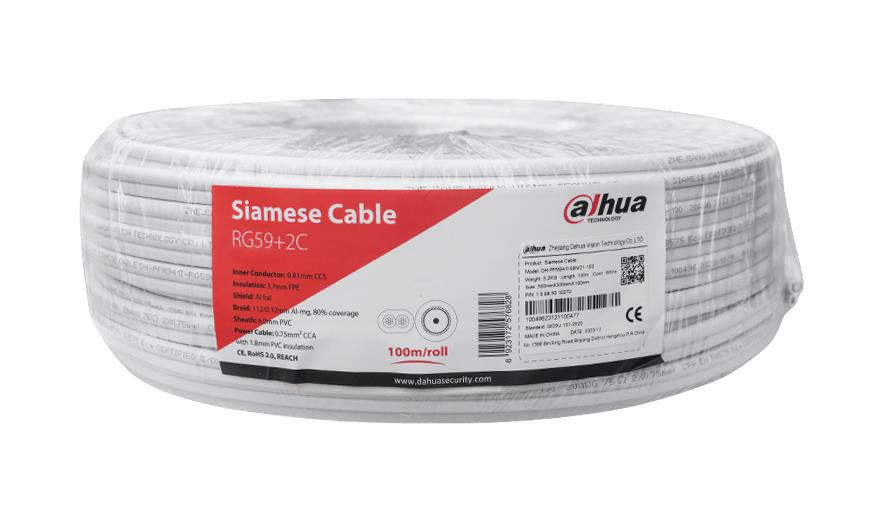

Dahua PFM941I-RG59N/21-100-W RG59 Coaxial Cable with Power 100m White

(0)

€33,86

Product Overview

The Dahua PFM941I-RG59N/21-100-W is a RG59 Coaxial Cable with Power 100m White. Only the supplier-confirmed attributes below are listed for this exact variant.

Key Features

Colour: White

Technical Specifications

Cable construction

Colour	White

Model / SKU: PFM941I-RG59N/21-100-W. EAN: 6923172576828. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Verified manufacturer documentation is not yet available for this exact variant.

Low in stock

Receives in 5 days.

Dahua

Dahua PFM923I-6FN-CD-WHITE 305m F/UTP CAT6 Network Cable (White,LSZH,CPR Dca)

(0)

€204,34

Product Overview

The Dahua PFM923I-6FN-CD-WHITE is a 305m F/UTP CAT6 Network Cable (White,LSZH,CPR Dca). The conductor is Oxygen free copper (99.97% purity) with a 24AWG gauge. The LSZH sheath surrounds the cable, supplied in 305.0 m± 2 m lengths. Characteristic impedance is 100 Ω ± 15 Ω; attenuation is 34.8 dB/100 m@250 MHz.

Key Features

Cable Length: 305.0 m± 2 m
Conductor — Material: Oxygen free copper (99.97% purity)
American Wire Gauge: 24AWG
Sheath Material: LSZH
Characteristic Impedance: 100 Ω ± 15 Ω
Max. Attenuation: 34.8 dB/100 m@250 MHz
Installation Bending Radius: >8 times of outer cable diameter

Technical Specifications

Cable construction

Insulating Material	HDPE
Conductor — Material	Oxygen free copper (99.97% purity)
Rip Cord — Material	Polyester
Drain Wire — Material	Tin-plated copper
Separator — Material	PE
Outer Shield — Material	Composite aluminum foil (Conductive side facing inward)
Sheath Material	LSZH
Sheath Diameter	6.4 mm ± 0.3 mm (0.252" ± 0.012")
American Wire Gauge	24AWG
Conductor Structure	0.53 mm ± 0.01 mm (0.021" ± 0.0004")

Installation and packaging

Installation Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Installation Bending Radius	>8 times of outer cable diameter
Vertical Flame Test	EN 50399; EN 60332-1-2; EN 61034-2; EN 60754-2
Operating Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Net Weight	12.00 kg ± 0.50 kg (26.46 lb ± 1.10 lb)
Cable Length	305.0 m± 2 m (1,000.66 ft ± 6.56 ft)
Certifications	CPR Dca Flame-retardant Standard

Electrical and transmission

Characteristic Impedance	100 Ω ± 15 Ω
Max. Attenuation	34.8 dB/100 m@250 MHz

Model / SKU: PFM923I-6FN-CD-WHITE. EAN: 6939554981715. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua

Dahua PFM920I-5EU-C 305m U/UTP CAT5E Network Cable (White, CPR Eca)

(0)

€169,82

Product Overview

The Dahua PFM920I-5EU-C is a 305m U/UTP CAT5E Network Cable (White, CPR Eca). The conductor is Oxygen free copper (99.97% purity) with a 24AWG gauge. The PVC sheath surrounds the cable, supplied in 305.0 m± 2 m lengths. Characteristic impedance is 100 Ω ± 15 Ω; attenuation is 22 dB/100 m@100 MHz.

Key Features

Cable Length: 305.0 m± 2 m
Conductor — Material: Oxygen free copper (99.97% purity)
American Wire Gauge: 24AWG
Sheath Material: PVC
Characteristic Impedance: 100 Ω ± 15 Ω
Max. Attenuation: 22 dB/100 m@100 MHz
Installation Bending Radius: >8 times of outer cable diameter

Technical Specifications

Cable construction

Colour	White
Insulating Material	HDPE
Conductor — Material	Oxygen free copper (99.97% purity)
Rip Cord — Material	Polyester
Sheath Material	PVC
Sheath Diameter	5.1 mm ± 0.30 mm (0.20" ± 0.01")
American Wire Gauge	24AWG
Conductor Structure	0.5 mm ± 0.01 mm (0.02" ± 0.0004")

Installation and packaging

Installation Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Installation Bending Radius	>8 times of outer cable diameter
Vertical Flame Test	Comply with IEC 60332-1-2
Operating Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Net Weight	8.9 kg ± 0.4 kg (19.62 lb ± 0.88 lb)
Cable Length	305.0 m± 2 m (1,000.66 ft ± 6.56 ft)
Certifications	CPR Eca

Electrical and transmission

Characteristic Impedance	100 Ω ± 15 Ω
Max. Attenuation	22 dB/100 m@100 MHz

Model / SKU: PFM920I-5EU-C. EAN: 6923172562784. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA122 Water-proof Junction Box

(0)

€23,12

Product Overview

The Dahua PFA122 is a Water-proof Junction Box. Its construction uses Aluminum alloy and supports a specified load of 3.0 kg. The 134.0 mm × 133.9 mm × 56.0 mm (L × W × H) dimensions define the mounting footprint; net weight is 0.52 kg. The cable connection uses a G3/4 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: 134.0 mm × 133.9 mm × 56.0 mm (L × W × H)
Load Bearing: 3.0 kg
Screw Thread Type: G3/4
Net Weight: 0.52 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Mounting and construction

Screw Thread Type	G3/4
Casing Material	Aluminum alloy
Load Bearing	3.0 kg (6.61 lb)
Installation	Junction mount

Finish and environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP66
Operating Humidity	<90% (RH)

Dimensions and weight

Product Dimensions	134.0 mm × 133.9 mm × 56.0 mm (5.28" × 5.27" × 2.20") (L × W × H)
Net Weight	0.52 kg (1.15 lb)

Model / SKU: PFA122. EAN: 6939554930836. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua PFA135 Junction Box

(0)

€6,23

Product Overview

The Dahua PFA135 is a Junction Box. Its construction uses Aluminum alloy and supports a specified load of 1.0 kg. The Φ94.3 mm × 34.1 mm dimensions define the mounting footprint; net weight is 0.15 kg. The cable connection uses a G1/2 thread.

Key Features

Casing Material: Aluminum alloy
Product Dimensions: Φ94.3 mm × 34.1 mm
Load Bearing: 1.0 kg
Screw Thread Type: G1/2
Net Weight: 0.15 kg
Operating Temperature: –40 °C to +60 °C
Installation: Junction mount

Technical Specifications

Mounting and construction

Screw Thread Type	G1/2
Casing Material	Aluminum alloy
Load Bearing	1.0 kg (2.20 lb)
Installation	Junction mount

Finish and environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<90% (RH)

Dimensions and weight

Product Dimensions	Φ94.3 mm × 34.1 mm (Φ3.71" × 1.34")
Net Weight	0.15 kg (0.33 lb)

Model / SKU: PFA135. EAN: 6939554903519. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Explore Related Collections
