Dahua

Dahua CS4005-4GT-36 5-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

(0)

€48,02

Product Overview

The Dahua CS4005-4GT-36 is a 5-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 10 Gbps with a packet forwarding rate of 7.4 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 10 Gbps
Packet forwarding: 7.4 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4005-4GT-36. EAN: 6939554922268. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua CHS4210-8GT-110 10-Port Cloud Managed Hardened Gigabit Switch with 8-Port PoE

(0)

€132,51

Product Overview

The Dahua CHS4210-8GT-110 is a 10-Port Cloud Managed Hardened Gigabit Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink). Its PoE allocation is port 3-8≤30 W, port 1–2≤90 W, total≤110 W. The switching fabric is rated at 20 Gbps with a packet forwarding rate of 14.88 Mpps. Installation options are din rail mount; desktop mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
PoE power allocation: Port 3-8≤30 W, port 1–2≤90 W, total≤110 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 20 Gbps
Packet forwarding: 14.88 Mpps
MAC address table: 8K
Power input: External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10: 2 × SFP 100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 3-8≤30 W, port 1–2≤90 W, total≤110 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A
Power Consumption	Idling: 2 W Full load: 116.6 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Protection	IP30; IK06
Casing Material	Iron
Product Dimensions	171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)
Net Weight	0.66 kg (1.46 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	DIN rail mount; desktop mount

Model / SKU: CHS4210-8GT-110. EAN: 6937552482982. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua CS4006-4GT-36 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

(0)

€53,36

Product Overview

The Dahua CS4006-4GT-36 is a 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 12 Gbps with a packet forwarding rate of 8.9 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 12 Gbps
Packet forwarding: 8.9 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	12 Gbps
Packet Forwarding Rate	8.9 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4006-4GT-36. EAN: 6939554922244. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua CHS4206-4ET-90 6-Port Cloud Managed Hardened Switch with 4-Port PoE

(0)

€79,15

Product Overview

The Dahua CHS4206-4ET-90 is a 6-Port Cloud Managed Hardened Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; din-rail mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink)
PoE power allocation: Port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 8K
Power input: External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1 ≤90 W, Port 2-4 ≤30 W, total ≤90 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69 A
Power Consumption	Idling: 1.3 W Full load: 92.7 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Protection	IP30; IK06
Casing Material	Iron
Product Dimensions	154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)
Net Weight	0.32 kg (0.71 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; DIN-rail mount

Model / SKU: CHS4206-4ET-90. EAN: 6939554903465. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed Desktop Switch with 4-Port PoE

Dahua

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed Desktop Switch with 4-Port PoE

(0)

€44,47

Product Overview

The Dahua CS4006-4ET2GT-36 is a 6-Port Cloud Managed Desktop Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4006-4ET2GT-36. EAN: 6939554912986. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua S3016-16GT 16-Port Unmanaged Gigabit Switch

(0)

€61,37

Product Overview

The Dahua S3016-16GT is a 16-Port Unmanaged Gigabit Switch. Connections comprise Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink). The switching fabric is rated at 32 Gbps with a packet forwarding rate of 23.808 Mpps. Installation options are desktop mount; wall mount; rack mount.

Key Features

Network connections: Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)
Switching fabric: 32 Gbps
Packet forwarding: 23.808 Mpps
MAC address table: 16K
Power input: Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
Operating range: –10 °C to +55 °C
Mounting options: Desktop mount; wall mount; rack mount

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet Metal
Product Dimensions	294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)
Net Weight	0.74 kg (1.63 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount; rack mount

Network interfaces

Description of Function Slots	Port 1-14: 14 × RJ-45 10/100/1000 Mbps; Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)

Switching performance

Switching Capacity	32 Gbps
Packet Forwarding Rate	23.808 Mpps
MAC Table Size	16K

PoE and power

Power Supply	Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A
Power Consumption	Idling: 2.2 W; Full load: 7.8 W

Model / SKU: S3016-16GT. EAN: 6939554932632. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua CS4009-8ET1GT-60 9-Port Cloud Managed Desktop Switch with 8-Port PoE

(0)

€53,36

Product Overview

The Dahua CS4009-8ET1GT-60 is a 9-Port Cloud Managed Desktop Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 2-8≤30 W, port 1≤60 W, total≤60 W. The switching fabric is rated at 3.6 Gbps with a packet forwarding rate of 2.68 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 2-8≤30 W, port 1≤60 W, total≤60 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE
Switching fabric: 3.6 Gbps
Packet forwarding: 2.68 Mpps
MAC address table: 8K
Power input: External Power Adapter (53 V, 1.22 A)

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 2-8≤30 W, port 1≤60 W, total≤60 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE
Power Supply	External Power Adapter (53 V, 1.22 A)
Power Consumption	Idling: 4 W Full load: 63 W

Switching performance

Switching Capacity	3.6 Gbps
Packet Forwarding Rate	2.68 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Net Weight	0.36 kg (0.79 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4009-8ET1GT-60. EAN: 6937552421424. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch with 16-Port PoE

Dahua

Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch with 16-Port PoE

(0)

€140,52

Product Overview

The Dahua CS4218-16ET-135 is an 18-Port Cloud Managed Desktop Switch with 16-Port PoE. Connections comprise Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W. The switching fabric is rated at 7.2 Gbps with a packet forwarding rate of 5.36 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)
Link speed: 10/100 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 7.2 Gbps
Packet forwarding: 5.36 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.23 kg (4.91 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	16
Ethernet Port Speed	10/100 Mbps
Description of Function Slots	Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 3 A
Power Consumption	Idling: ≤6 W ; Full load: 154 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Table Size	8K

Model / SKU: CS4218-16ET-135. EAN: 6923172571236. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua CS4226-24ET-375 26-Port Cloud Managed Desktop Switch with 24-Port PoE

Dahua

Dahua CS4226-24ET-375 26-Port Cloud Managed Desktop Switch with 24-Port PoE

(0)

€221,45

Product Overview

The Dahua CS4226-24ET-375 is a 26-Port Cloud Managed Desktop Switch with 24-Port PoE. Connections comprise Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W. The switching fabric is rated at 8.8 Gbps with a packet forwarding rate of 6.55 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)
Link speed: 10/100 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 8.8 Gbps
Packet forwarding: 6.55 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.62 kg (5.76 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	24
Ethernet Port Speed	10/100 Mbps
Description of Function Slots	Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 7 A
Power Consumption	Idling: ≤8.5 W ; Full load: 400 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.55 Mpps
MAC Table Size	8K

Model / SKU: CS4226-24ET-375. EAN: 6923172571274. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

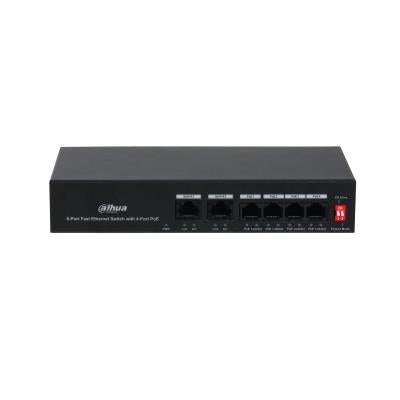

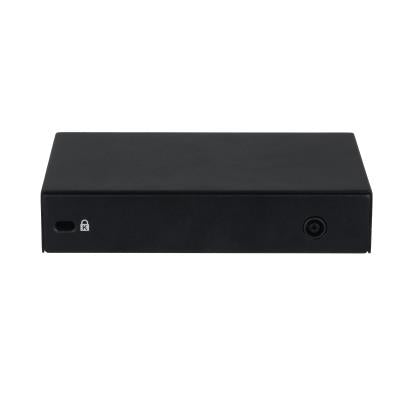

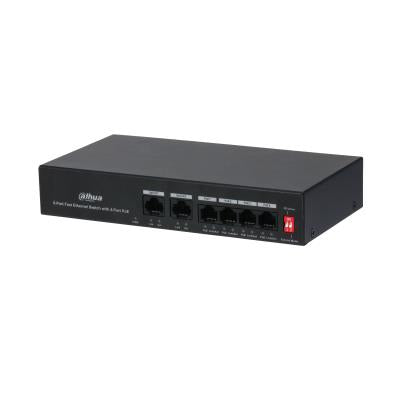

Dahua PFS3006-4ET-36 6-Port Fast Ethernet Switch with 4-Port PoE

Dahua

Dahua PFS3006-4ET-36 6-Port Fast Ethernet Switch with 4-Port PoE

(0)

€44,47

Product Overview

The Dahua PFS3006-4ET-36 is a 6-Port Fast Ethernet Switch with 4-Port PoE. Connections comprise 4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX. Its PoE allocation is port1-4 ≤30W, whole PoE budget ≤36W. The switching fabric is rated at 1.2 Gbps with a packet forwarding rate of 0.89 Mpps.

Key Features

Network connections: 4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX
PoE power allocation: Port1-4 ≤30W, whole PoE budget ≤36W
Supported PoE standards: IEEE802.3af, IEEE802.3at
Switching fabric: 1.2 Gbps
Packet forwarding: 0.89 Mpps
MAC address table: 2 K
Power input: AC100–AC240V

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	-10°C to +55°C (-14°F–131°F)
Net Weight	0.56 kg (1.23 lb)
Certifications	CE: EN60950; FCC
Operating Humidity	10%–90%

Network interfaces

Data Transmission Port	4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX

PoE and power

PoE Power	Port1-4 ≤30W, whole PoE budget ≤36W
PoE Protocol	IEEE802.3af, IEEE802.3at
Power Supply	AC100–AC240V
Power Consumption	Idling: 0.5W Full load: 36W

Switching performance

Switching Capacity	1.2 Gbps
Packet Forwarding Rate	0.89 Mpps
MAC Table Size	2 K

Model / SKU: PFS3006-4ET-36. EAN: 6939554946967. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua CS4006-4ET2GT-60 6-Port Cloud Managed PoE Switch with Gigabit Uplinks

(0)

€47,14

Product Overview

The Dahua CS4006-4ET2GT-60 is a 6-Port Cloud Managed PoE Switch with Gigabit Uplinks. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 2-4≤30 W, port 1≤60 W, total≤60 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 2-4≤30 W, port 1≤60 W, total≤60 W
Supported PoE standards: IEEE802.3af ; IEEE802.3at ; Hi-PoE
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 1.22 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 2-4≤30 W, port 1≤60 W, total≤60 W
PoE Protocol	IEEE802.3af ; IEEE802.3at ; Hi-PoE
Power Supply	External power supply: 53 VDC, 1.22 A
Power Consumption	Idling: ≤3 W Full load: 65 W

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4006-4ET2GT-60. EAN: 6939554921773. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua CS4226-24ET-240 26-Port Cloud Managed Desktop Switch with 24-Port PoE

Dahua

Dahua CS4226-24ET-240 26-Port Cloud Managed Desktop Switch with 24-Port PoE

(0)

€200,10

Product Overview

The Dahua CS4226-24ET-240 is a 26-Port Cloud Managed Desktop Switch with 24-Port PoE. Connections comprise Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W. The switching fabric is rated at 8.8 Gbps with a packet forwarding rate of 6.55 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)
Link speed: 10/100 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 8.8 Gbps
Packet forwarding: 6.55 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.47 kg (5.43 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	24
Ethernet Port Speed	10/100 Mbps
Description of Function Slots	Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
Power Consumption	Idling: ≤8.5 W ; Full load: 265 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.55 Mpps
MAC Table Size	8K

Model / SKU: CS4226-24ET-240. EAN: 6923172571267. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4218-16ET-190 18-Port Cloud Managed Desktop Switch with 16-Port PoE

Dahua

Dahua CS4218-16ET-190 18-Port Cloud Managed Desktop Switch with 16-Port PoE

(0)

€149,41

Product Overview

The Dahua CS4218-16ET-190 is an 18-Port Cloud Managed Desktop Switch with 16-Port PoE. Connections comprise Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W. The switching fabric is rated at 7.2 Gbps with a packet forwarding rate of 5.36 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)
Link speed: 10/100 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 7.2 Gbps
Packet forwarding: 5.36 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.29 kg (5.04 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	16
Ethernet Port Speed	10/100 Mbps
Description of Function Slots	Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
Power Consumption	Idling: ≤6 W ; Full load: 212 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Table Size	8K

Model / SKU: CS4218-16ET-190. EAN: 6923172571243. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua SF1005-EUR 5-Port Unmanaged Ethernet Switch

(0)

€11,56

Product Overview

The Dahua SF1005-EUR is a 5-Port Unmanaged Ethernet Switch. Connections comprise Port 1–5: 5 × 10/100 Base-T. Installation options are desktop mount.

Key Features

Network connections: Port 1–5: 5 × 10/100 Base-T
Link speed: 100 Mbps
Packet forwarding: 0.744 Mpps
MAC address table: 2K
Power input: 5 VDC; 1 A
Operating range: 0 °C to +45 °C
Mounting options: Desktop mount

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Casing Material	Metal
Product Dimensions	87.0 mm × 47.0 mm × 22.0 mm (3.42" × 1.85" × 0.87")
Net Weight	0.16 kg (0.35 lb)
Certifications	CE
Operating Humidity	5%–95% (RH)
Installation	Desktop mount

Network interfaces

Ethernet Port	5
Ethernet Port Speed	100 Mbps
Description of Function Slots	Port 1–5: 5 × 10/100 Base-T

Switching performance

Packet Forwarding Rate	0.744 Mpps
MAC Table Size	2K

PoE and power

Power Supply	5 VDC; 1 A
Power Consumption	Idling: 0.1 W; Full load: 0.5 W
Included Power Adapter	Yes

Model / SKU: SF1005-EUR. EAN: 6923172590411. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

Low in stock

Receives in 5 days.

Dahua CS4006-4GT-60 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

Dahua

Dahua CS4006-4GT-60 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

(0)

€56,03

Product Overview

The Dahua CS4006-4GT-60 is a 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W. The switching fabric is rated at 12 Gbps with a packet forwarding rate of 8.93 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Link speed: 10/100/1000 Mbps
PoE power allocation: Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE
Switching fabric: 12 Gbps
Packet forwarding: 8.93 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
Net Weight	0.29 kg (0.64 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; wall mount

Network interfaces

Ethernet Port	4
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE
Power Supply	External power supply: 53 VDC, 1.226 A
Power Consumption	Idling: ≤2.5 W ; Full load: 65 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	12 Gbps
Packet Forwarding Rate	8.93 Mpps
MAC Table Size	8K

Model / SKU: CS4006-4GT-60. EAN: 6923172571144. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4005-4ET1GT-36 5-Port Cloud Managed PoE Switch with Gigabit Uplink

Dahua

Dahua CS4005-4ET1GT-36 5-Port Cloud Managed PoE Switch with Gigabit Uplink

(0)

€40,02

Product Overview

The Dahua CS4005-4ET1GT-36 is a 5-Port Cloud Managed PoE Switch with Gigabit Uplink. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 1-4 ≤ 30 W, total ≤ 36 W. The switching fabric is rated at 2.8 Gbps with a packet forwarding rate of 2.08 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 1-4 ≤ 30 W, total ≤ 36 W
Supported PoE standards: IEEE802.3af; IEEE802.3at
Switching fabric: 2.8 Gbps
Packet forwarding: 2.08 Mpps
MAC address table: 2K
Power input: External power supply: 53 VDC, 0.8 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-4 ≤ 30 W, total ≤ 36 W
PoE Protocol	IEEE802.3af; IEEE802.3at
Power Supply	External power supply: 53 VDC, 0.8 A
Power Consumption	Idling: ≤3 W Full load: 42.4 W

Switching performance

Switching Capacity	2.8 Gbps
Packet Forwarding Rate	2.08 Mpps
MAC Table Size	2K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Net Weight	0.2 kg (0.44 lb)
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4005-4ET1GT-36. EAN: 6939554913051. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua SF1008-EUR 8-Port Unmanaged Ethernet Switch

Dahua

Dahua SF1008-EUR 8-Port Unmanaged Ethernet Switch

(0)

€14,86

Product Overview

The Dahua SF1008-EUR is an 8-Port Unmanaged Ethernet Switch. Connections comprise Port 1–8: 8 × 10/100 Base-T. Installation options are desktop mount.

Key Features

Network connections: Port 1–8: 8 × 10/100 Base-T
Link speed: 100 Mbps
Packet forwarding: 1.1904 Mpps
MAC address table: 2K
Power input: 5 VDC; 1 A
Operating range: 0 °C to +45 °C
Mounting options: Desktop mount

Technical Specifications

Network interfaces

Ethernet Port	8
Ethernet Port Speed	100 Mbps
Description of Function Slots	Port 1–8: 8 × 10/100 Base-T

Switching performance

Packet Forwarding Rate	1.1904 Mpps
MAC Table Size	2K

PoE and power

Power Supply	5 VDC; 1 A
Power Consumption	Idling: 0.1 W; Full load: 0.75 W
Included Power Adapter	Yes

Physical and environmental

Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Casing Material	Metal
Product Dimensions	133.5 mm × 56.0 mm × 22.0 mm (5.26" × 2.20" × 0.87")
Net Weight	0.23 kg (0.51 lb)
Certifications	CE
Operating Humidity	5%–95% (RH)
Installation	Desktop mount

Model / SKU: SF1008-EUR. EAN: 6923172590466. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua

Dahua SF1008LP 8-Port Unmanaged Desktop Switch with 4-Port PoE

(0)

€52,85

Product Overview

The Dahua SF1008LP is an 8-Port Unmanaged Desktop Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-8: 4 × RJ-45 10/100 Mbps. Its PoE allocation is 60 W.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-8: 4 × RJ-45 10/100 Mbps
PoE power allocation: 60 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE
Packet forwarding: 1.19 Mpps
MAC address table: 2K
Power input: 48 V–57 V DC
Operating range: –10 °C to +55 °C

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to + 131 °F)
Product Dimensions	190 mm × 100 mm × 30 mm (7.48" × 3.93" × 1.18") (W × L × H) Transmission Performance: Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Net Weight	490 g (1.08 lb)
Operating Humidity	5%–95% (RH)

Network interfaces

Data Transmission Port	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-8: 4 × RJ-45 10/100 Mbps

PoE and power

PoE Power	60 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE
Power Supply	48 V–57 V DC
Power Consumption	Idling: 0.8 W Full load: 60 W

Switching performance

Packet Forwarding Rate	1.19 Mpps
MAC Table Size	2K

Model / SKU: SF1008LP. EAN: 6923172572035. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4010-8ET2GT-110 10-Port Cloud Managed Desktop Switch with 8-Port PoE

Dahua

Dahua CS4010-8ET2GT-110 10-Port Cloud Managed Desktop Switch with 8-Port PoE

(0)

€83,60

Product Overview

The Dahua CS4010-8ET2GT-110 is a 10-Port Cloud Managed Desktop Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 3-8≤30 W, port 1-2≤90 W, total≤110 W. The switching fabric is rated at 5.6 Gbps with a packet forwarding rate of 4.17 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 3-8≤30 W, port 1-2≤90 W, total≤110 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 5.6 Gbps
Packet forwarding: 4.17 Mpps
MAC address table: 8K
Power input: External Power Adapter (54 V, 2.22 A)

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 3-8≤30 W, port 1-2≤90 W, total≤110 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External Power Adapter (54 V, 2.22 A)
Power Consumption	Idling: 5.7 W Full load: 115 W

Switching performance

Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Net Weight	0.36 kg (0.79 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4010-8ET2GT-110. EAN: 6937552421431. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4010-8GT-110 10-Port Cloud Managed Gigabit PoE Switch with SFP Uplinks

Dahua

Dahua CS4010-8GT-110 10-Port Cloud Managed Gigabit PoE Switch with SFP Uplinks

(0)

€109,39

Product Overview

The Dahua CS4010-8GT-110 is a 10-Port Cloud Managed Gigabit PoE Switch with SFP Uplinks. Connections comprise Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10:2 × SFP 100/1000 Mbps (uplink). Its PoE allocation is port 3-8≤30 W, port 1-2≤90 W, total≤110 W. The switching fabric is rated at 20 Gbps with a packet forwarding rate of 14.88 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10:2 × SFP 100/1000 Mbps (uplink)
PoE power allocation: Port 3-8≤30 W, port 1-2≤90 W, total≤110 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Switching fabric: 20 Gbps
Packet forwarding: 14.88 Mpps
MAC address table: 8K
Power input: External Power Adapter (54 V, 2.22 A)

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Net Weight	0.36 kg (0.79 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) Port 9-10:2 × SFP 100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 3-8≤30 W, port 1-2≤90 W, total≤110 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Power Supply	External Power Adapter (54 V, 2.22 A)
Power Consumption	Idling: 3.8 W Full load: 114 W

Switching performance

Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Table Size	8K

Model / SKU: CS4010-8GT-110. EAN: 6923172571151. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua PFS3110-8ET-96-V2 10-Port PoE Switch with RJ-45 and SFP Gigabit Uplinks

Dahua

Dahua PFS3110-8ET-96-V2 10-Port PoE Switch with RJ-45 and SFP Gigabit Uplinks

(0)

€95,16

Product Overview

The Dahua PFS3110-8ET-96-V2 is a 10-Port PoE Switch with RJ-45 and SFP Gigabit Uplinks. Connections comprise Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 10: 1 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W.

Key Features

Network connections: Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 10: 1 × SFP 1000 Mbps (uplink)
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W
Supported PoE standards: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt
MAC address table: 8K
Power input: 48 V–57 V DC
Operating range: –30 °C to +65 °C

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–30 °C to +65 °C (-22 °F to +149 °F)
Product Dimensions	150 mm × 100 mm × 42 mm (5.91" × 3.94" × 1.65") Transmission Performance: Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Net Weight	0.54 kg (1.03 lb)
Operating Humidity	5% – 95% (RH)

Network interfaces

Data Transmission Port	Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink) Port 10: 1 × SFP 1000 Mbps (uplink)

PoE and power

PoE Power	Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W
PoE Protocol	IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt
Power Supply	48 V–57 V DC
Power Consumption	Idling: 3 W Full load: 96 W

Switching performance

MAC Table Size	8K

Model / SKU: PFS3110-8ET-96-V2. EAN: 6923172503862. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4010-8ET2GT-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE

Dahua

Dahua CS4010-8ET2GT-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE

(0)

€59,59

Product Overview

The Dahua CS4010-8ET2GT-60 is a 10-Port Cloud Managed Desktop Switch with 8-Port PoE. Connections comprise Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink). Its PoE allocation is port 2-8≤30 W, port 1≤60 W, total≤60 W. The switching fabric is rated at 5.6 Gbps with a packet forwarding rate of 4.17 Mpps. Installation options are desktop mount; wall mount.

Key Features

Network connections: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE power allocation: Port 2-8≤30 W, port 1≤60 W, total≤60 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE
Switching fabric: 5.6 Gbps
Packet forwarding: 4.17 Mpps
MAC address table: 8K
Power input: External Power Adapter (53 V, 1.22 A)

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 2-8≤30 W, port 1≤60 W, total≤60 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE
Power Supply	External Power Adapter (53 V, 1.22 A)
Power Consumption	Idling: 4 W Full load: 63 W

Switching performance

Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Net Weight	0.36 kg (0.79 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; wall mount

Model / SKU: CS4010-8ET2GT-60. EAN: 6937552421417. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

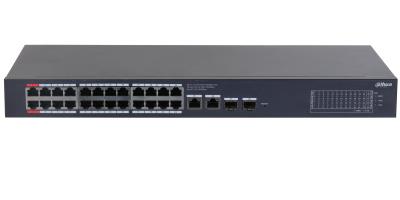

Dahua CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

Dahua

Dahua CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

(0)

€297,93

Product Overview

The Dahua CS4228-24GT-240 is a 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE. Connections comprise Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W. The switching fabric is rated at 56 Gbps with a packet forwarding rate of 41.66 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)
Link speed: 10/100/1000 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 56 Gbps
Packet forwarding: 41.66 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.50 kg (5.5 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	24
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
Power Consumption	Idling: ≤12.5 W ; Full load: 265 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Table Size	8K

Model / SKU: CS4228-24GT-240. EAN: 6923172571212. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

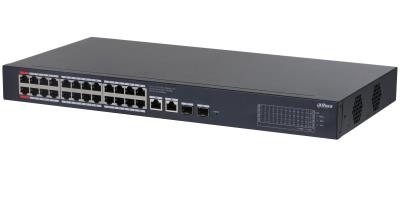

Dahua CS4228-24GT-375 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

Dahua

Dahua CS4228-24GT-375 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

(0)

€340,62

Product Overview

The Dahua CS4228-24GT-375 is a 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE. Connections comprise Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W. The switching fabric is rated at 56 Gbps with a packet forwarding rate of 41.66 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)
Link speed: 10/100/1000 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 56 Gbps
Packet forwarding: 41.66 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.66 kg (5.85 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	24
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 7 A
Power Consumption	Idling: ≤12.5 W ; Full load: 400 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Table Size	8K

Model / SKU: CS4228-24GT-375. EAN: 6923172571229. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua CS4220-16GT-135 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE

Dahua

Dahua CS4220-16GT-135 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE

(0)

€231,23

Product Overview

The Dahua CS4220-16GT-135 is a 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE. Connections comprise Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W. The switching fabric is rated at 40 Gbps with a packet forwarding rate of 29.76 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)
Link speed: 10/100/1000 Mbps
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 40 Gbps
Packet forwarding: 29.76 Mpps
MAC address table: 8K

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.26 kg (4.97 lb)
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	16
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 3 A
Power Consumption	Idling: ≤8.3 W ; Full load: 154 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Table Size	8K

Model / SKU: CS4220-16GT-135. EAN: 6923172571298. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

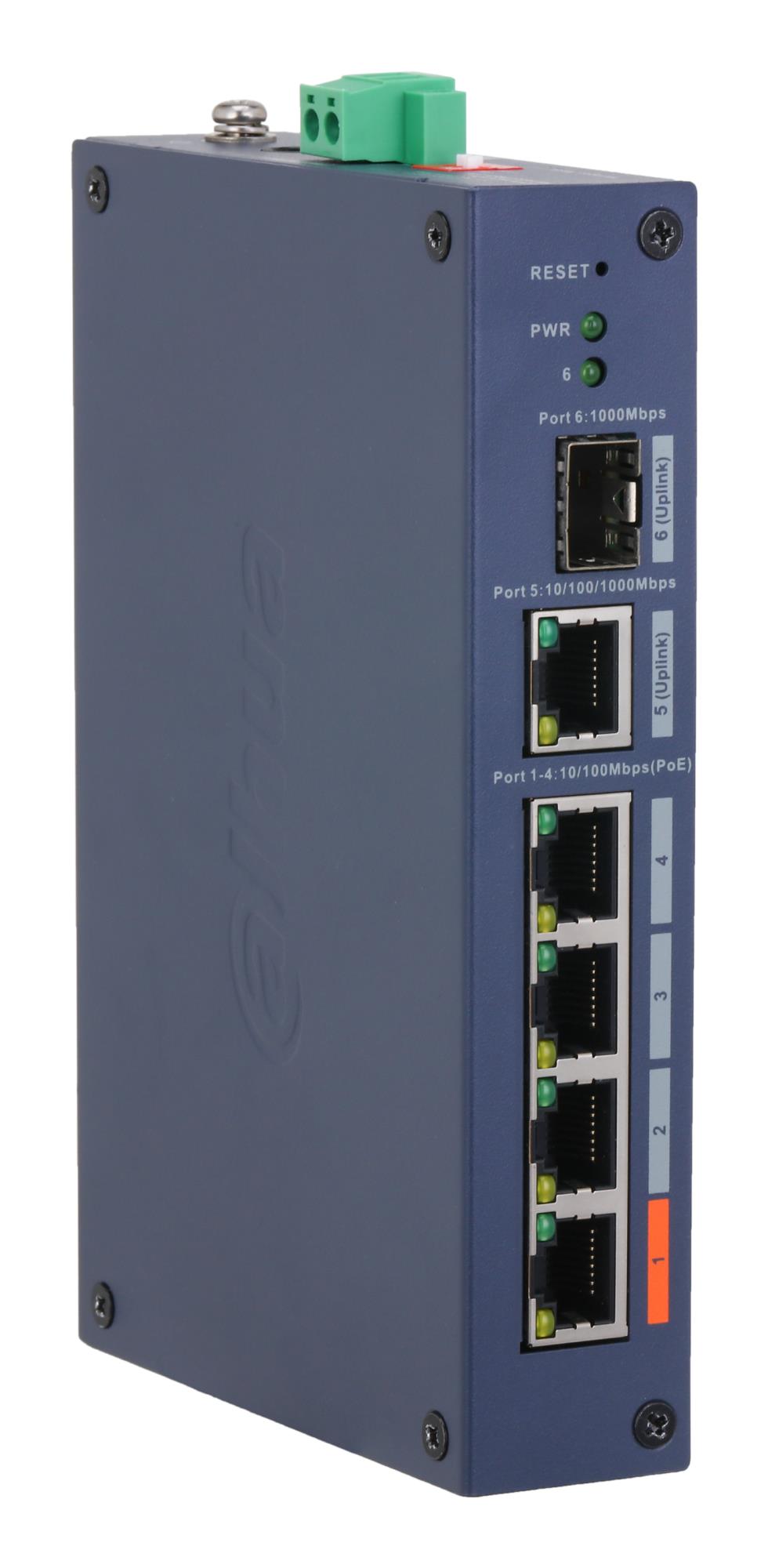

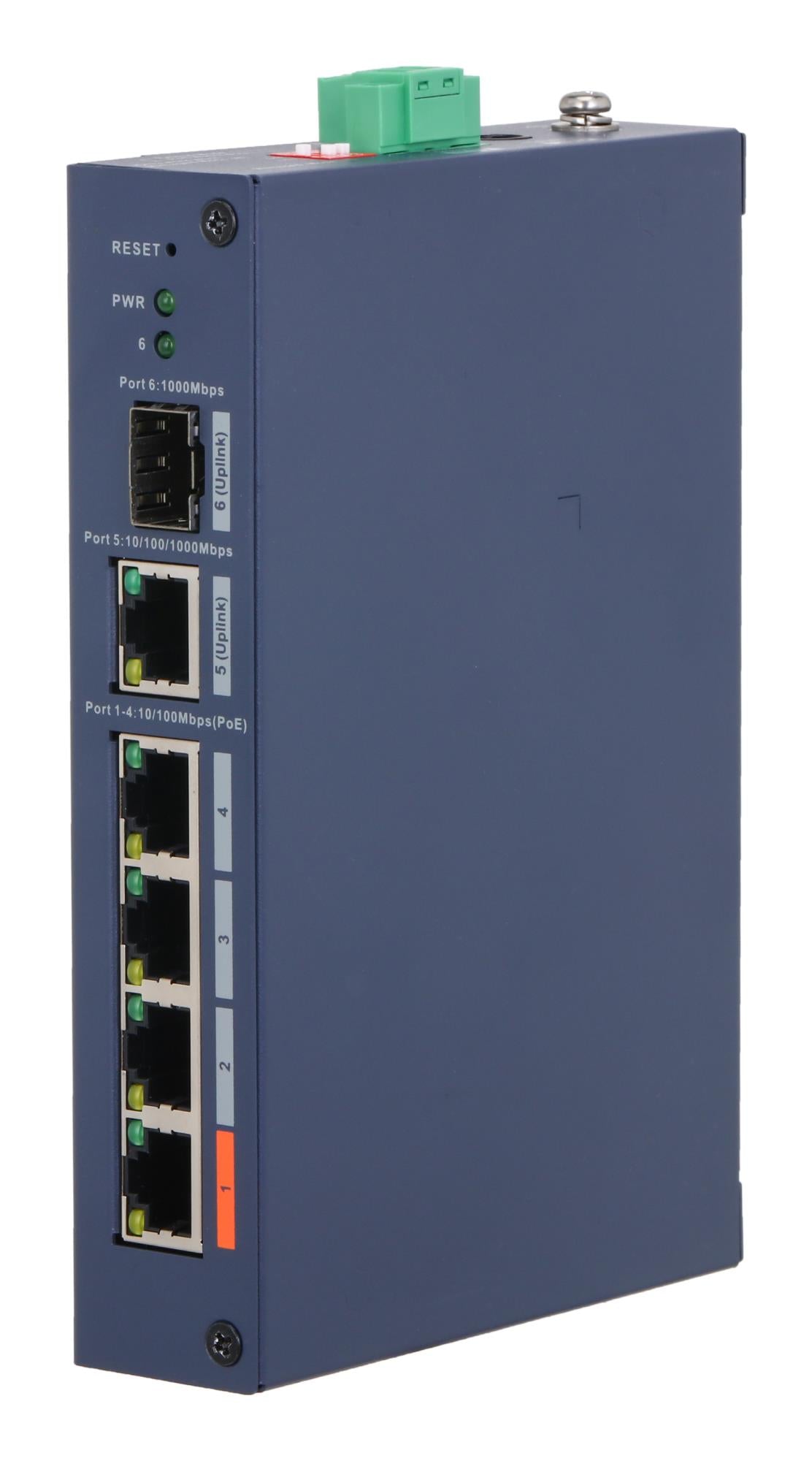

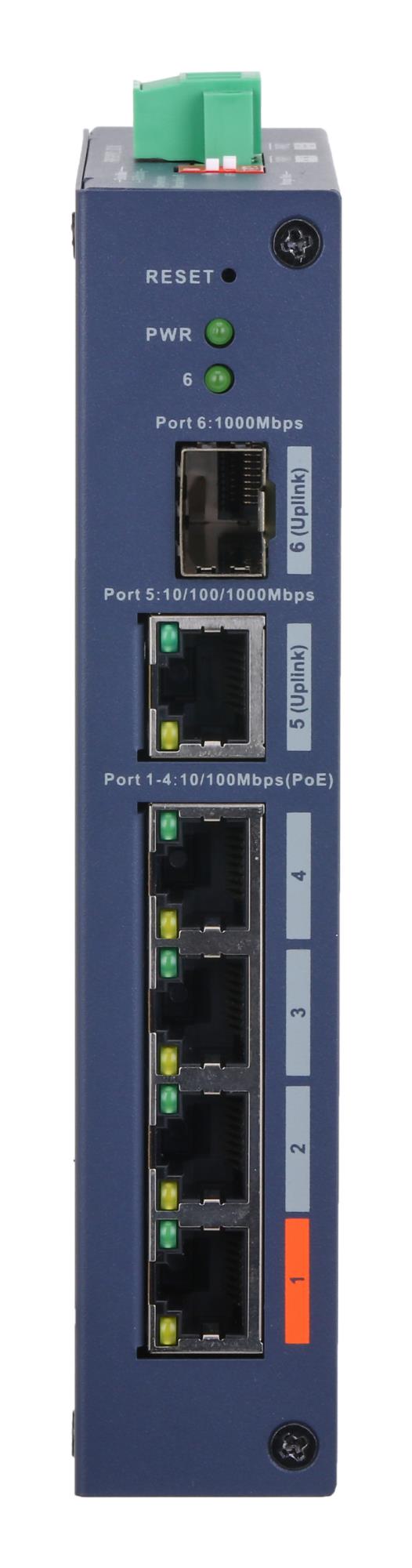

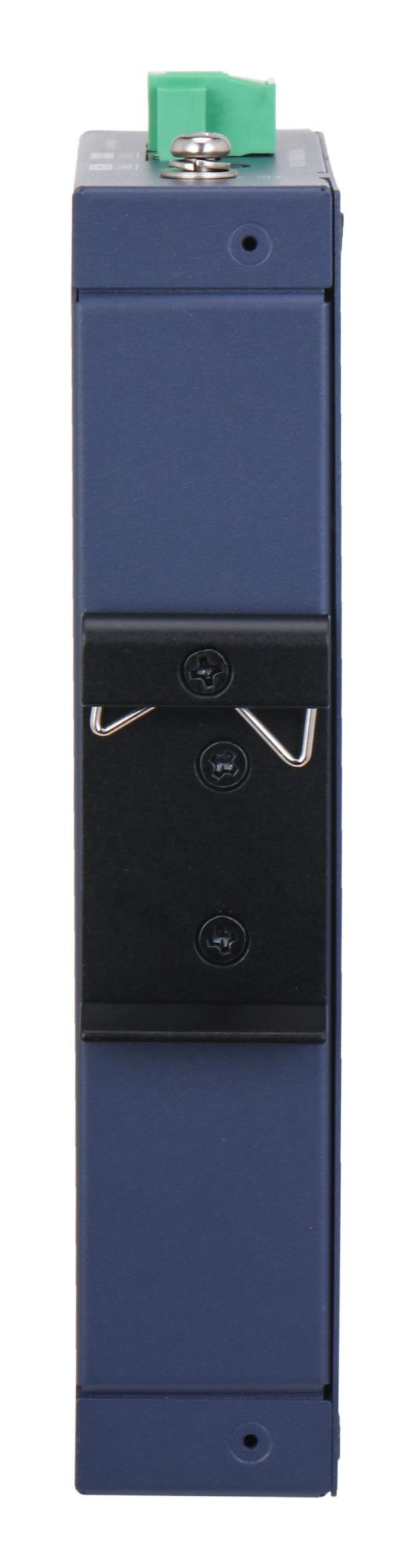

Dahua CHS4106-4ET-60 6-Port Cloud Managed Hardened Switch with 4-Port PoE

Dahua

Dahua CHS4106-4ET-60 6-Port Cloud Managed Hardened Switch with 4-Port PoE

(0)

€104,94

Product Overview

The Dahua CHS4106-4ET-60 is a 6-Port Cloud Managed Hardened Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink); Port 6: 1 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1 ≤60 W, Port 2-4 ≤30 W, total ≤60 W. The switching fabric is rated at 4.8 Gbps with a packet forwarding rate of 3.57 Mpps. Installation options are desktop mount; din-rail mount.

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink); Port 6: 1 × SFP 1000 Mbps (uplink)
PoE power allocation: Port 1 ≤60 W, Port 2-4 ≤30 W, total ≤60 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at; Hi-PoE
Switching fabric: 4.8 Gbps
Packet forwarding: 3.57 Mpps
MAC address table: 8K
Power input: External dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 A

Technical Specifications

Network interfaces

Description of Function Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5: 1 × RJ-45 10/100/1000 Mbps (uplink); Port 6: 1 × SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1 ≤60 W, Port 2-4 ≤30 W, total ≤60 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE
Power Supply	External dual power supply (terminal block and DC): 48–57 VDC, 1.354–1.14 A
Power Consumption	Idling: 1.7 W; Full load: 65 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
MAC Table Size	8K

Physical and environmental

Operating Temperature	–30 °C to +65 °C (–22 °F to +149 °F)
Protection	IP30; IK06
Casing Material	Iron
Product Dimensions	154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)
Net Weight	0.32 kg (0.71 lb)
Certifications	CE
Operating Humidity	10%–90% (RH), non-condensing
Installation	Desktop mount; DIN-rail mount

Model / SKU: CHS4106-4ET-60. EAN: 6939554903427. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

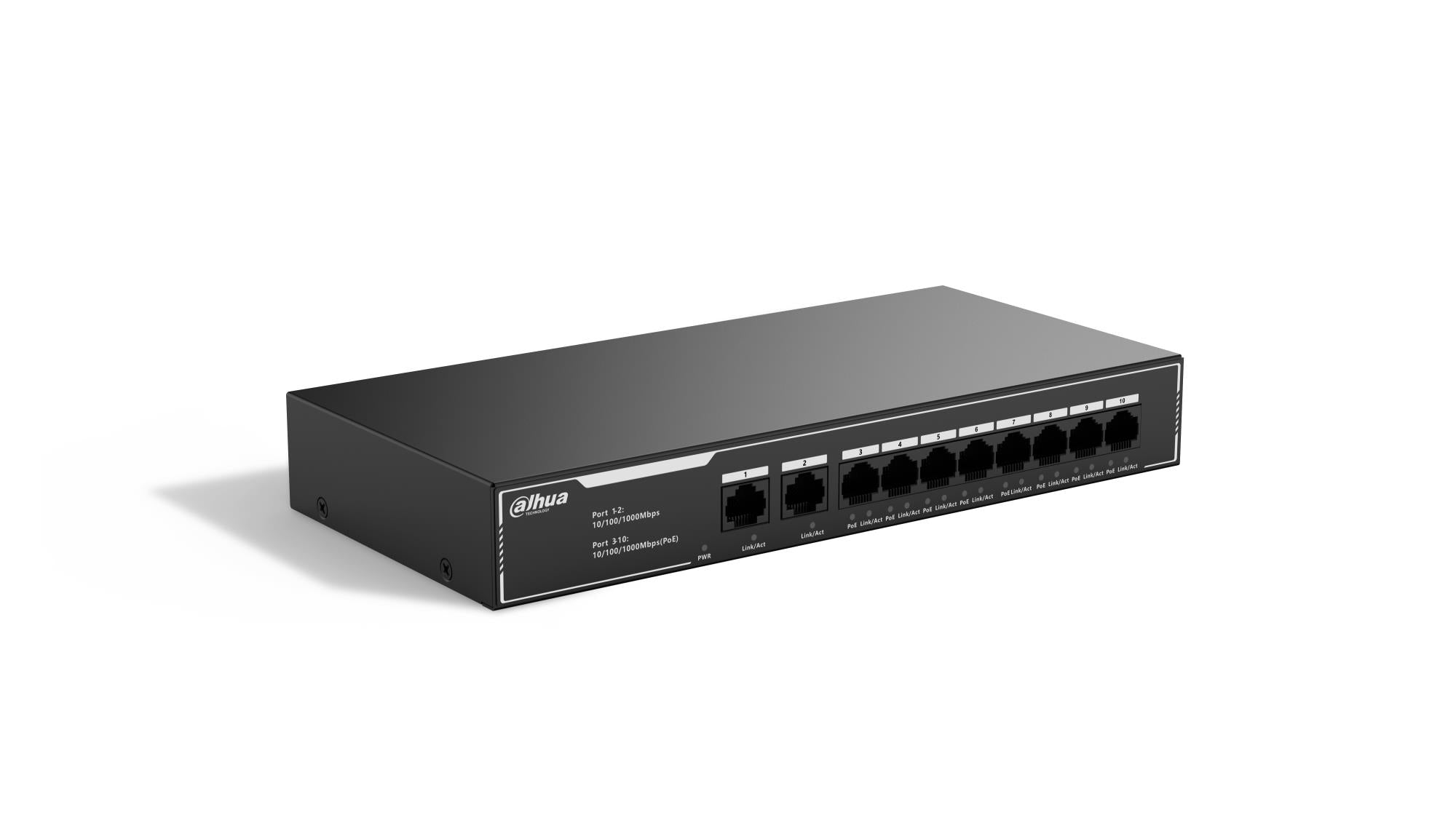

Dahua SG1010LP 10-Port Economical Gigabit PoE Switch with 8-Port PoE

(0)

€92,49

Product Overview

The Dahua SG1010LP is a 10-Port Economical Gigabit PoE Switch with 8-Port PoE. Connections comprise Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE). Its PoE allocation is port 3–10 ≤30 W; Total ≤65 W. The switching fabric is rated at 20 Gbps with a packet forwarding rate of 14.88 Mpps. Installation options are desktop mount.

Key Features

Network connections: Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE)
Link speed: 10/100/1000 Mbps
PoE power allocation: Port 3–10 ≤30 W; Total ≤65 W
Supported PoE standards: IEEE 802.3af; IEEE 802.3at
Switching fabric: 20 Gbps
Packet forwarding: 14.88 Mpps
MAC address table: 2K Byte

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Iron
Product Dimensions	243 mm × 118 mm × 35 mm (9.57" × 4.65" × 1.36") (L × W × H)
Net Weight	0.8 kg (1.76 lb)
Certifications	CE Transmission Performance: Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Operating Humidity	5%–95% (RH), non-condensing
Installation	Desktop mount

Network interfaces

Ethernet Port	8
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE)

PoE and power

PoE	Yes
PoE Power	Port 3–10 ≤30 W; Total ≤65 W
PoE Protocol	IEEE 802.3af; IEEE 802.3at
Power Supply	Built-in power supply: 100–240 VAC; 50/60 Hz; 1.5 A (maximum)
Power Consumption	Idling: 1.8 W Full load: 65 W
Included Power Adapter	Yes

Switching performance

Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Table Size	2K Byte

Model / SKU: SG1010LP. EAN: 6923172572073. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

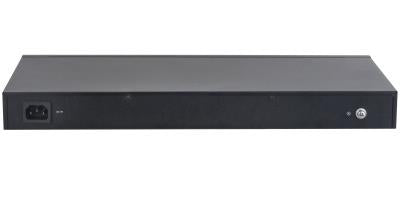

Dahua CS4220-16GT-240 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE

Dahua

Dahua CS4220-16GT-240 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE

(0)

€245,46

Product Overview

The Dahua CS4220-16GT-240 is a 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE. Connections comprise Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W. The switching fabric is rated at 40 Gbps with a packet forwarding rate of 29.76 Mpps. Installation options are desktop mount; rack mount.

Key Features

Network connections: Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)
PoE power allocation: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Switching fabric: 40 Gbps
Packet forwarding: 29.76 Mpps
MAC address table: 8K
Power input: Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Casing Material	Sheet metal
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Net Weight	2.37 kg (5.21 lb)
Certifications	CE
Operating Humidity	5% –95% (RH), non-condensing
Installation	Desktop mount; rack mount

Network interfaces

Ethernet Port	16
Description of Function Slots	Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)

PoE and power

PoE	Yes
PoE Power	Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Power Supply	Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption	Idling: ≤8.3 W ; Full load: 265 W

Switching performance

Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Table Size	8K

Model / SKU: CS4220-16GT-240. EAN: 6923172571205. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

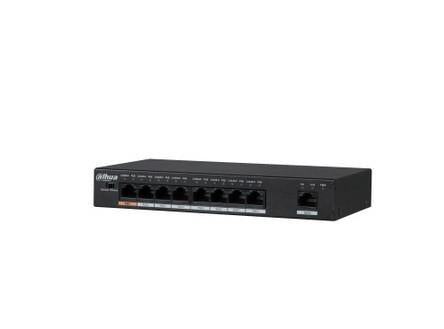

Dahua PFS3009-8ET1GT-96-V2 9-Port Unmanaged Desktop Switch with 8-Port PoE

(0)

€82,71

Product Overview

The Dahua PFS3009-8ET1GT-96-V2 is a 9-Port Unmanaged Desktop Switch with 8-Port PoE. Connections comprise Port 1-8:8 × RJ45 10/100M(PoE) Port 9:1 × RJ45 10/100/1000M(Uplink). Its PoE allocation is port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W.

Key Features

Network connections: Port 1-8:8 × RJ45 10/100M(PoE) Port 9:1 × RJ45 10/100/1000M(Uplink)
PoE power allocation: Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W
Supported PoE standards: IEEE802.3af, IEEE802.3at, Hi-PoE
Packet forwarding: 2.678 Mpps
MAC address table: 2K
Power input: External power adpater: 53V DV
Operating range: -10°C to 55°C

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Weight	Net weight: 0.47 kg (1.04 lb) Box weight (with accessory): 1.28 kg (2.82 lb) Protective box weight (with accessory): 10.98 kg (24.21 lb)
Operating Humidity	5%–95%

Network interfaces

Ethernet Port	Port 1-8:8 × RJ45 10/100M(PoE) Port 9:1 × RJ45 10/100/1000M(Uplink)

PoE and power

PoE Power	Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W
PoE Protocol	IEEE802.3af, IEEE802.3at, Hi-PoE
Power Supply	External power adpater: 53V DV

Switching performance

Packet Forwarding Rate	2.678 Mpps
MAC Table Size	2K

Model / SKU: PFS3009-8ET1GT-96-V2. EAN: 6923172523242. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

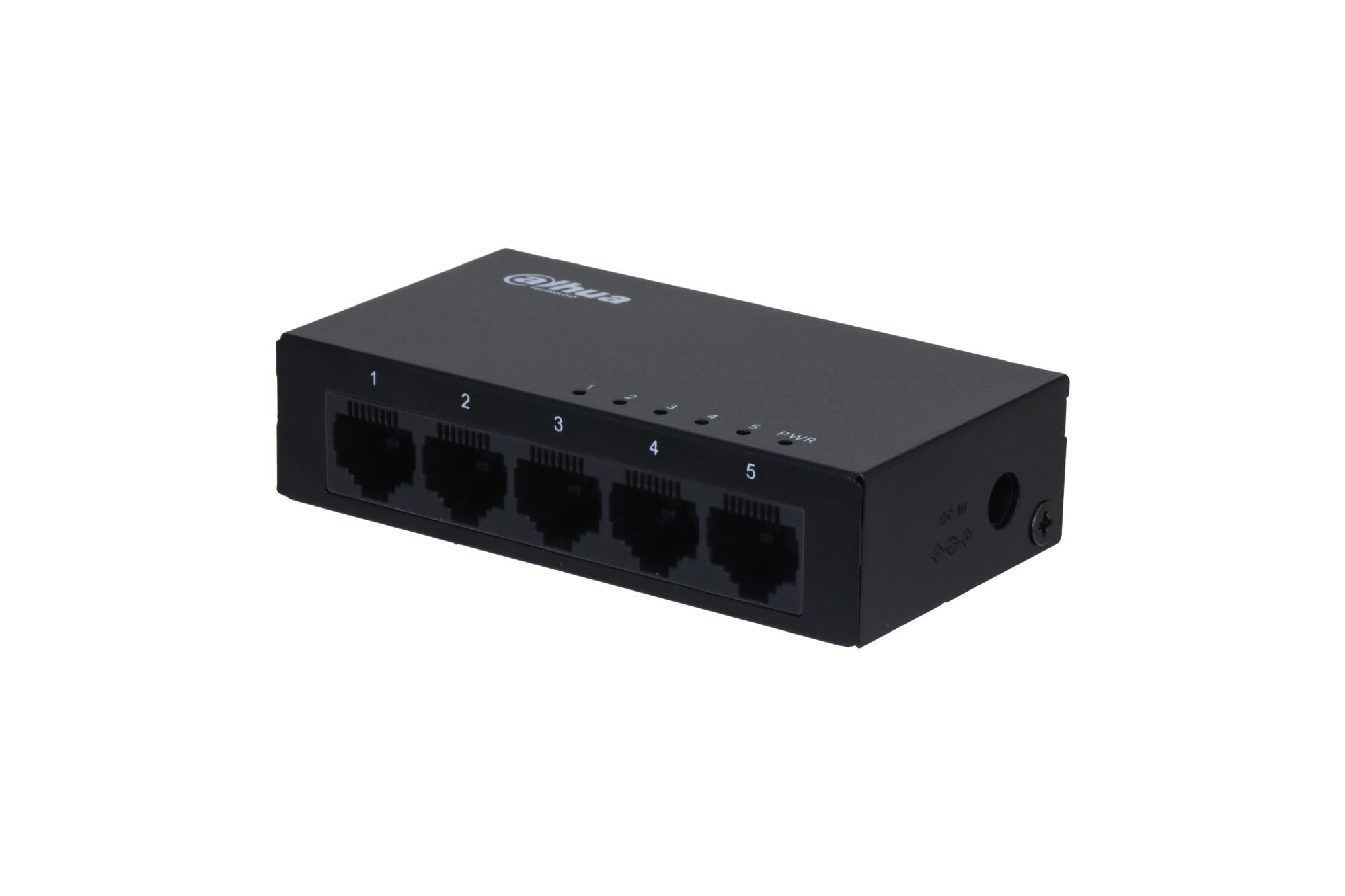

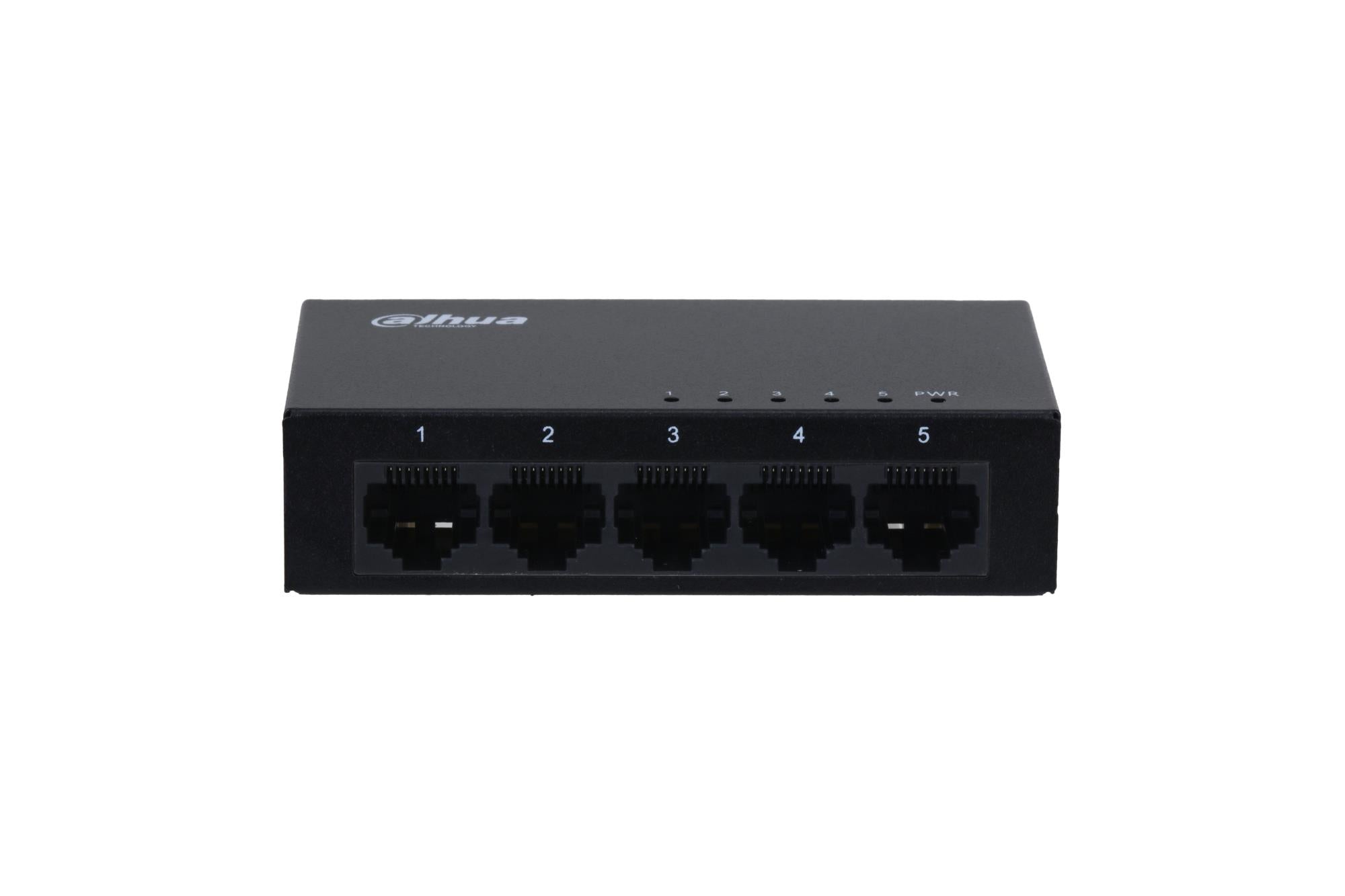

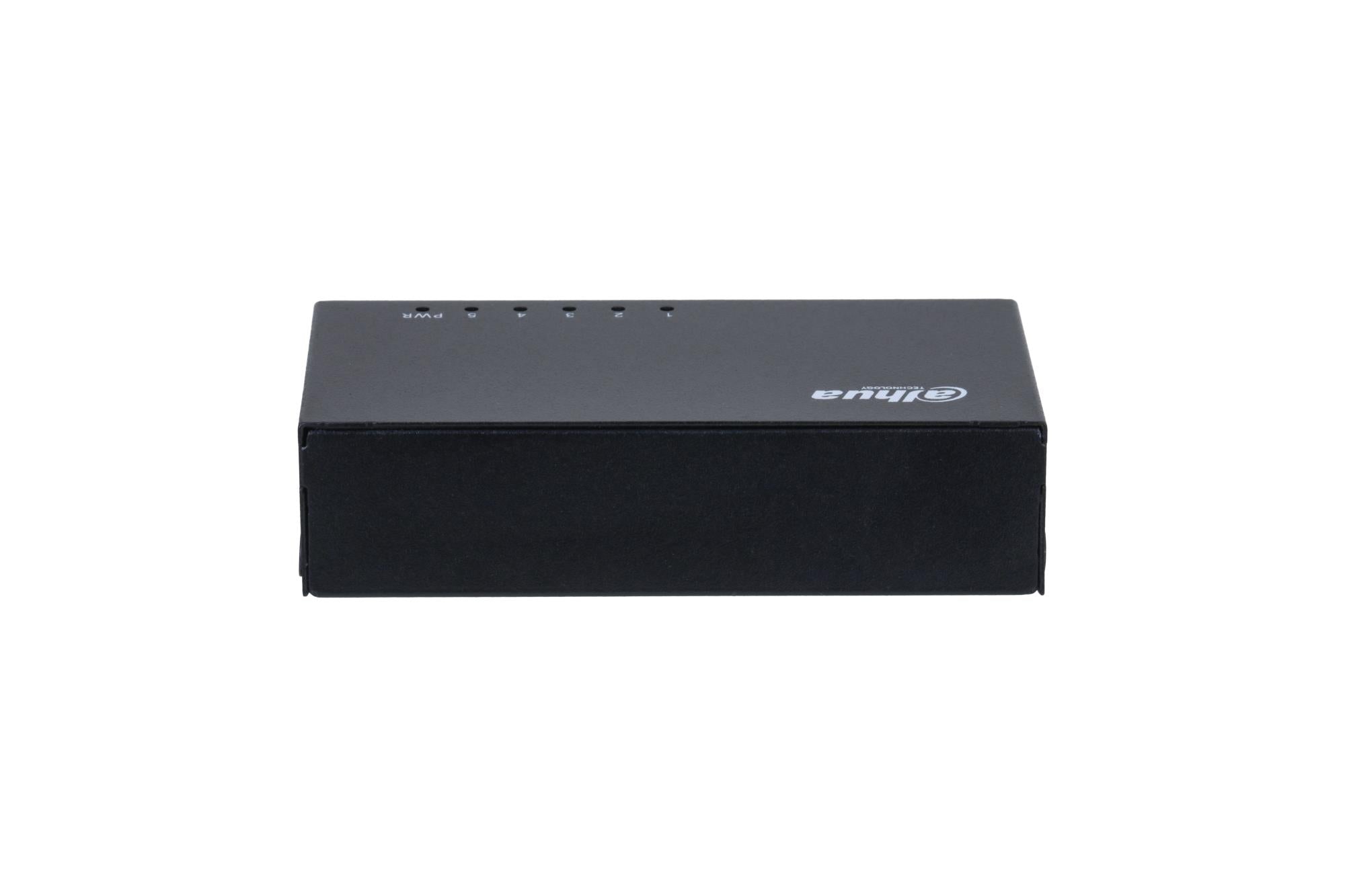

Dahua PFS3005-5GT-V2 5-Port Unmanaged Gigabit Switch

Dahua

Dahua PFS3005-5GT-V2 5-Port Unmanaged Gigabit Switch

(0)

€18,17

Product Overview

The Dahua PFS3005-5GT-V2 is a 5-Port Unmanaged Gigabit Switch. Connections comprise Port 1–5: 5 × 10/100/1000 Base-T. Installation options are desktop mount.

Key Features

Network connections: Port 1–5: 5 × 10/100/1000 Base-T
Link speed: 10/100/1000 Mbps
Packet forwarding: 7.44 Mpps
MAC address table: 2K
Power input: 5 VDC; 1 A
Operating range: 0 °C to +45 °C
Mounting options: Desktop mount

Technical Specifications

Physical and environmental

Colour	Black
Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Casing Material	Metal
Product Dimensions	87.0 mm × 47.0 mm × 22.0 mm (3.42" × 1.85" × 0.87")
Net Weight	0.16 kg (0.35 lb)
Operating Humidity	5%–95% (RH)
Installation	Desktop mount

Network interfaces

Ethernet Port	5
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1–5: 5 × 10/100/1000 Base-T

Switching performance

Packet Forwarding Rate	7.44 Mpps
MAC Table Size	2K

PoE and power

Power Supply	5 VDC; 1 A
Power Consumption	Idling: 0.5 W Full load: 1.5 W
Included Power Adapter	Yes

Model / SKU: PFS3005-5GT-V2. EAN: 6923172582027. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Explore Related Collections
