Dahua
Dahua CS4228-24GT-375 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE
SKU: CS4228-24GT-375
€340,62
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 30 October and 01 November.

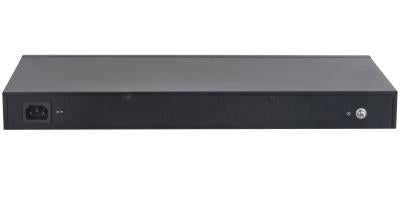

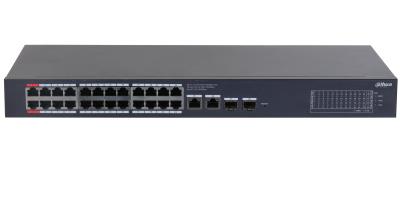

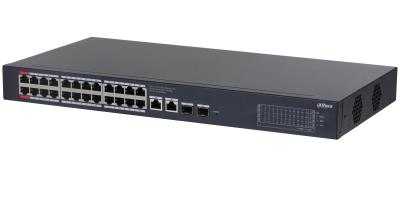

Dahua CS4228-24GT-375 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE
€340,62
€340,62
Product Overview
The Dahua CS4228-24GT-375 is a 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE. Connections comprise Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W. The switching fabric is rated at 56 Gbps with a packet forwarding rate of 41.66 Mpps. Installation options are desktop mount; rack mount.
Key Features
- Network connections: Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)
- Link speed: 10/100/1000 Mbps
- PoE power allocation: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
- Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- Switching fabric: 56 Gbps
- Packet forwarding: 41.66 Mpps
- MAC address table: 8K
Technical Specifications
Physical and environmental
| Colour | Black |
|---|---|
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Casing Material | Sheet metal |
| Product Dimensions | 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H) |
| Net Weight | 2.66 kg (5.85 lb) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Installation | Desktop mount; rack mount |
Network interfaces
| Ethernet Port | 24 |
|---|---|
| Ethernet Port Speed | 10/100/1000 Mbps |
| Description of Function Slots | Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink) |
PoE and power
| PoE | Yes |
|---|---|
| PoE Power | Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| Power Supply | Built-in power supply: 100-240 VDC, 47-63 Hz, max 7 A |
| Power Consumption | Idling: ≤12.5 W ; Full load: 400 W |
| Included Power Adapter | Yes |
Switching performance
| Switching Capacity | 56 Gbps |
|---|---|
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Table Size | 8K |
Model / SKU: CS4228-24GT-375. EAN: 6923172571229. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
