Dahua

Dahua DHI-NVR2108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder

(0)

€182,32

Product Overview

The Dahua DHI-NVR2108HS-8P-4KS3 is an 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	8 channels
Network Bandwidth	AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.81 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.89 kg (1.96 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: DHI-NVR2108HS-8P-4KS3. EAN: 6923172573568. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

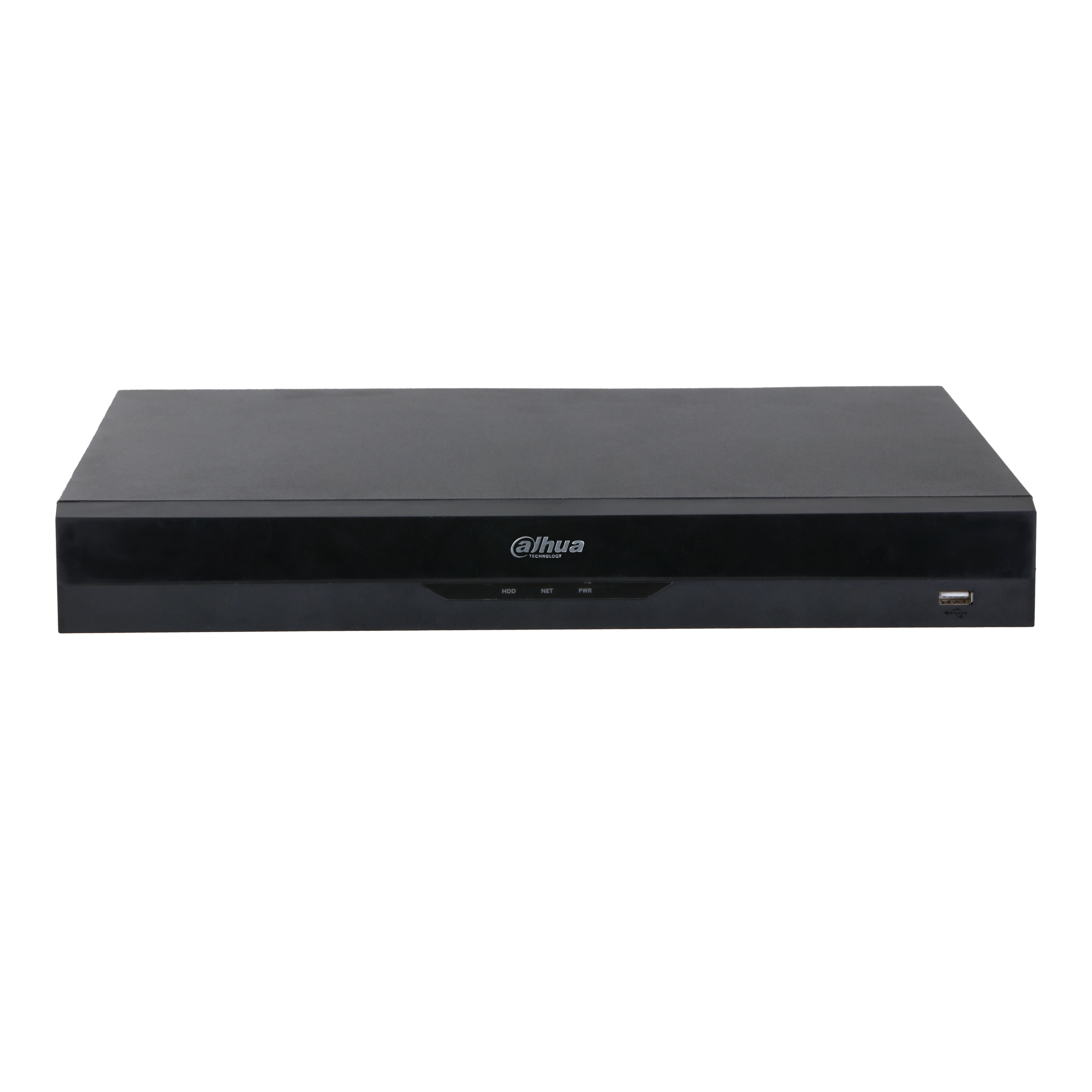

Dahua NVR5216-EI2 16CH 1U 2HDDs WizSense Network Video Recorder

(0)

€513,15

Product Overview

The Dahua NVR5216-EI2 is a 16CH 1U 2HDDs WizSense Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing. Recording storage: 2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature. Recorder-side analytics support Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Hard-drive interfaces: 2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature.
Local display connections: 1 VGA, 1 HDMI, 720 HDMI
Recorder-side AI: Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (64 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	8 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (32 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	4 channels (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	1. 16-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s 2. 4-channel FD (by recorder) + FR (by recorder), video stream: 24 face images/s
Face Database Capacity	Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AcuPick Performance of AI by Camera (Number of Channels)	All channels (32 targets/s)
AI by Recorder	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm
AI by Camera	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection; AcuPick

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
Video Output	1 VGA, 1 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 4 A
Power Consumption	Total output of NVR is ≤ 10 W (without HDD)
Interoperability	ONVIF 25.12 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 284.8 mm × 56.0 mm (14.76" × 11.21" × 2.20") (W × D × H)
Net Weight	1.55 kg (3.42 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR5216-EI2. EAN: 6937552407701. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4108-EI 8CH Smart 1U 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4108-EI 8CH Smart 1U 1HDD WizSense Network Video Recorder

(0)

€197,44

Product Overview

The Dahua NVR4108-EI is an 8CH Smart 1U 1HDD WizSense Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	<10 W(without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × D × H)
Net Weight	0.45 kg (0.99 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4108-EI. EAN: 6923172585578. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder

Dahua

Dahua NVR4108HS-8P-4KS3 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder

(0)

€233,90

Product Overview

The Dahua NVR4108HS-8P-4KS3 is an 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.81 A
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.92 kg (2.03 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4108HS-8P-4KS3. EAN: 6923172573827. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

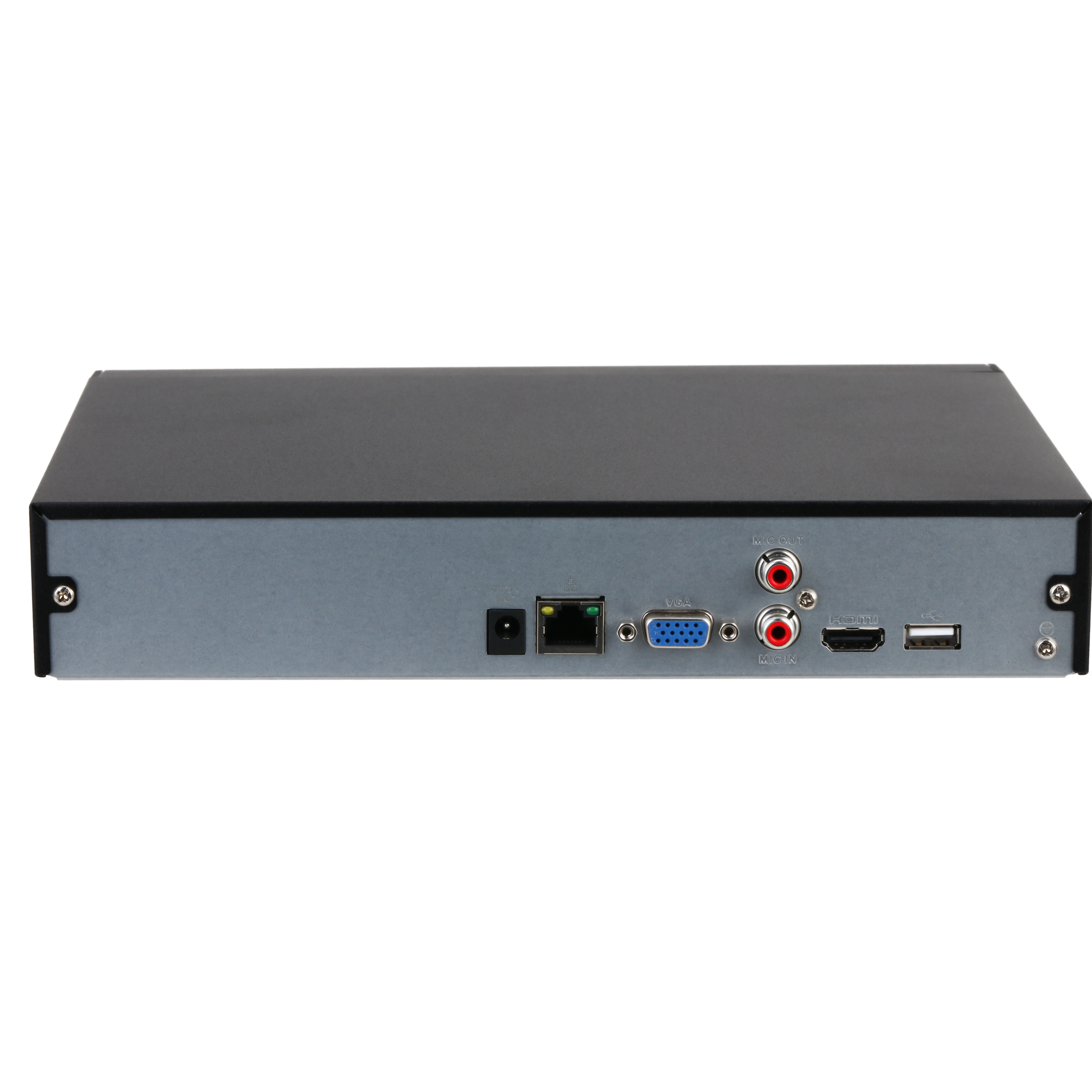

Dahua NVR4116HS-EI 16CH Compact 1U 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4116HS-EI 16CH Compact 1U 1HDD WizSense Network Video Recorder

(0)

€227,67

Product Overview

The Dahua NVR4116HS-EI is a 16CH Compact 1U 1HDD WizSense Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	<10 W(without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)
Net Weight	0.81 kg (1.79 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4116HS-EI. EAN: 6923172584298. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR4104HS-EI 4CH Compact 1U 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4104HS-EI 4CH Compact 1U 1HDD WizSense Network Video Recorder

(0)

€192,99

Product Overview

The Dahua NVR4104HS-EI is a 4CH Compact 1U 1HDD WizSense Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	<10 W(without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)
Net Weight	0.81 kg (1.79 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4104HS-EI. EAN: 6923172584274. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4108HS-EI 8CH Compact 1U 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4108HS-EI 8CH Compact 1U 1HDD WizSense Network Video Recorder

(0)

€200,99

Product Overview

The Dahua NVR4108HS-EI is an 8CH Compact 1U 1HDD WizSense Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2A
Power Consumption	<7.8 W (without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)
Net Weight	0.84 kg (1.85 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4108HS-EI. EAN: 6923172584281. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua

Dahua NVR4216-16P-EI 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder

(0)

€466,02

Product Overview

The Dahua NVR4216-16P-EI is a 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing. Recording storage: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Hard-drive interfaces: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 47-63 Hz
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H)
Net Weight	2.60 kg (5.73 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4216-16P-EI. EAN: 6923172585790. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

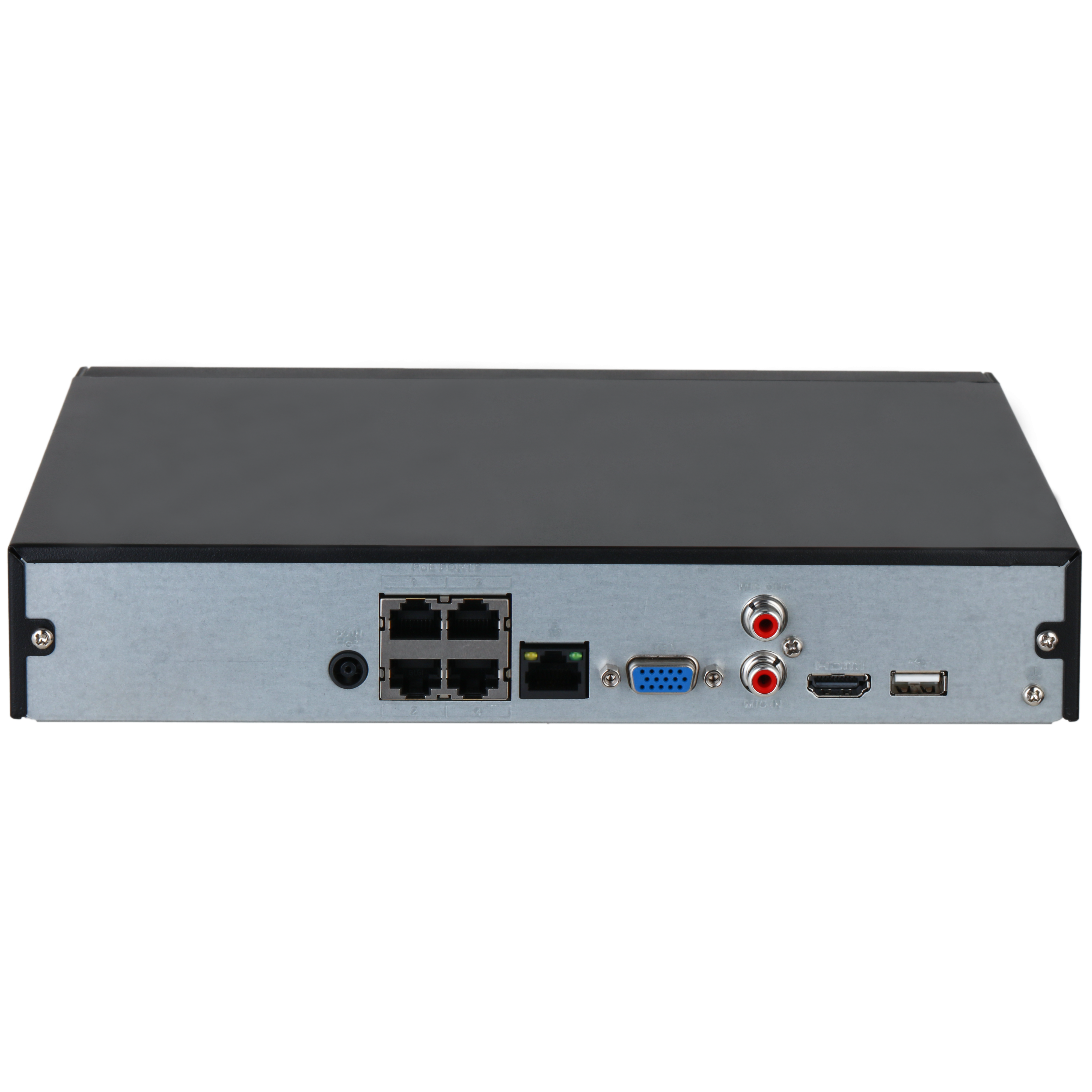

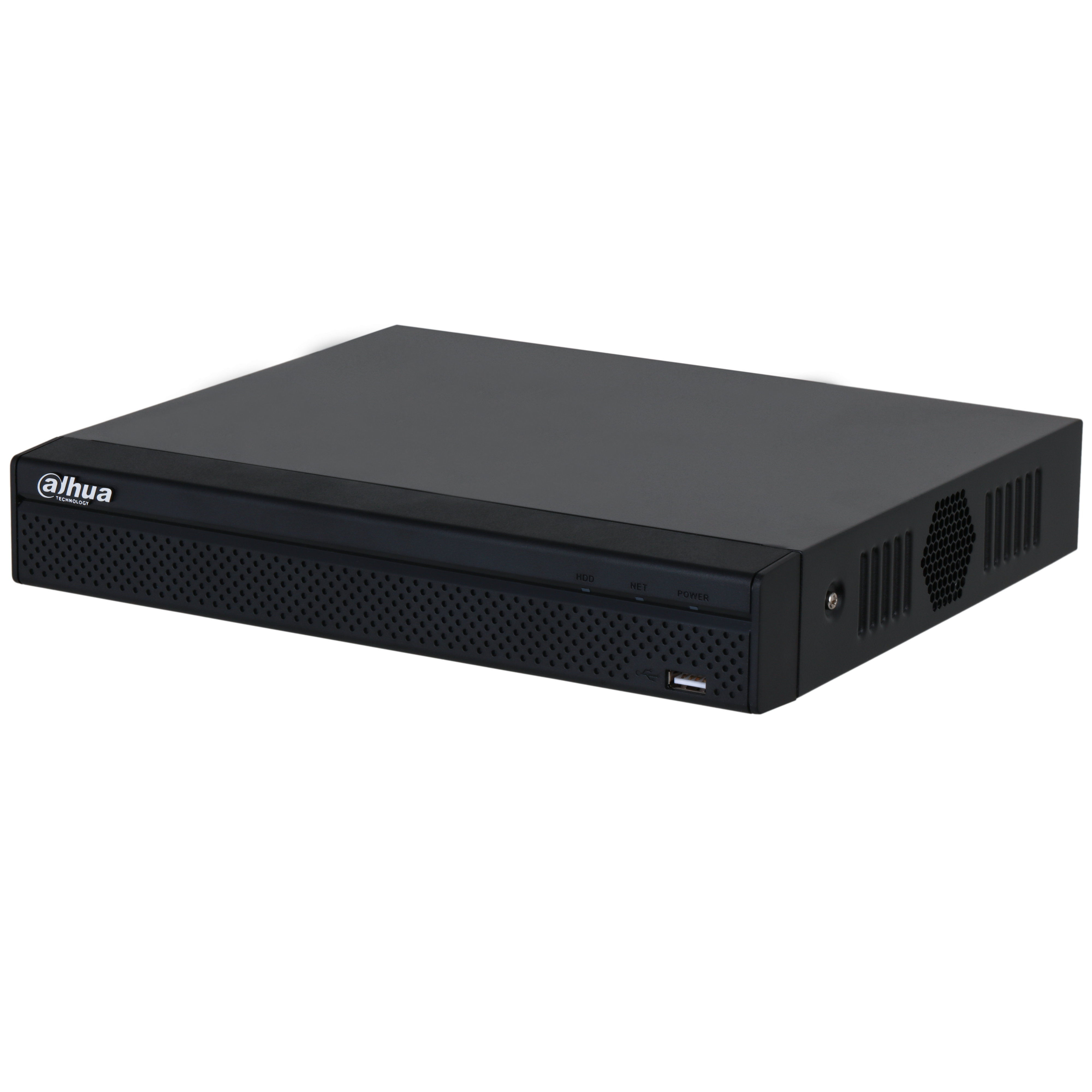

Dahua NVR2104-P-4KS3 4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder

Dahua

Dahua NVR2104-P-4KS3 4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder

(0)

€132,51

Product Overview

The Dahua NVR2104-P-4KS3 is a 4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	53 V DC, 1.22 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Net Weight	0.48 kg (1.06 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR2104-P-4KS3. EAN: 6923172573520. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua NVR4216-EI 16-Channel 2-HDD WizSense Network Video Recorder

Dahua

Dahua NVR4216-EI 16-Channel 2-HDD WizSense Network Video Recorder

(0)

€273,92

Product Overview

The Dahua NVR4216-EI is a 16-Channel 2-HDD WizSense Network Video Recorder. It accepts 16 IP camera channels. Network throughput is specified as AI disabled: incoming/recording/outgoing 256/256/256 Mbps; AI enabled: 180/180/180 Mbps.

Key Features

IP camera capacity: 16
Incoming / recording / outgoing bandwidth: AI disabled: incoming/recording/outgoing 256/256/256 Mbps; AI enabled: 180/180/180 Mbps
Local display connections: 1 HDMI, 1 VGA
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels
Perimeter Protection by Recorder	2 channels; 10 IVS rules per channel
Face Detection by Recorder	1 channel; up to 12 face images/s

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G.726
Access Channel	16
Network Bandwidth	AI disabled: incoming/recording/outgoing 256/256/256 Mbps; AI enabled: 180/180/180 Mbps
Decoding Capability	AI disabled: up to 16-channel 1080p at 30 fps; AI enabled: up to 12-channel 1080p at 30 fps

Connectivity and power

Video Output	1 HDMI; 1 VGA
Interoperability	ONVIF 22.06, Profiles T/S/G; CGI; SDK
Operating System	Embedded Linux
Operating Interface	Web; local GUI
HDMI Resolution	Up to 3840 × 2160
Mobile Phone Access	iOS; Android

Storage and backup

Backup Method	USB device; network

Model / SKU: NVR4216-EI. EAN: 6923172585608. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4108HS-4KS3 8CH Compact 1U 1HDD Lite Network Video Recorder

Dahua

Dahua NVR4108HS-4KS3 8CH Compact 1U 1HDD Lite Network Video Recorder

(0)

€157,41

Product Overview

The Dahua NVR4108HS-4KS3 is an 8CH Compact 1U 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	Total output of NVR is <10 W(without HDD)
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.81 kg (1.79 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4108HS-4KS3. EAN: 6923172570680. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4104HS-P-EI 4CH Compact 1U 4PoE 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4104HS-P-EI 4CH Compact 1U 4PoE 1HDD WizSense Network Video Recorder

(0)

€241,01

Product Overview

The Dahua NVR4104HS-P-EI is a 4CH Compact 1U 4PoE 1HDD WizSense Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.226 A
Power Consumption	< 10 W (without HDD) Total maximum output power of PoE is 45 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)
Net Weight	0.86 kg (1.90 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4104HS-P-EI. EAN: 6923172585103. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4204-4KS2/L 4 Channel 1U 2HDDs Network Video Recorder

Dahua

Dahua NVR4204-4KS2/L 4 Channel 1U 2HDDs Network Video Recorder

(0)

€88,05

Product Overview

The Dahua NVR4204-4KS2/L is a 4 Channel 1U 2HDDs Network Video Recorder. It accepts 4 IP camera channels. Network throughput is specified as Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps. Recording storage: 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature.

Key Features

IP camera capacity: 4
Incoming / recording / outgoing bandwidth: Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
Hard-drive interfaces: 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Local display connections: 1 × VGA, 1 × HDMI
Simultaneous playback: Up to 4 channels for playback
Network interface: 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port General Parameter

Technical Specifications

Recording and video

Multi-channel Playback	Up to 4 channels for playback
Access Channel	4
Network Bandwidth	Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
Decoding Capability	4 × 1080p@30 fps

Connectivity and power

Audio Input	1 × RCA input
Audio Output	1 × RCA output
Alarm Input	4
Alarm Output	2
Operating Conditions	–10 °C to +55 °C (+10 °F to +131 °F)
Video Output	1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
HDMI	1 (supports up to 4K resolution output)
VGA	1
USB	2(1 × front USB2.0; 1 × back USB2.0)
Network Port	1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port General Parameter
Power Supply	DC12 V, 4 A
Power Consumption	< 10 W (HDD not included, idling)
Interoperability	ONVIF(profile T/S/G); CGI; SDK
Installation	Desktop mounted

Storage and backup

Disk Interface	2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Storage	Local HDD; network
Disk Group	Yes

Physical and environmental

Product Dimensions	375 mm × 282.4 mm × 53 mm (14.76" × 11.12" × 2.09") (W × L × H)
Net Weight	1.51 kg (3.33 lb)
Certifications	CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
Operating Humidity	10℅~93℅

Model / SKU: NVR4204-4KS2/L. EAN: 6939554981562. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

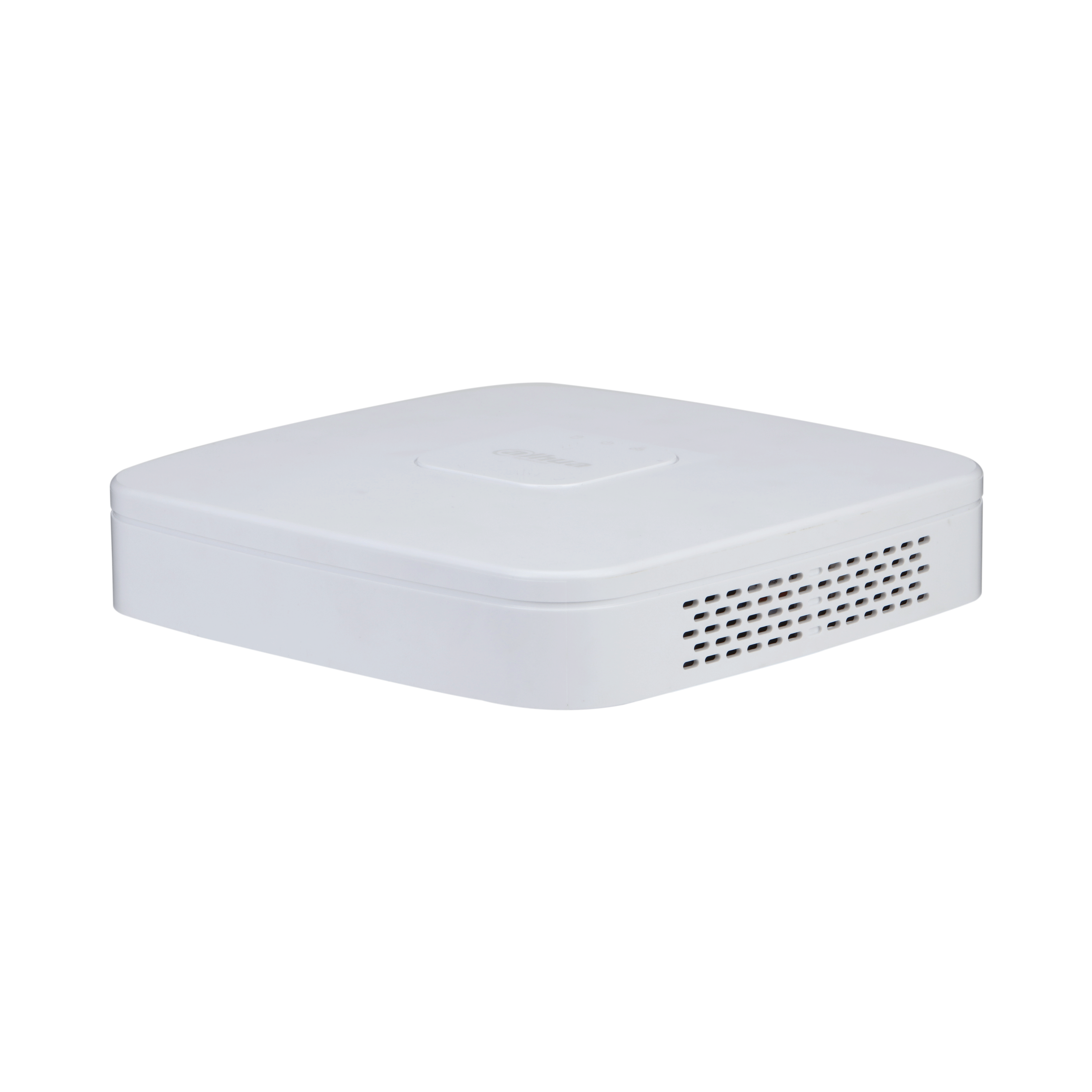

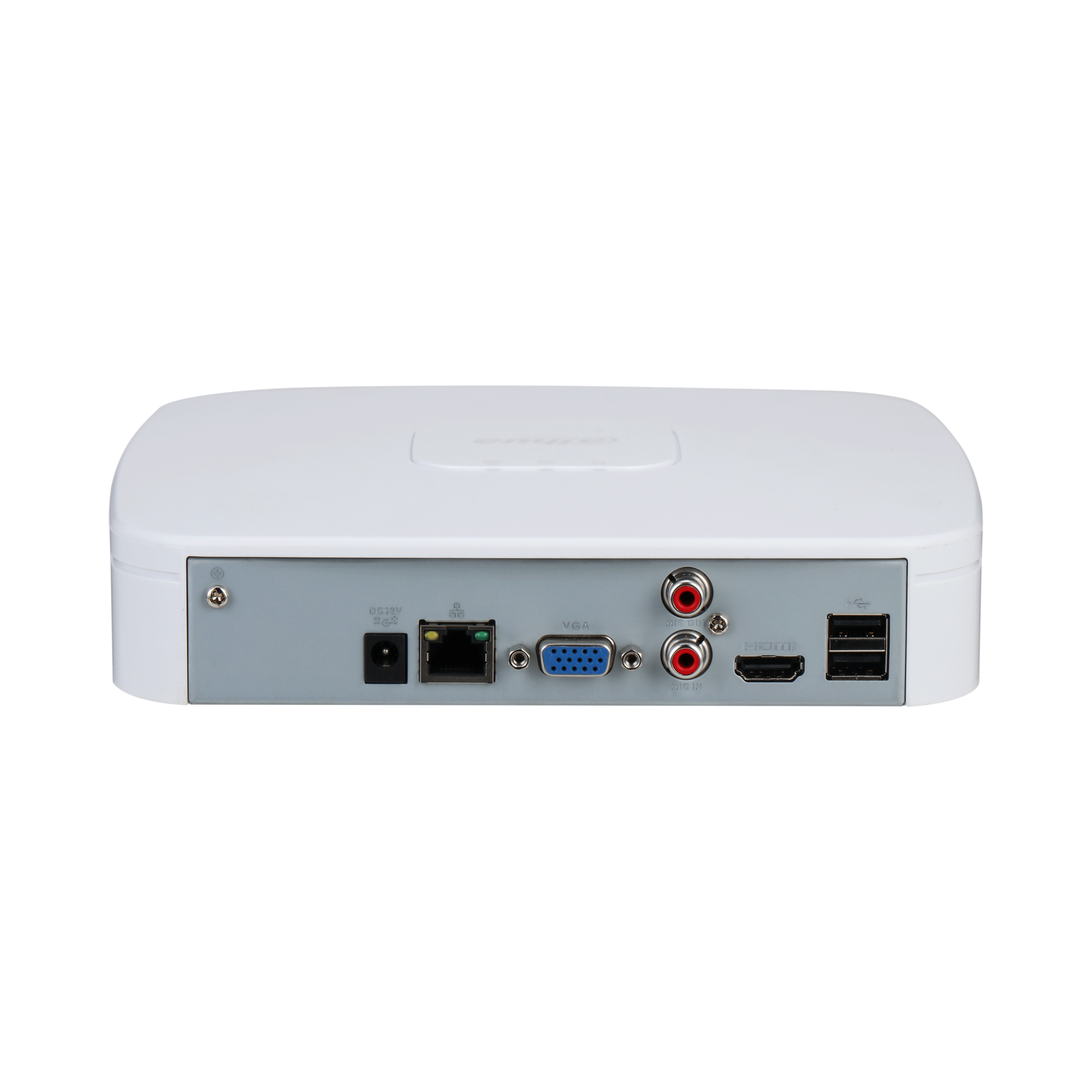

Dahua NVR4104-EI 4-Channel 1-HDD WizSense Network Video Recorder

Dahua

Dahua NVR4104-EI 4-Channel 1-HDD WizSense Network Video Recorder

(0)

€185,87

Product Overview

The Dahua NVR4104-EI is a 4-Channel 1-HDD WizSense Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	<10 W(without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × D × H)
Net Weight	0.45 kg (0.99 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4104-EI. EAN: 6923172584151. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

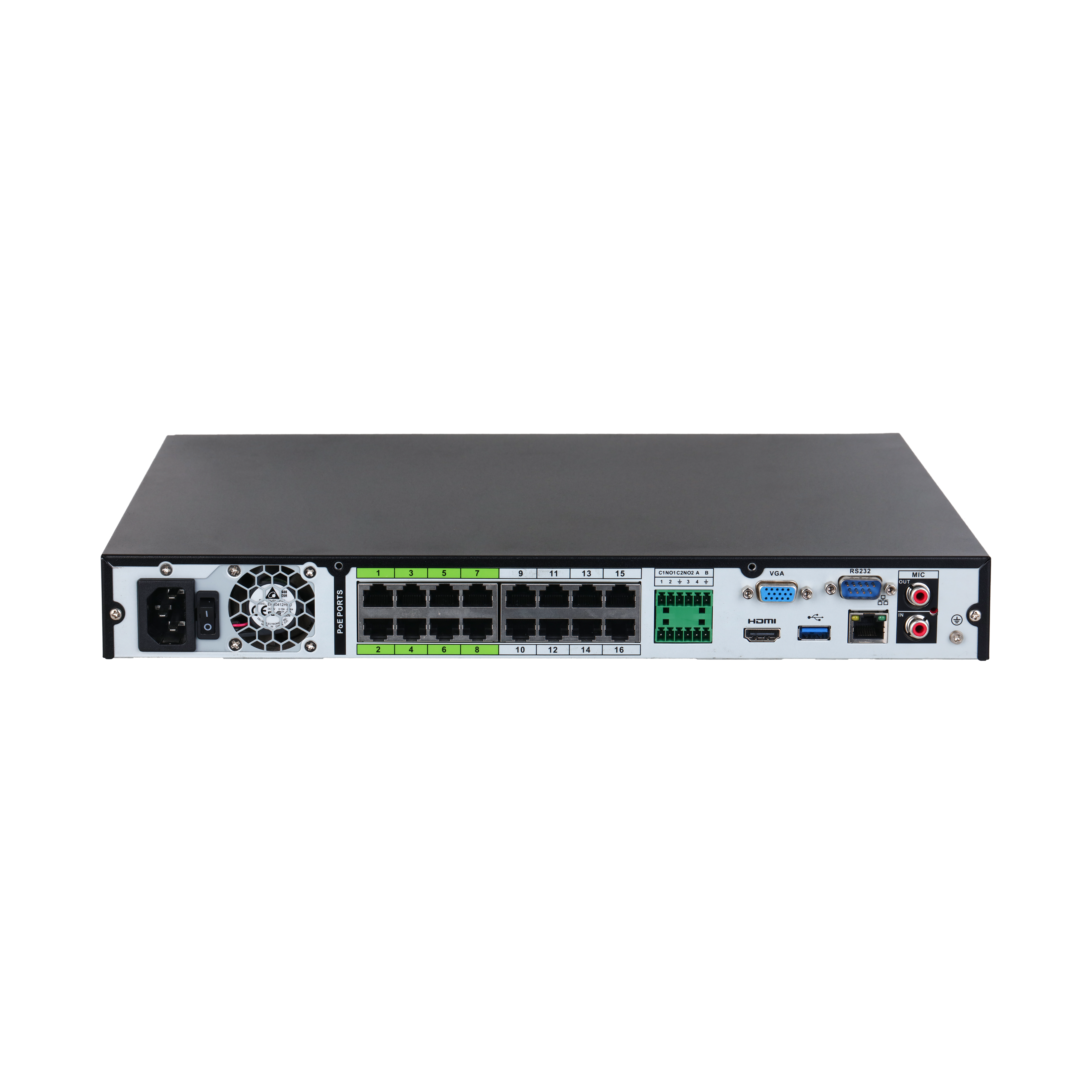

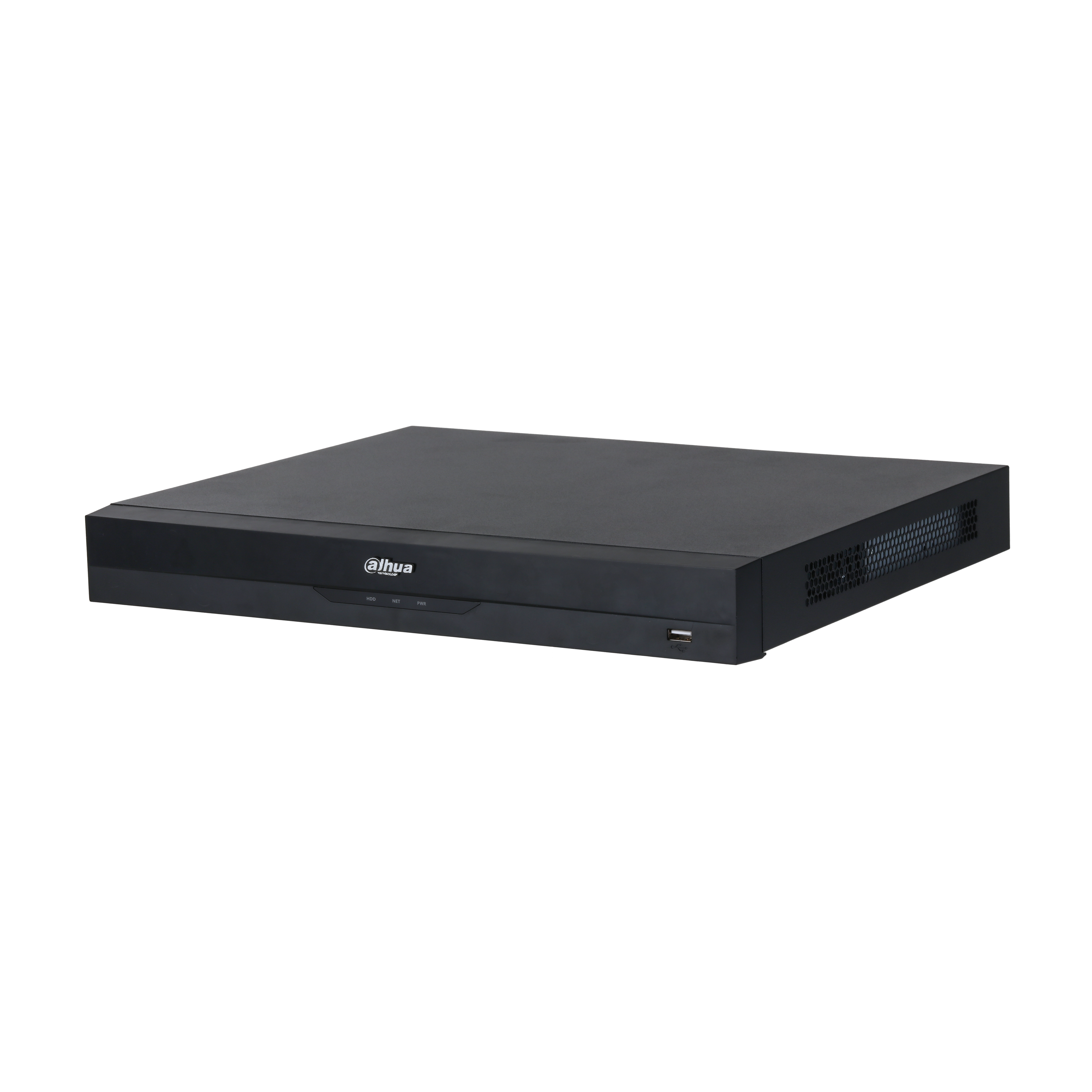

Dahua NVR5216-16P-EI 16-Channel 16-PoE 2-HDD WizSense Network Video Recorder

Dahua

Dahua NVR5216-16P-EI 16-Channel 16-PoE 2-HDD WizSense Network Video Recorder

(0)

€531,83

Product Overview

The Dahua NVR5216-16P-EI is a 16-Channel 16-PoE 2-HDD WizSense Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing. Recording storage: 2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; SMD Plus.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Hard-drive interfaces: 2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 VGA, 1 HDMI, 720 HDMI
Recorder-side AI: Face detection; face recognition; perimeter protection; SMD Plus
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (32 targets/s) Video Metadata
Perimeter Performance AI by Recorder (Number of Channels)	4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (16 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AcuPick Performance of AI by Camera (Number of Channels)	Max. 16-channel, 1 combined event per channel/s
AI by Recorder	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
Video Output	1 VGA, 1 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 47-63 Hz
Power Consumption	Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
Interoperability	ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H)
Net Weight	2.66 kg (5.86 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR5216-16P-EI. EAN: 6923172589828. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

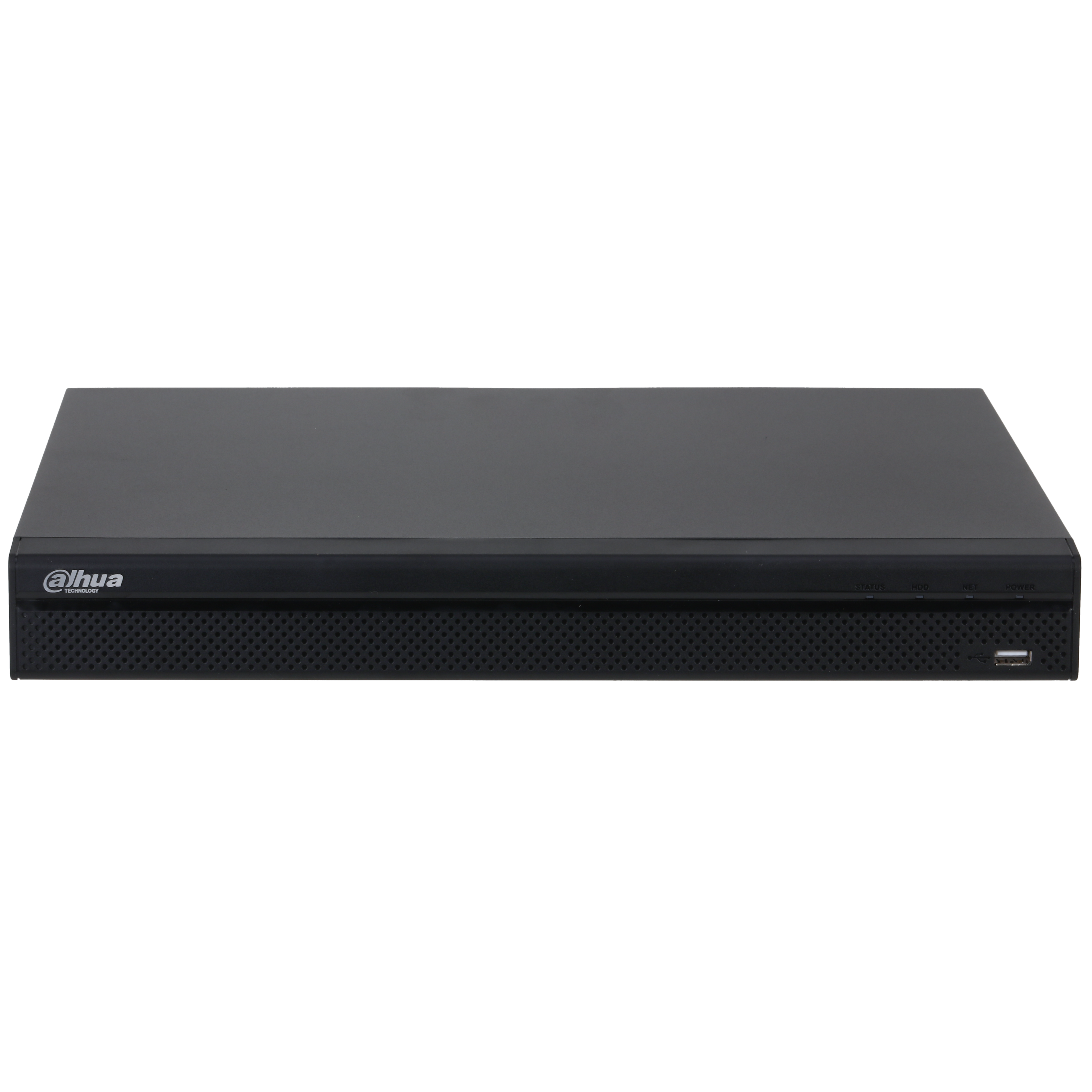

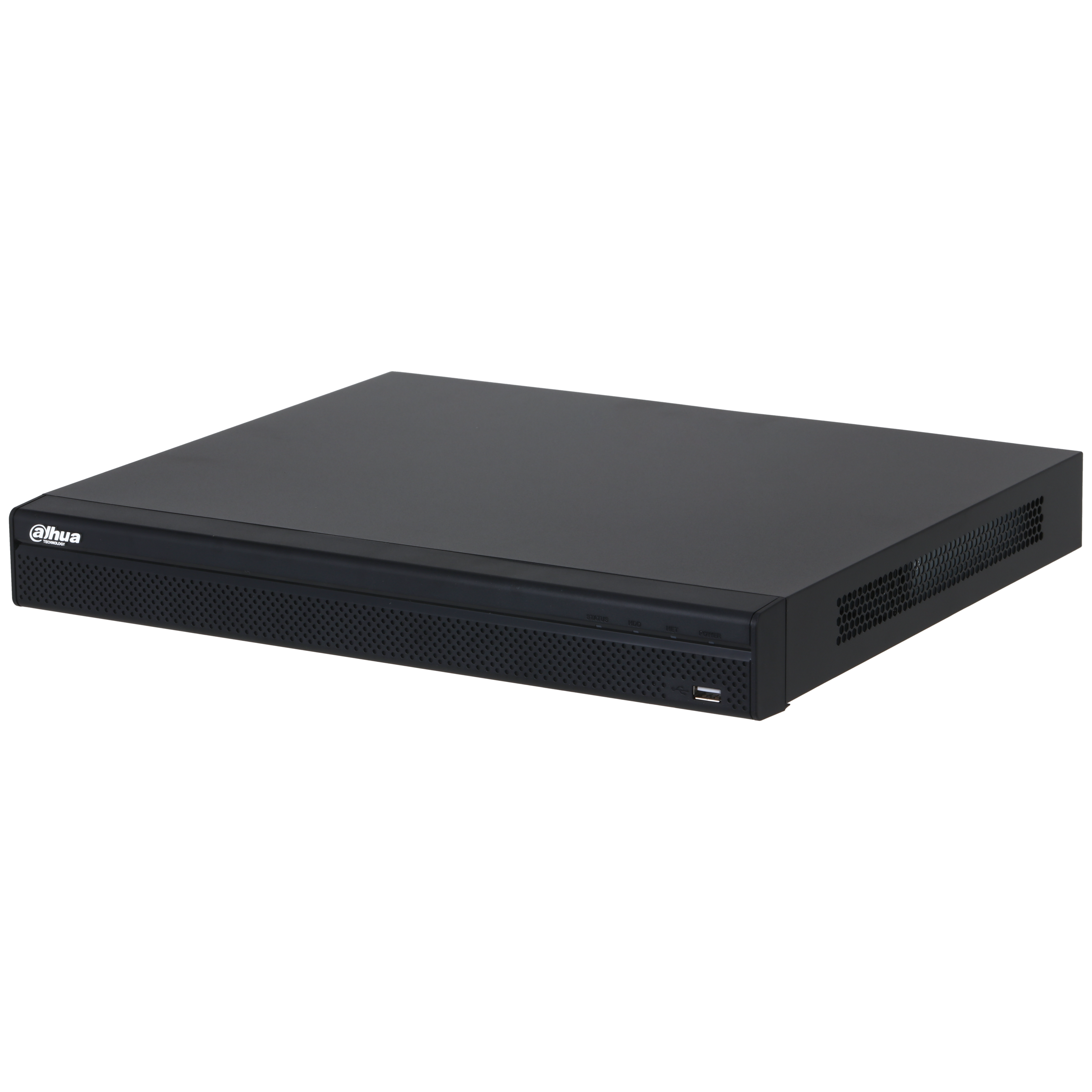

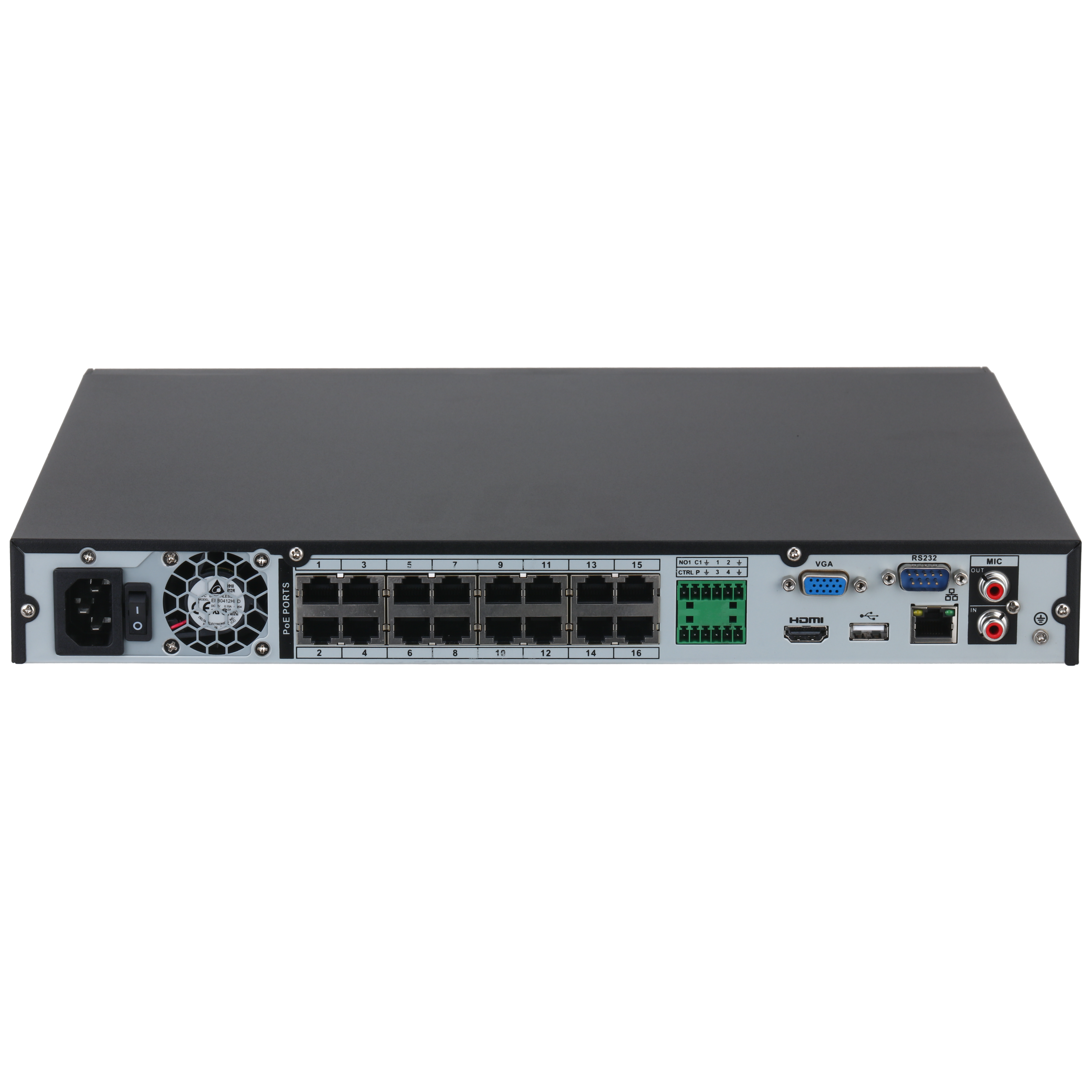

Dahua NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder

Dahua

Dahua NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder

(0)

€385,09

Product Overview

The Dahua NVR4216-16P-4KS3 is a 16CH 1U 16PoE 2HDDs Lite Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels (1-channel 12 V 1 A output）
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 327.9 mm × 53.0 mm (14.76" × 12.91" × 2.09") (W × D × H)
Net Weight	2.60 kg (5.73 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4216-16P-4KS3. EAN: 6923172572578. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

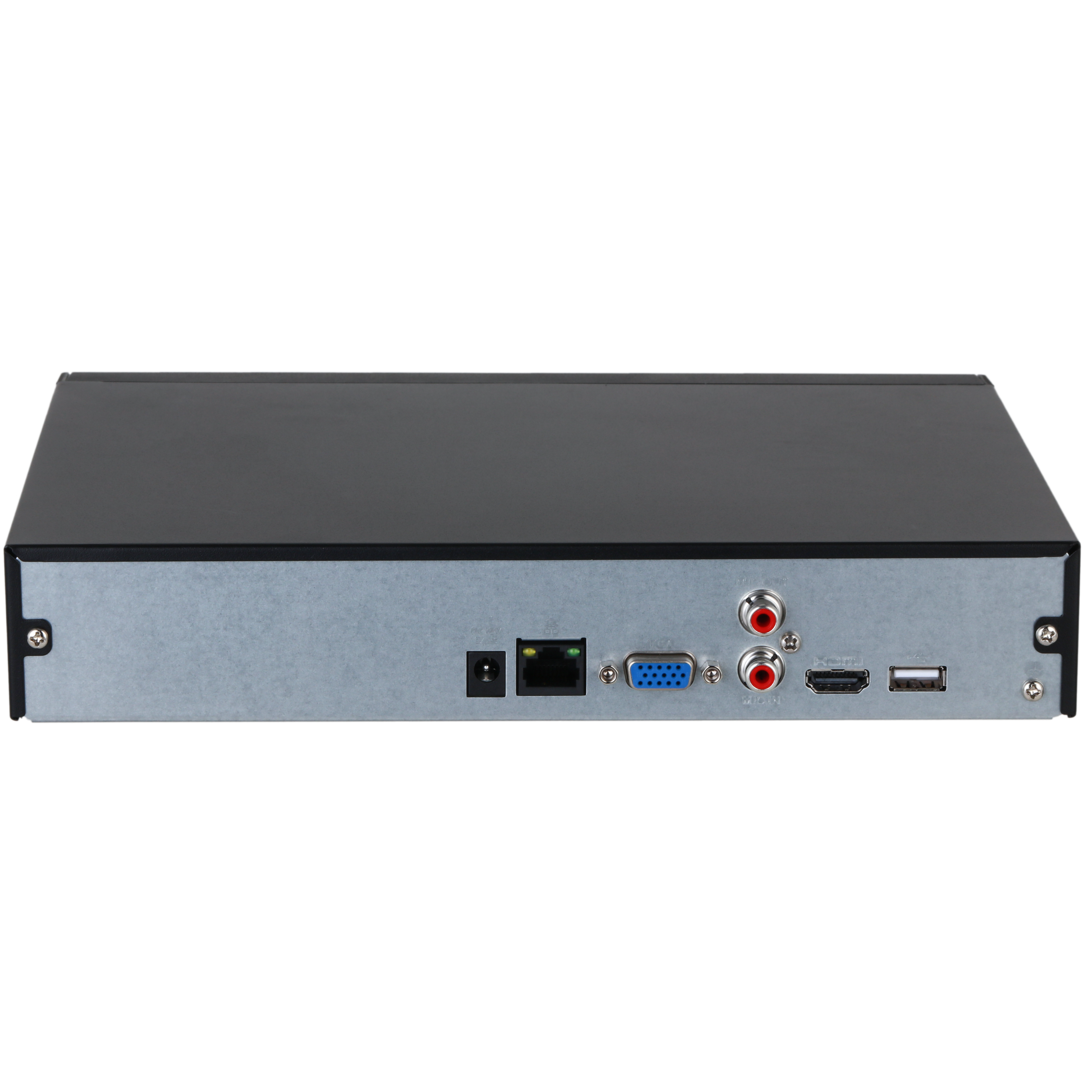

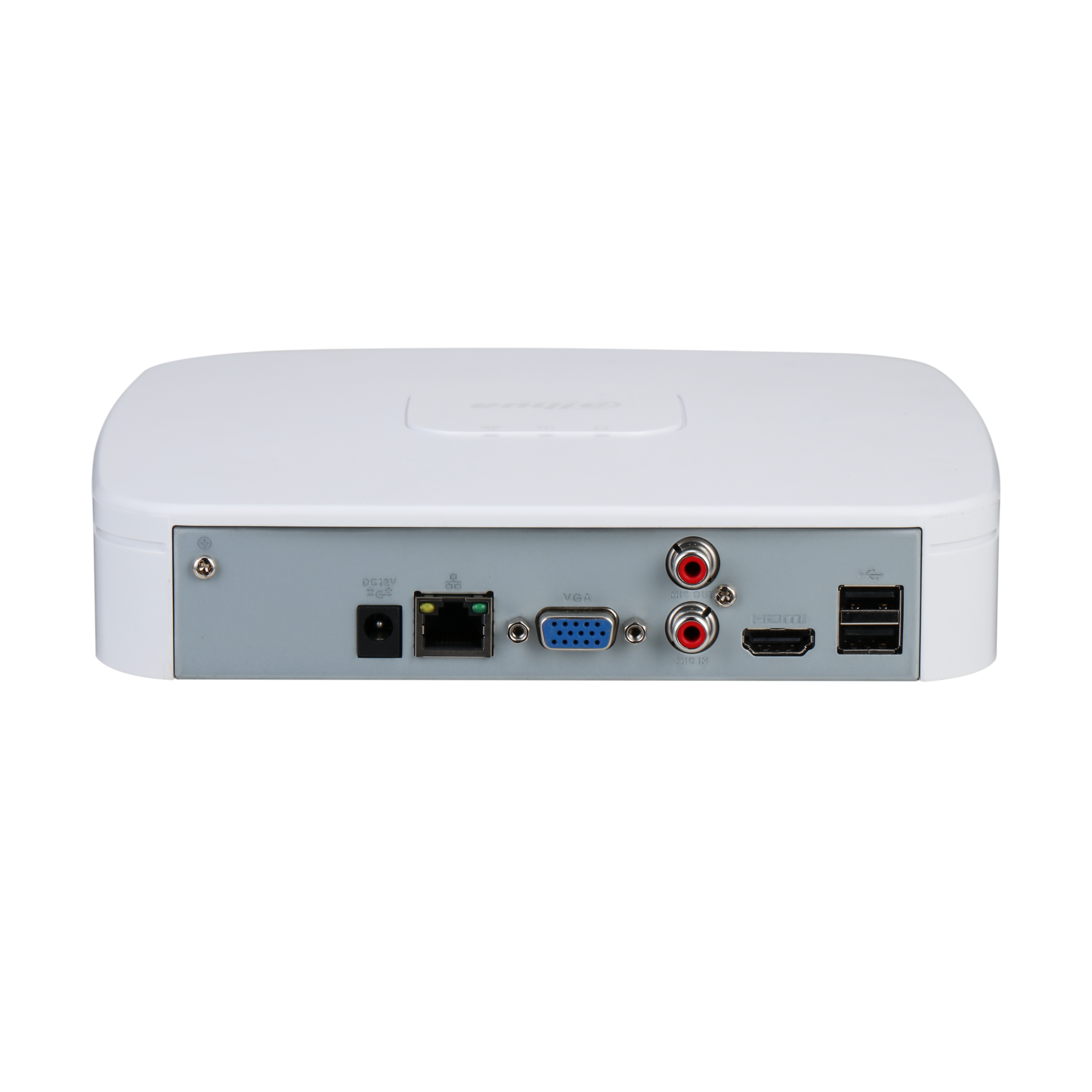

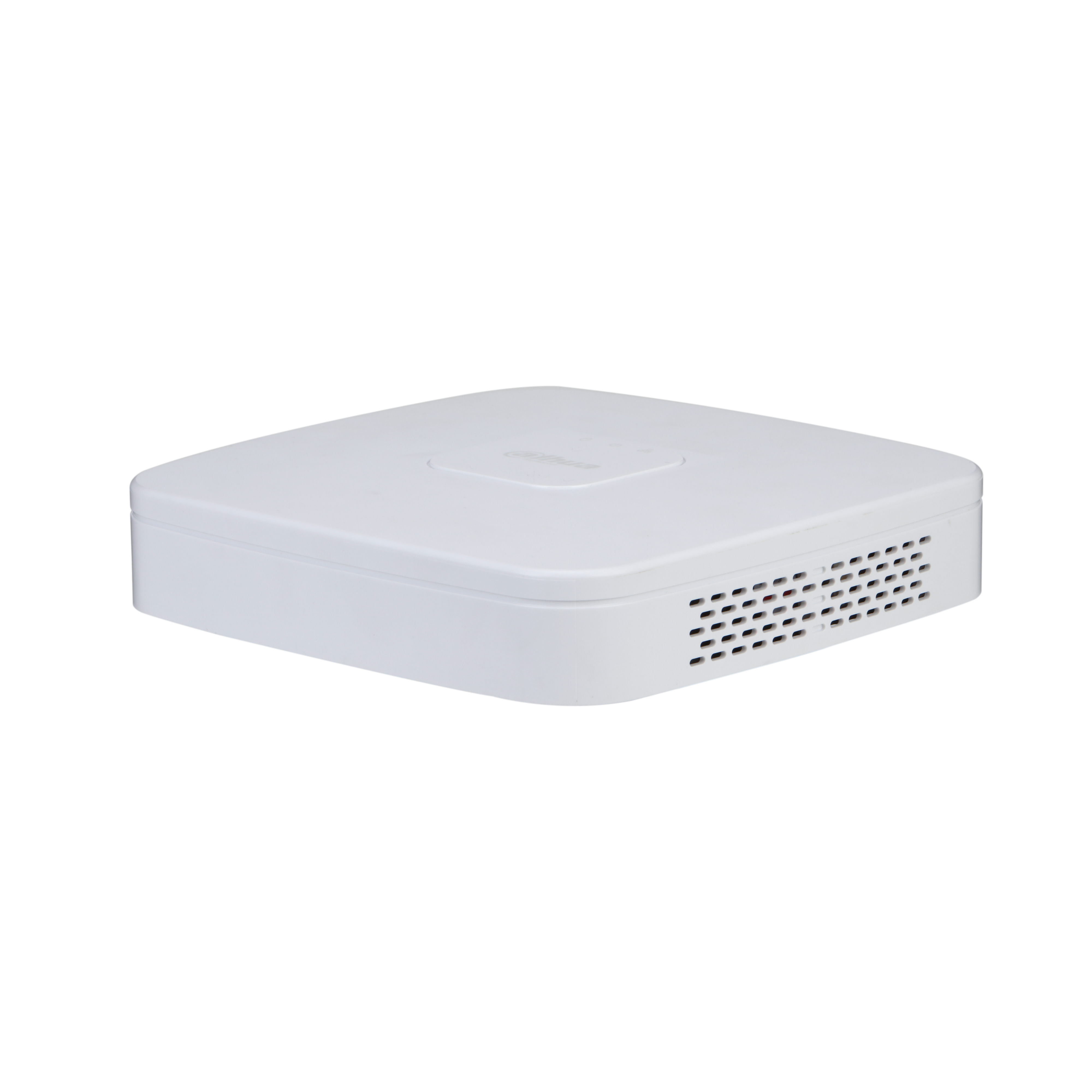

Dahua NVR2108HS-4KS3 8CH Compact 1U 1HDD Lite Network Video Recorder

Dahua

Dahua NVR2108HS-4KS3 8CH Compact 1U 1HDD Lite Network Video Recorder

(0)

€101,39

Product Overview

The Dahua NVR2108HS-4KS3 is an 8CH Compact 1U 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	8 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 1.5 A
Power Consumption	<10 W (without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.85 kg (1.87 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR2108HS-4KS3. EAN: 6923172575548. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

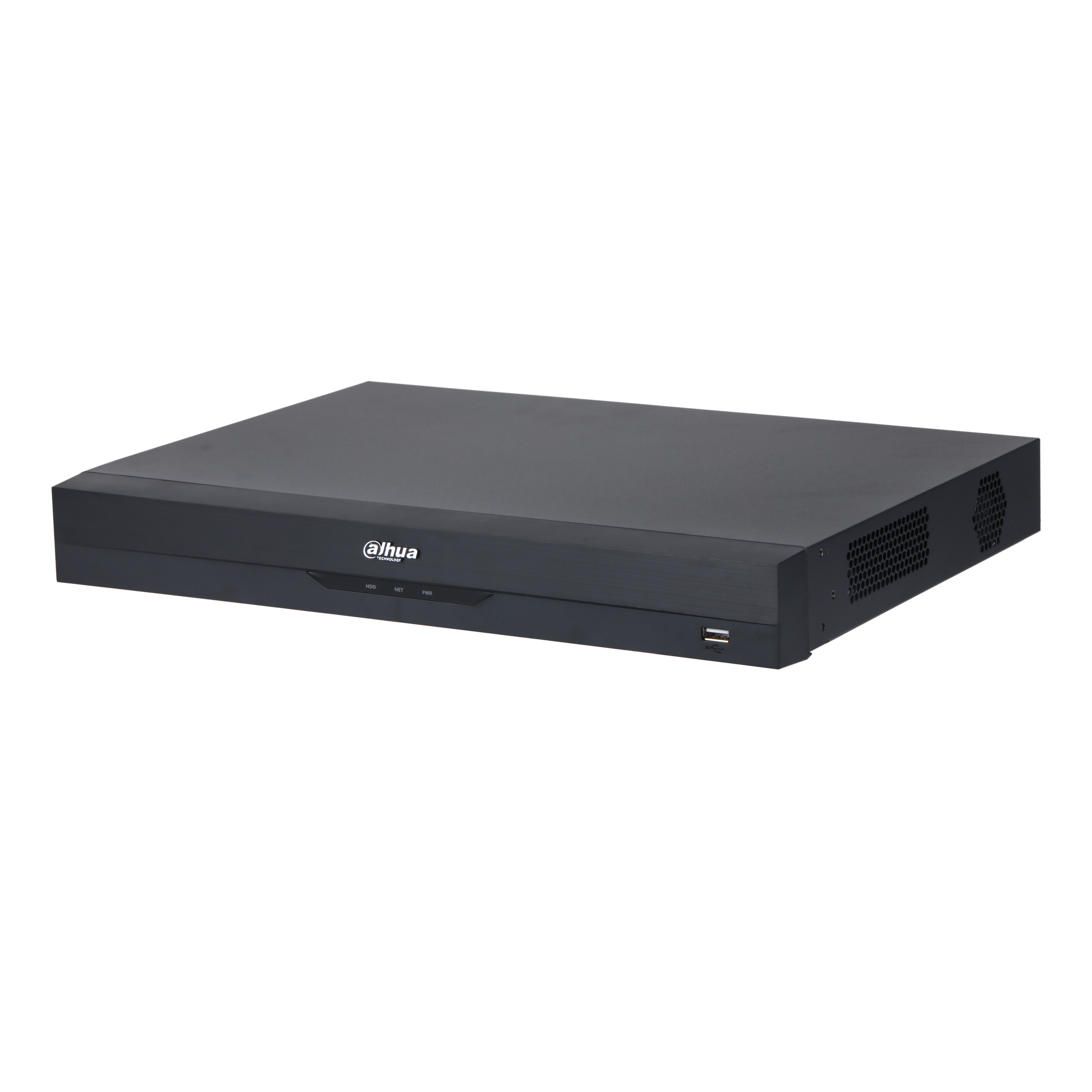

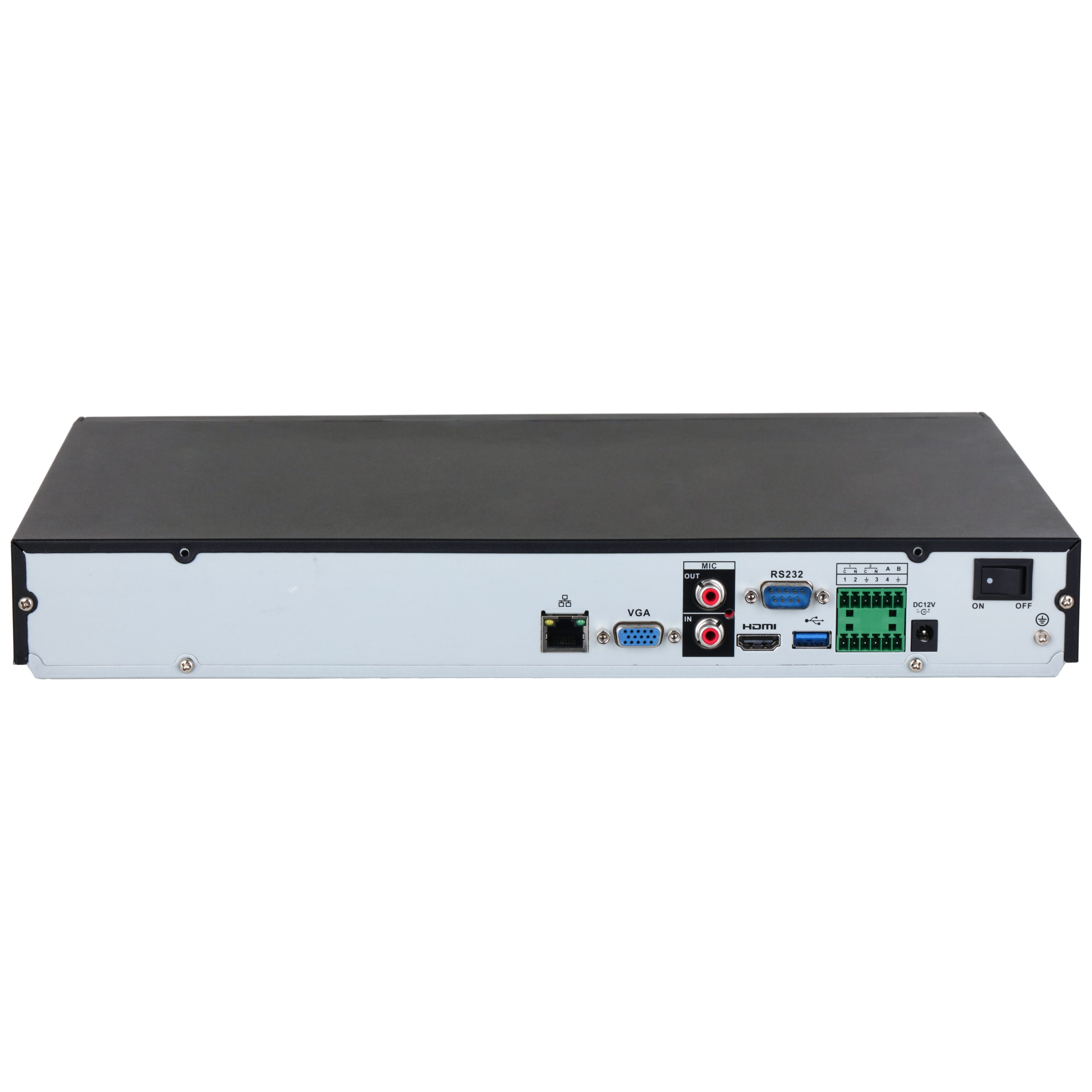

Dahua NVR5232-EI2 32CH 1U 2HDDs WizSense Network Video Recorder

Dahua

Dahua NVR5232-EI2 32CH 1U 2HDDs WizSense Network Video Recorder

(0)

€565,63

Product Overview

The Dahua NVR5232-EI2 is a 32CH 1U 2HDDs WizSense Network Video Recorder. It accepts 32 channels. Network throughput is specified as AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing. Recording storage: 2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature. Recorder-side analytics support Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm.

Key Features

IP camera capacity: 32 channels
Incoming / recording / outgoing bandwidth: AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Hard-drive interfaces: 2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature.
Local display connections: 1 VGA, 1 HDMI, 720 HDMI
Recorder-side AI: Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (64 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	8 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (32 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	4 channels (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s 2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s
Face Database Capacity	Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AcuPick Performance of AI by Camera (Number of Channels)	All channels (32 targets/s)
AI by Recorder	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick; WizSeek; Text-Defined Alarm
AI by Camera	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection; AcuPick

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	32 channels
Network Bandwidth	AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
Video Output	1 VGA, 1 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 4 A
Power Consumption	Total output of NVR is ≤ 10 W (without HDD)
Interoperability	ONVIF 25.12 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports, each disk can contain up to 26 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 284.8 mm × 56.0 mm (14.76" × 11.21" × 2.20") (W × D × H)
Net Weight	1.55 kg (3.42 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR5232-EI2. EAN: 6937552405141. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

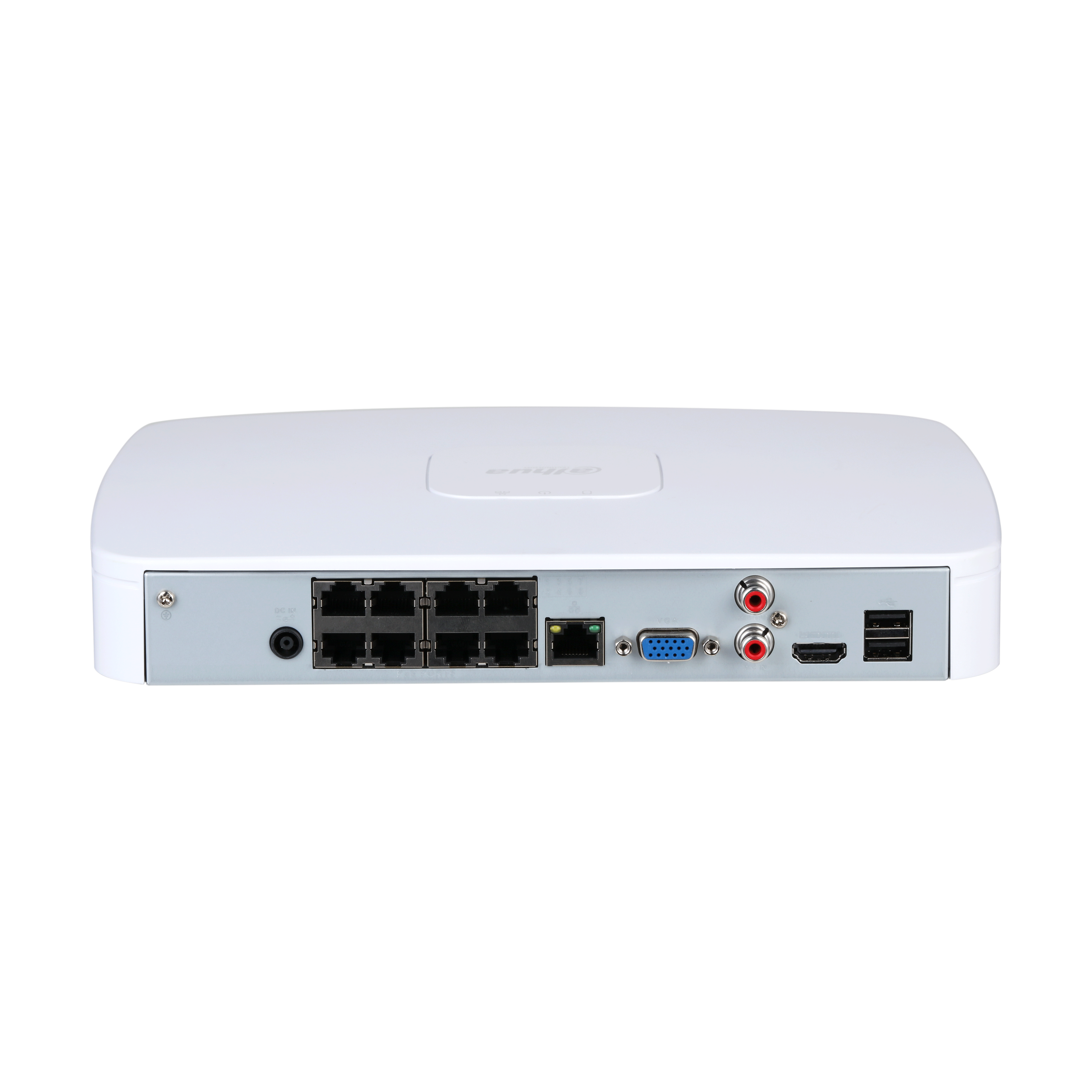

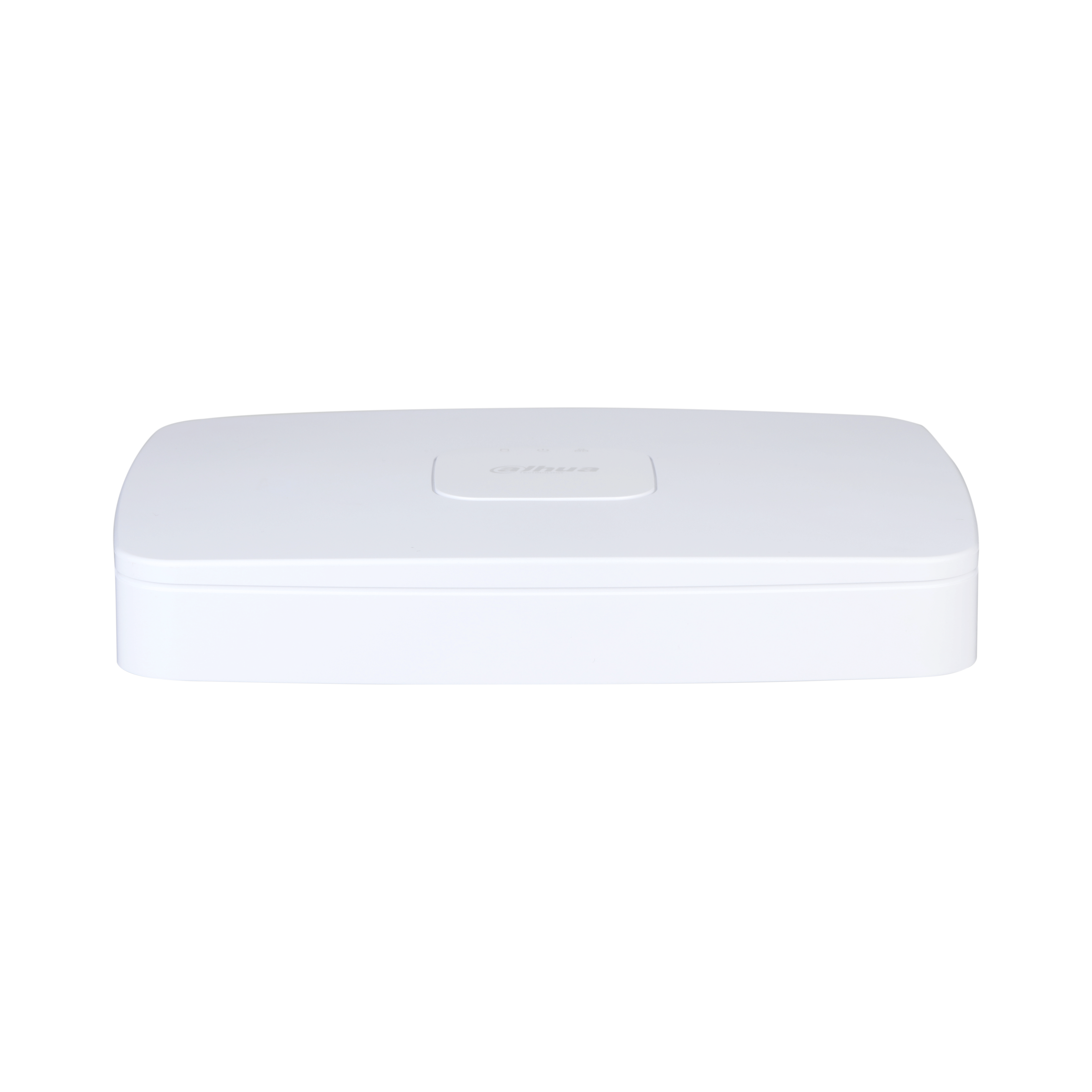

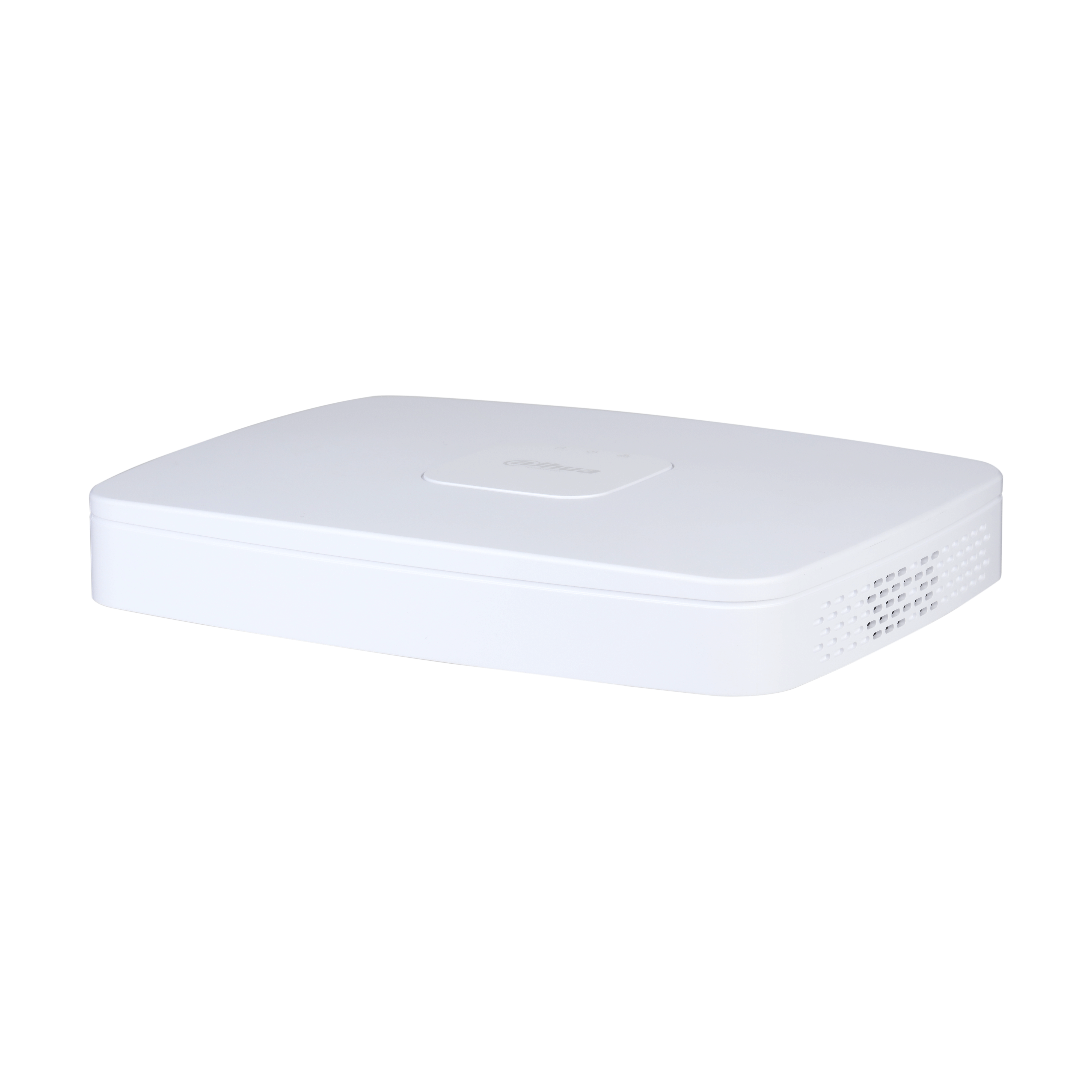

Dahua NVR4108-8P-EI 8CH Smart 1U 8PoE 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4108-8P-EI 8CH Smart 1U 8PoE 1HDD WizSense Network Video Recorder

(0)

€299,71

Product Overview

The Dahua NVR4108-8P-EI is an 8CH Smart 1U 8PoE 1HDD WizSense Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.812 A
Power Consumption	< 10 W (without HDD) Total maximum output power of PoE is 78 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	270.0 mm × 206.2 mm × 47.5 mm (10.63" × 8.12" × 1.87") (W × D × H)
Net Weight	0.70 kg (1.54 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4108-8P-EI. EAN: 6923172585837. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR2104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

Dahua

Dahua NVR2104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

(0)

€136,96

Product Overview

The Dahua NVR2104HS-P-4KS3 is a 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.22 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.85 kg (1.87 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR2104HS-P-4KS3. EAN: 6923172573537. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4208-4KS3 8CH 1U 2HDDs Lite Network Video Recorder

Dahua

Dahua NVR4208-4KS3 8CH 1U 2HDDs Lite Network Video Recorder

(0)

€182,32

Product Overview

The Dahua NVR4208-4KS3 is an 8CH 1U 2HDDs Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels (1-channel 12 V 1 A output）
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 4 A
Power Consumption	Total output of NVR is <10 W(without HDD)
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 282.9 mm × 53.0 mm (14.76" × 11.14" × 2.09") (W × D × H)
Net Weight	1.49 kg (3.28 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4208-4KS3. EAN: 6923172573773. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR4208-8P-EI 8CH 1U 8PoE 2HDDs WizSense Network Video Recorder

Dahua

Dahua NVR4208-8P-EI 8CH 1U 8PoE 2HDDs WizSense Network Video Recorder

(0)

€354,85

Product Overview

The Dahua NVR4208-8P-EI is an 8CH 1U 8PoE 2HDDs WizSense Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing. Recording storage: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Hard-drive interfaces: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 47-63 Hz
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H)
Net Weight	2.51 kg (5.53 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4208-8P-EI. EAN: 6923172585851. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR4116HS-4KS3 16CH Compact 1U 1HDD Lite Network Video Recorder

Dahua

Dahua NVR4116HS-4KS3 16CH Compact 1U 1HDD Lite Network Video Recorder

(0)

€170,76

Product Overview

The Dahua NVR4116HS-4KS3 is a 16CH Compact 1U 1HDD Lite Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 16 channels
Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	16 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 2 A
Power Consumption	Total output of NVR is <10 W(without HDD)
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.81 kg (1.79 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4116HS-4KS3. EAN: 6923172570697. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR4208-8P-4KS3 8CH 1U 8PoE 2HDDs Lite Network Video Recorder

Dahua

Dahua NVR4208-8P-4KS3 8CH 1U 8PoE 2HDDs Lite Network Video Recorder

(0)

€289,93

Product Overview

The Dahua NVR4208-8P-4KS3 is an 8CH 1U 8PoE 2HDDs Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (12 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	6 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	8 channels
Network Bandwidth	AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels (1-channel 12 V 1 A output）
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	Total output of NVR is <10 W(without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Disk Group	Yes

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	375.0 mm × 327.9 mm × 53.0 mm (14.76" × 12.91" × 2.09") (W × D × H)
Net Weight	2.47 kg (5.45 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4208-8P-4KS3. EAN: 6923172569363. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

Dahua

Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

(0)

€96,94

Product Overview

The Dahua NVR2108-4KS3 is an 8CH Smart 1U 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 8 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 8 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels)	All channels (4 targets/s)
AI by Recorder	SMD
AI by Camera	Perimeter protection; SMD

Recording and video

Multi-channel Playback	Up to 8 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Access Channel	8 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 1.5 A
Power Consumption	<10 W (without HDD)
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Net Weight	0.45 kg (0.99 lb)
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR2108-4KS3. EAN: 6923172507846. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Low in stock

Receives in 5 days.

Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

Dahua

Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

(0)

€179,65

Product Overview

The Dahua NVR4104HS-P-4KS3 is a 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (8 targets/s)
Perimeter Performance of AI by Camera (Number of Channels)	4 channels
AI by Recorder	SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12 V 1 A output is optional)
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.22 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Net Weight	0.87 kg (1.92 lb)
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4104HS-P-4KS3. EAN: 6923172573803. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

Dahua NVR4104-P-EI 4CH Smart 1U 4PoE 1HDD WizSense Network Video Recorder

Dahua

Dahua NVR4104-P-EI 4CH Smart 1U 4PoE 1HDD WizSense Network Video Recorder

(0)

€233,90

Product Overview

The Dahua NVR4104-P-EI is a 4CH Smart 1U 4PoE 1HDD WizSense Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing. Recording storage: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

IP camera capacity: 4 channels
Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Hard-drive interfaces: 1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Local display connections: 1 HDMI, 1 VGA, 720 VGA
Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
Simultaneous playback: Up to 4 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder	Face detection; face recognition; perimeter protection; and SMD
AI by Camera	Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback	Up to 4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	1-channel RCA
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI	1
VGA	1
USB	2 (2 rear USB 2.0 ports)
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	53 VDC, 1.226 A
Power Consumption	< 10 W (without HDD) Total maximum output power of PoE is 45 W, the maximum output power of a single port is 25.5 W
Interoperability	ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface	1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × D × H)
Net Weight	0.50 kg (1.10 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR4104-P-EI. EAN: 6923172585615. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Dahua NVR5432-EI WizSense 32CH Network Video Recorder 4HDD

Dahua

Dahua NVR5432-EI WizSense 32CH Network Video Recorder 4HDD

(0)

€600,31

Product Overview

The Dahua NVR5432-EI is a WizSense 32CH Network Video Recorder 4HDD. It accepts 32 channels. Network throughput is specified as AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing. Recording storage: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; SMD Plus.

Key Features

IP camera capacity: 32 channels
Incoming / recording / outgoing bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Hard-drive interfaces: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Local display connections: 2 VGA, 2 HDMI, 720 HDMI
Recorder-side AI: Face detection; face recognition; perimeter protection; SMD Plus
Simultaneous playback: Up to 16 channels
Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder	8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera	All channels (32 targets/s) Video Metadata
Perimeter Performance AI by Recorder (Number of Channels)	4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (16 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels)	1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity	Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AcuPick Performance of AI by Camera (Number of Channels)	Max. 32-channel, 1 combined event per channel/s
AI by Recorder	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection

Recording and video

Multi-channel Playback	Up to 16 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Access Channel	32 channels
Network Bandwidth	AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Decoding Capability	AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps

Connectivity and power

Audio Input	1-channel RCA
Audio Output	2-channel RCA
Alarm Input	16 channels
Alarm Output	6 channels (1-channel 12 V 1 A output）
Video Output	2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2
HDMI	2
VGA	2
USB	3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
Network Port	2 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	100–240 VAC, 50-60 Hz
Power Consumption	Total output of NVR is ≤ 13 W (without HDD)
Interoperability	ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Storage and backup

Disk Interface	4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Disk Group	YES

Physical and environmental

Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions	440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × 2.76") (W × D × H)
Net Weight	4.74 kg (10.45 lb)
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 4 HDDs eSATA Storage
Operating Humidity	10%–93% (RH), non-condensing

Model / SKU: NVR5432-EI. EAN: 6923172589842. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

Explore Related Collections
