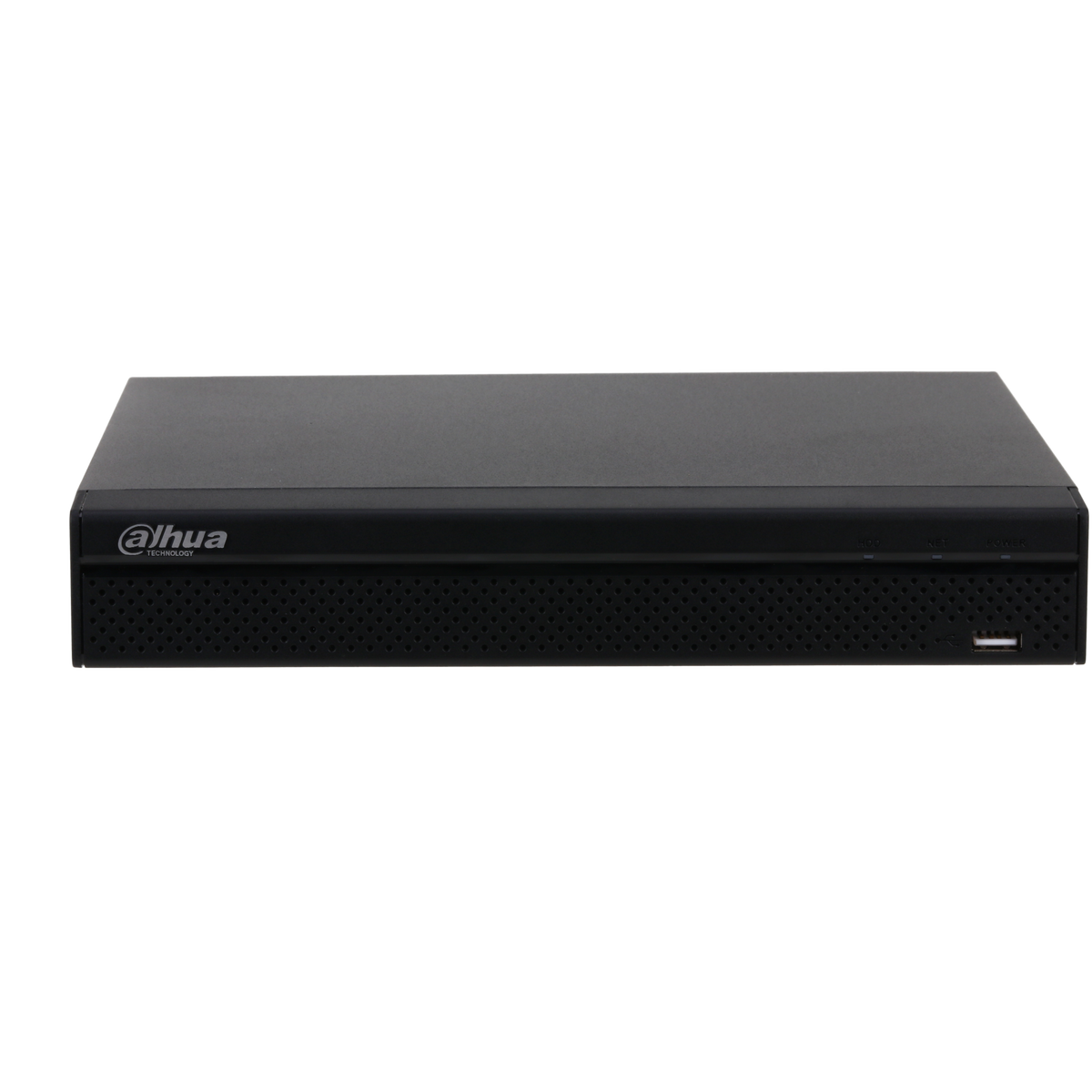

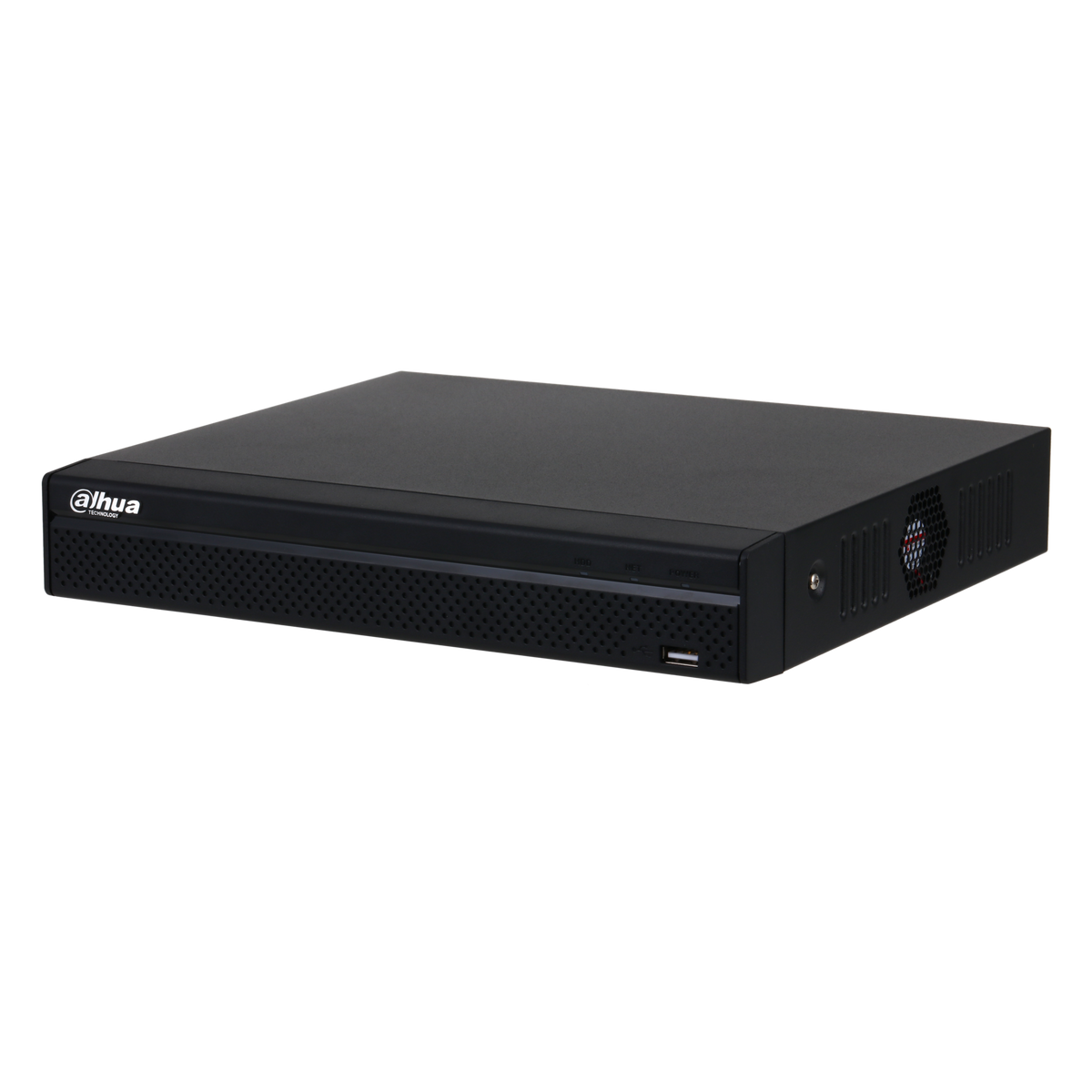

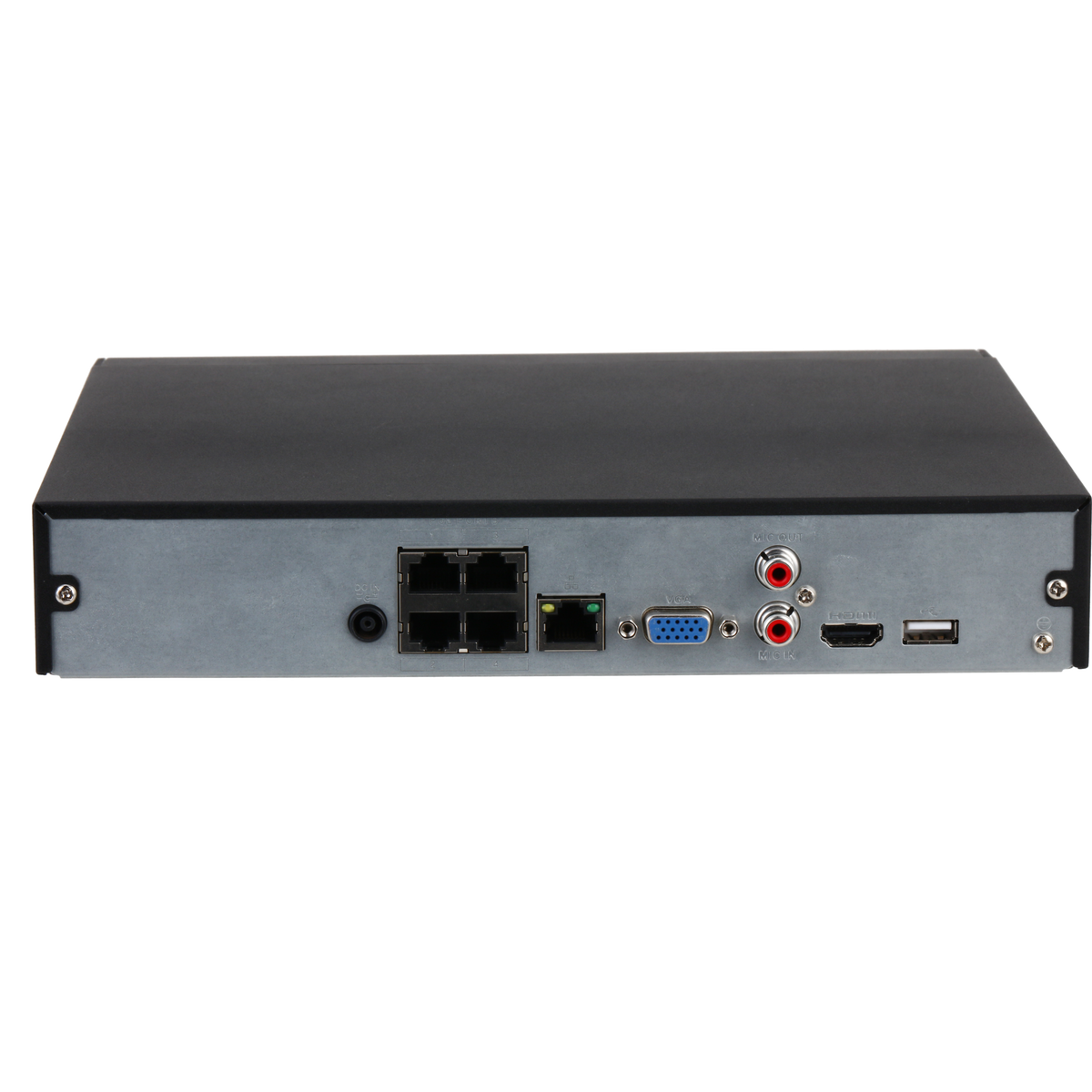

Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder
Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder
Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

Dahua

Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

(0)
SKU: NVR4104HS-P-4KS3
Barcode: 6923172573803

€179,65

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 29 October and 31 October.

In stock and ready to ship

30 days satisfaction guarantee
Dahua NVR4104HS-P-4KS3 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder

€179,65

€179,65

Product Overview

The Dahua NVR4104HS-P-4KS3 is a 4CH Compact 1U 4PoE 1HDD Lite Network Video Recorder. It accepts 4 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

  • IP camera capacity: 4 channels
  • Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
  • Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
  • Local display connections: 1 HDMI, 1 VGA, 720 VGA
  • Recorder-side AI: SMD
  • Simultaneous playback: Up to 4 channels
  • Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264

Technical Specifications

Intelligent analytics

SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera All channels (8 targets/s)
Perimeter Performance of AI by Camera (Number of Channels) 4 channels
AI by Recorder SMD
AI by Camera Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback Up to 4 channels
Video Compression Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM; G726
Access Channel 4 channels
Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps

Connectivity and power

Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels is optional)
Alarm Output NA (1-channel 12 V 1 A output is optional)
Video Output 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI 1
VGA 1
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply 53 VDC, 1.22 A
Power Consumption Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Interoperability ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions 260.0 mm × 232.5 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H)
Net Weight 0.87 kg (1.92 lb)
Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity 10%–93% (RH), non-condensing

Model / SKU: NVR4104HS-P-4KS3. EAN: 6923172573803. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
