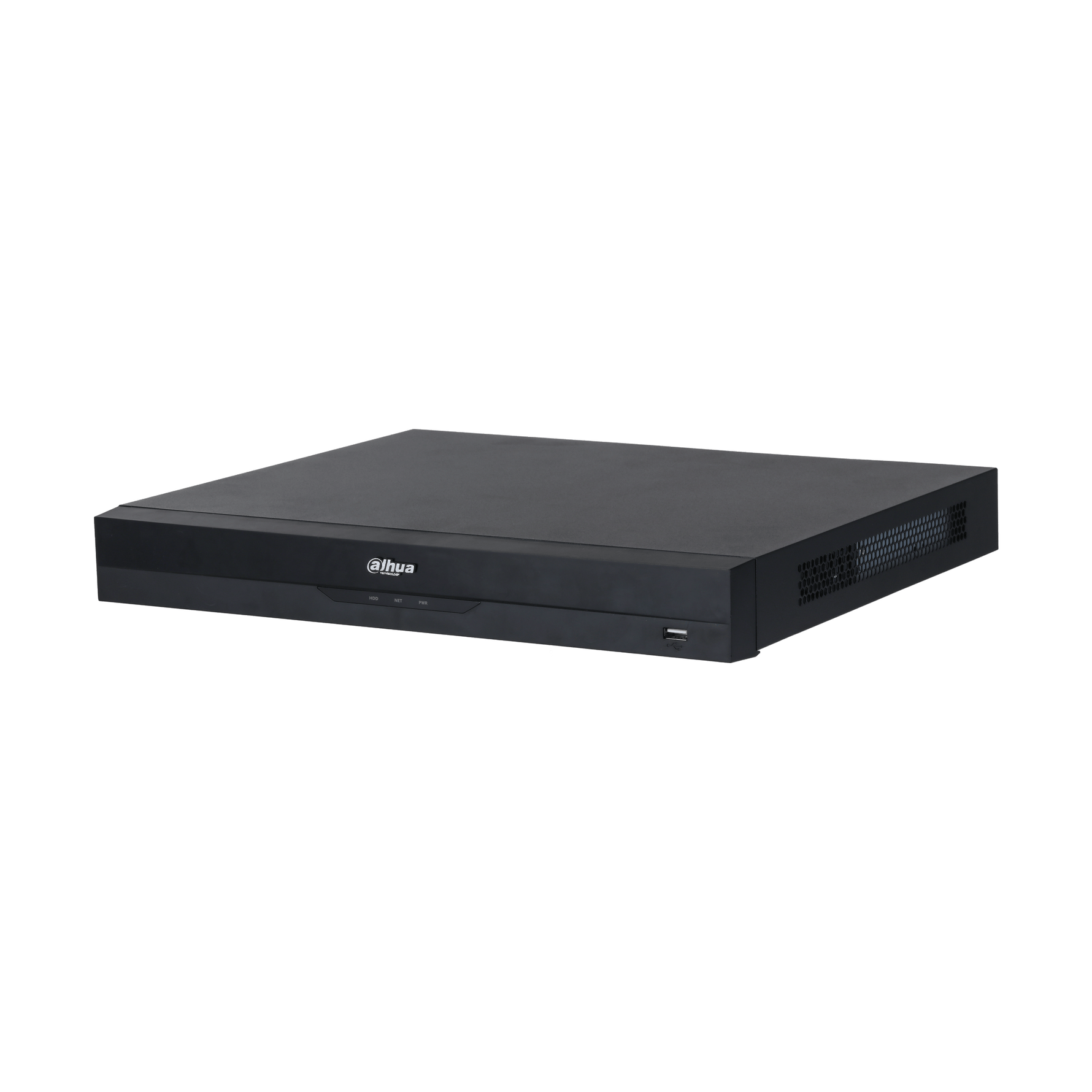

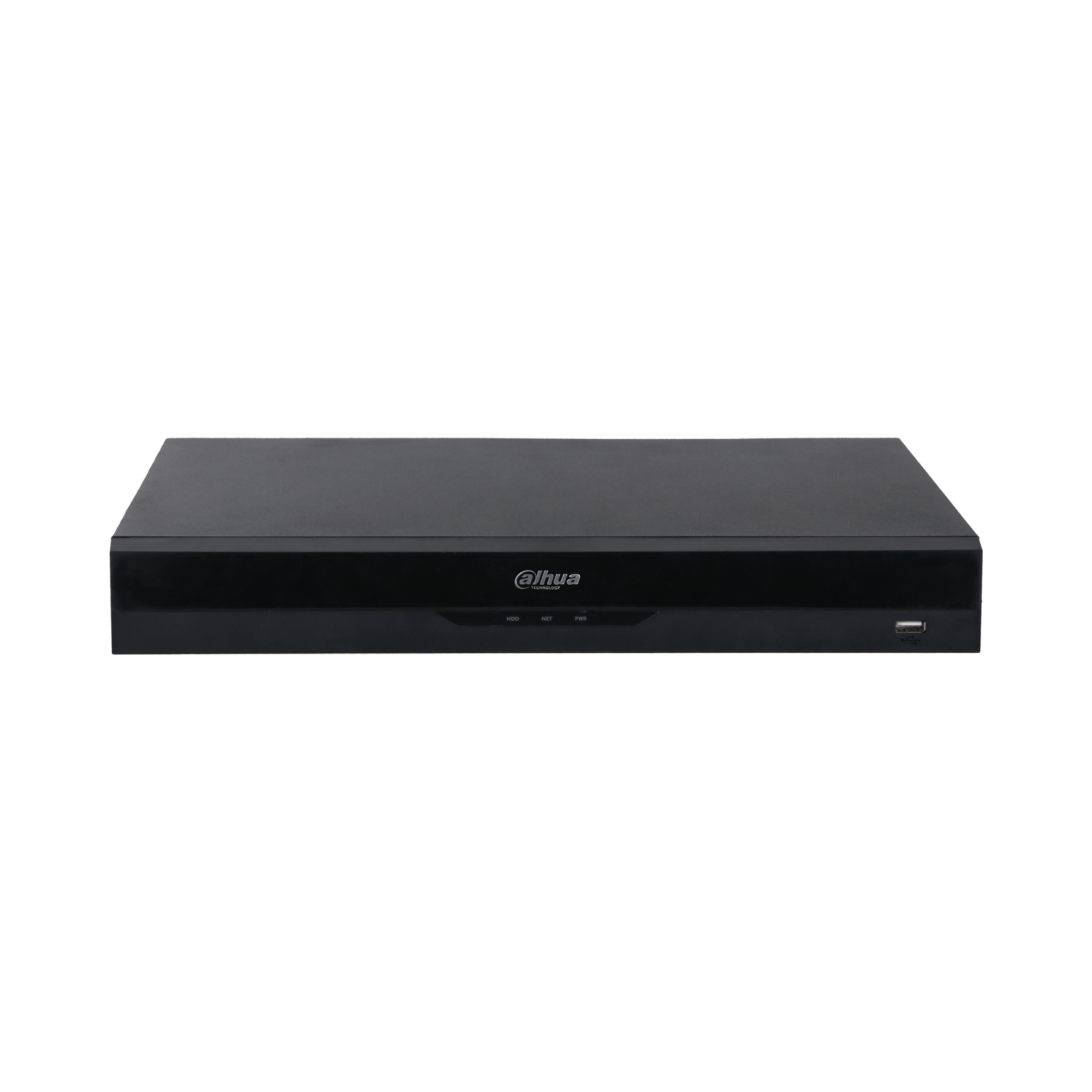

Dahua NVR4216-16P-EI 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder
Dahua NVR4216-16P-EI 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder

Dahua

Dahua NVR4216-16P-EI 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder

(0)
SKU: NVR4216-16P-EI
Barcode: 6923172585790

€466,02

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 29 October and 31 October.

In stock and ready to ship

30 days satisfaction guarantee
Dahua NVR4216-16P-EI 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder

€466,02

€466,02

Product Overview

The Dahua NVR4216-16P-EI is a 16CH 1U 16PoE 2HDDs WizSense Network Video Recorder. It accepts 16 channels. Network throughput is specified as AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing. Recording storage: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature. Recorder-side analytics support Face detection; face recognition; perimeter protection; and SMD.

Key Features

  • IP camera capacity: 16 channels
  • Incoming / recording / outgoing bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
  • Hard-drive interfaces: 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
  • Local display connections: 1 HDMI, 1 VGA, 720 VGA
  • Recorder-side AI: Face detection; face recognition; perimeter protection; and SMD
  • Simultaneous playback: Up to 16 channels
  • Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera All channels (16 targets/s)
Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 12 face images/s each channel)
Face Recognition Performance of AI by Recorder (Number of Channels) 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Database Capacity Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
AI by Recorder Face detection; face recognition; perimeter protection; and SMD
AI by Camera Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Recording and video

Multi-channel Playback Up to 16 channels
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Access Channel 16 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps

Connectivity and power

Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels
Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI 1
VGA 1
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply 100–240 VAC, 47-63 Hz
Power Consumption Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature.
Disk Group Yes

Physical and environmental

Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Product Dimensions 375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H)
Net Weight 2.60 kg (5.73 lb)
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Operating Humidity 10%–93% (RH), non-condensing

Model / SKU: NVR4216-16P-EI. EAN: 6923172585790. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
