Dahua

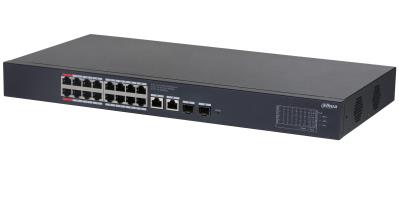

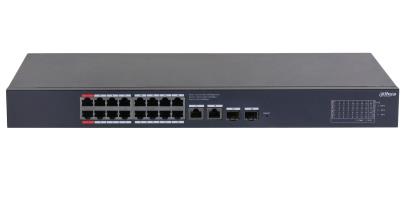

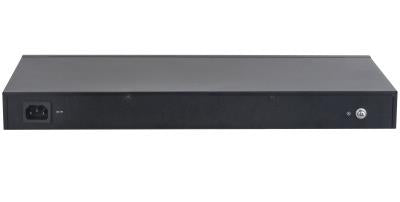

Dahua CS4220-16GT-240 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
SKU: CS4220-16GT-240
€245,46
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 30 October and 01 November.
Dahua CS4220-16GT-240 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
€245,46
€245,46
Product Overview
The Dahua CS4220-16GT-240 is a 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE. Connections comprise Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink). Its PoE allocation is port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W. The switching fabric is rated at 40 Gbps with a packet forwarding rate of 29.76 Mpps. Installation options are desktop mount; rack mount.
Key Features
- Network connections: Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink)
- PoE power allocation: Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
- Supported PoE standards: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- Switching fabric: 40 Gbps
- Packet forwarding: 29.76 Mpps
- MAC address table: 8K
- Power input: Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Technical Specifications
Physical and environmental
| Colour | Black |
|---|---|
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Casing Material | Sheet metal |
| Product Dimensions | 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H) |
| Net Weight | 2.37 kg (5.21 lb) |
| Certifications | CE |
| Operating Humidity | 5% –95% (RH), non-condensing |
| Installation | Desktop mount; rack mount |
Network interfaces
| Ethernet Port | 16 |
|---|---|
| Description of Function Slots | Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink) |
PoE and power
| PoE | Yes |
|---|---|
| PoE Power | Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| Power Supply | Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A |
| Power Consumption | Idling: ≤8.3 W ; Full load: 265 W |
Switching performance
| Switching Capacity | 40 Gbps |
|---|---|
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Table Size | 8K |
Model / SKU: CS4220-16GT-240. EAN: 6923172571205. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
