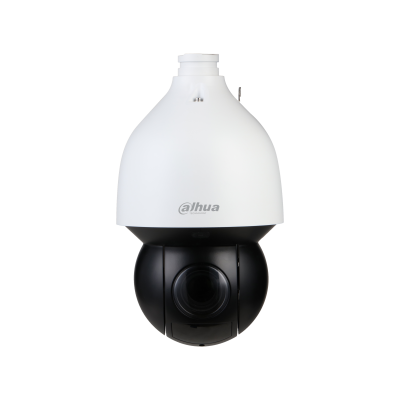

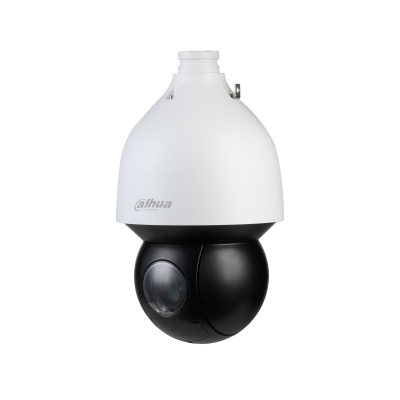

Dahua DH-SD5A425GB-HNR 4MP 25× Starlight IR WizSense Network PTZ Camera
Dahua DH-SD5A425GB-HNR 4MP 25× Starlight IR WizSense Network PTZ Camera

Dahua

Dahua DH-SD5A425GB-HNR 4MP 25× Starlight IR WizSense Network PTZ Camera

(0)
SKU: DH-SD5A425GB-HNR
Barcode: 6923172599735

€593,20

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

Low in stock

Estimated delivery between 29 October and 31 October.

In stock and ready to ship

30 days satisfaction guarantee
Dahua DH-SD5A425GB-HNR 4MP 25× Starlight IR WizSense Network PTZ Camera

€593,20

€593,20

Product Overview

The Dahua DH-SD5A425GB-HNR is a 4MP Starlight network PTZ camera with 25× optical zoom and infrared illumination for adjustable overview and detail monitoring. Its 1/2.8" CMOS sensor captures 2560 (H) × 1440 (V) with 120 dB wide dynamic range. Night illumination is specified at 150 m (IR). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes microSD recording up to 512 GB.

Key Features

  • 2560 (H) × 1440 (V) maximum image resolution with 1/2.8" CMOS sensor
  • 5 mm–125 mm lens; H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° field of view
  • Night coverage: 150 m (IR)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD 4.0 smart motion detection
  • MicroSD recording up to 512 GB
  • Power options: 24 VDC, 2.5 A ± 25% PoE+ (802.3at); IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (IR light on)
Optical Zoom 25×
Image Sensor 1/2.8" CMOS
Max. Resolution 2560 (H) × 1440 (V)
Focal Length 5 mm–125 mm
Max. Aperture F1.6–F3.6
Field of View H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Illumination and video

Illumination Distance 150 m (492.13 ft) (IR)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA @ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)
Video Compression H.264H;H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG
WDR 120 dB
Noise Reduction 2D NR; 3D NR

Intelligent analytics

IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
SMD SMD 4.0

Connectivity and power

Audio Input 1 channel (LINE IN, bare wire)
Audio Output 1 channel (LINE OUT,bare wire)
Alarm Input 2 (on-off value input: 0–5 VDC)
Alarm Output 1
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Storage Micro SD card (512 GB); FTP/SFTP; NAS
Network Port RJ-45 (10/100 Base-T)
Power Supply 24 VDC, 2.5 A ± 25% PoE+ (802.3at)
Power Consumption Basic: 12 W Max: 21 W (illuminator + PTZ + Heater + Fan)
Interoperability CGI;SDK;ONVIF (Profile S&G&T)

Physical and environmental

Colour White
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Protection IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection
Product Dimensions Φ190.0 mm × 332.0 mm (Φ7.48" × 13.07")
Net Weight 4.7 kg (10.36 lb)
Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Operating Humidity ≤95%

Model / SKU: DH-SD5A425GB-HNR. EAN: 6923172599735. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
