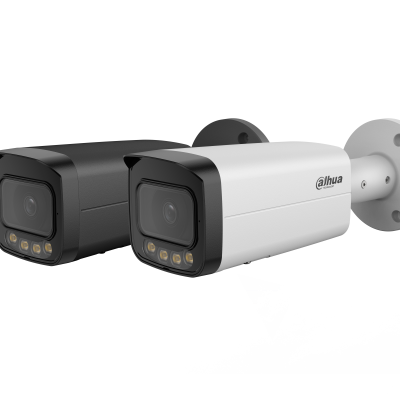

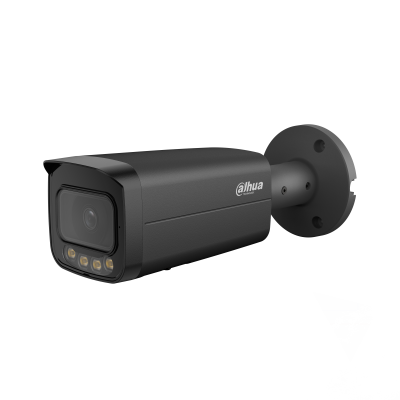

Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera
Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera
Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

Dahua

Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

(0)
SKU: IPC-HFW5559T-ASE-IL-0280B-BLACK
Barcode: 6937552411357

€323,72

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

Low in stock

Estimated delivery between 29 October and 31 October.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

€323,72

€323,72

Product Overview

The black Dahua IPC-HFW5559T-ASE-IL-0280B-BLACK pairs 5MP WizMind imaging with a 2.8 mm fixed lens and Smart Dual Light in a bullet enclosure. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 80 m (IR) Up to 60 m (Warm light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

  • 2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
  • 2.8 mm fixed-focal lens; H: 108.4°; V: 60°; D: 127.1° field of view
  • Night coverage: Up to 80 m (IR) Up to 60 m (Warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD 4.0 smart motion detection
  • A built-in microphone, microSD recording up to 1 TB
  • Power options: 12 VDC (±30%); PoE+ (802.3at); ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View H: 108.4°; V: 60°; D: 127.1°

Illumination and video

Illumination Distance Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light)
Video Frame Rate Main stream: 2960 × 1668@(1–25/30 fps)/1920 × 1080@(1–50/60 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR 120 dB
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of human, vehicle, animal and other); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Storage FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port RJ-45 (10/100 Enhancement Base-T)
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Power Consumption Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour Black
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10
Casing Material Metal
Product Dimensions 238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L × W × H)
Net Weight 835 g (1.84 lb)
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Operating Humidity ≤95% (RH), non-condensing

Model / SKU: IPC-HFW5559T-ASE-IL-0280B-BLACK. EAN: 6937552411357. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
