Dahua

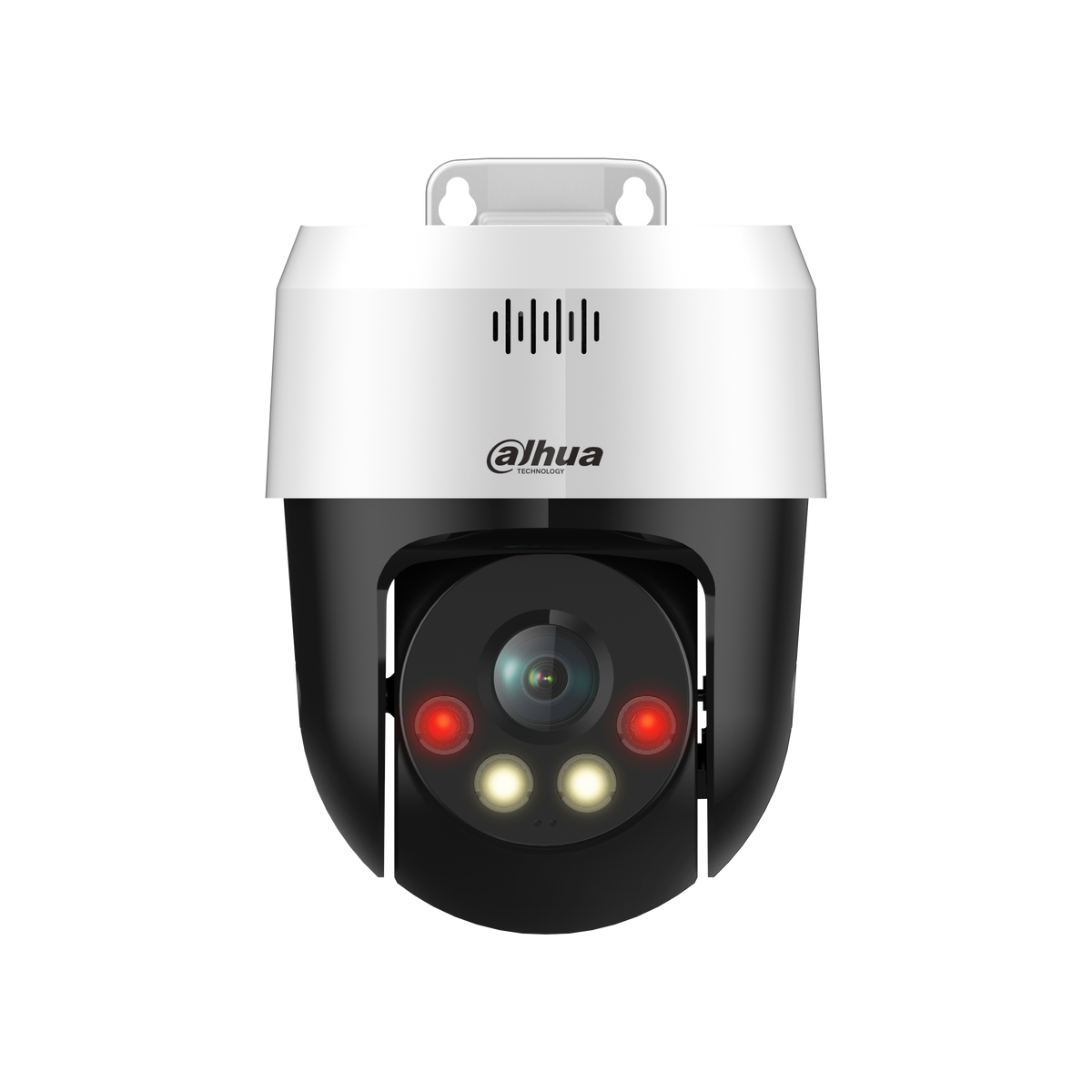

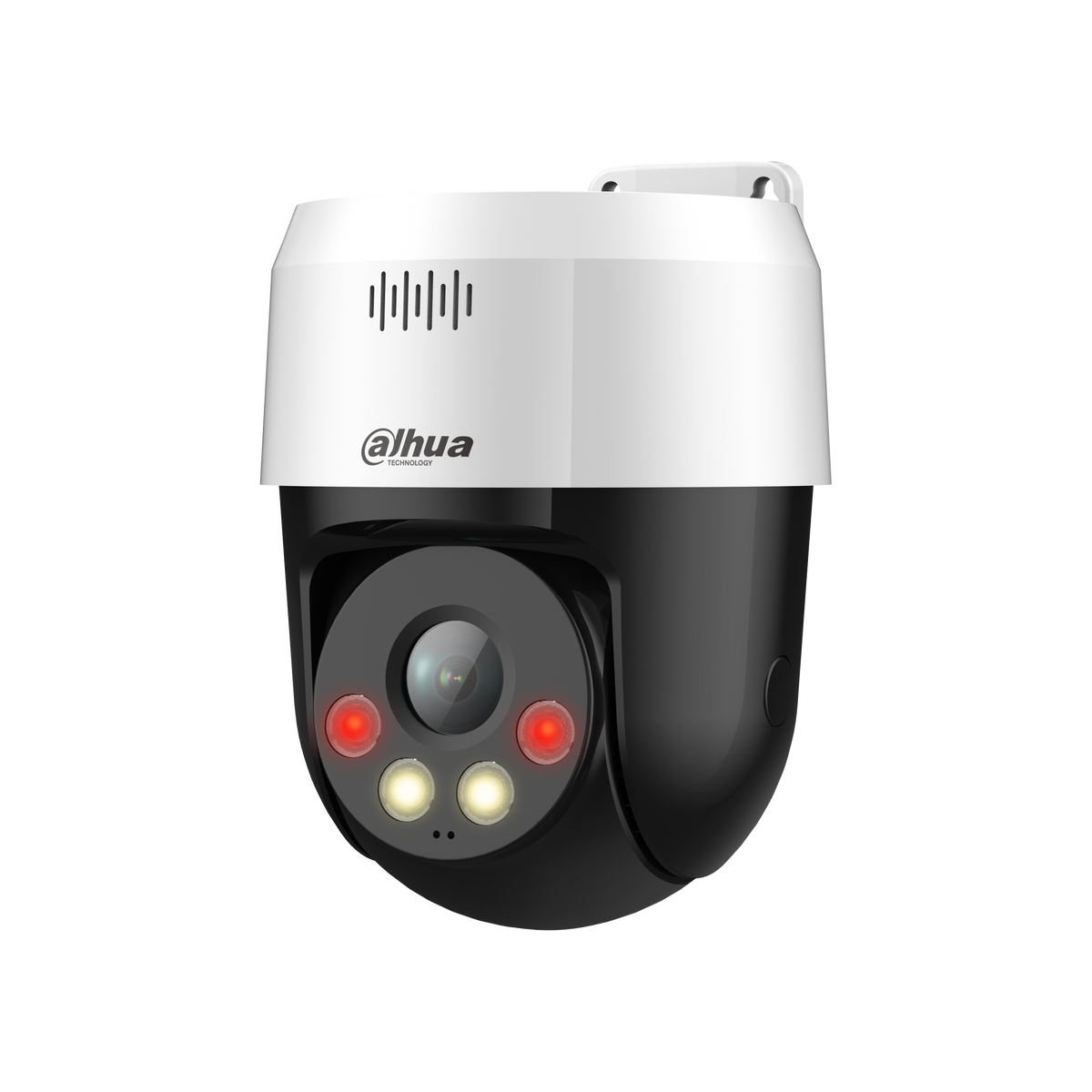

Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera
SKU: SD2A500NB-GNY-A-PV
€103,16
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 29 October and 31 October.
Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera
€103,16
€103,16
Product Overview
The Dahua SD2A500NB-GNY-A-PV is a 5MP network pan-and-tilt camera with Smart Dual Light, providing remotely adjustable viewing direction. Its 1/2.8" CMOS sensor captures 2560 (H) × 1920(V) with digital wide dynamic range. Night illumination is specified at 30 m (warm light); 30 m (IR). Human detection filters events by recognised human targets. The camera includes microSD recording up to 256 GB.
Key Features
- 2560 (H) × 1920(V) maximum image resolution with 1/2.8" CMOS sensor
- 4.0 mm lens; H: 80.4°; V: 58.1°; D: 104.8° field of view
- Night coverage: 30 m (warm light); 30 m (IR)
- Human target detection
- SMD 3.0 Active Deterrence smart motion detection
- MicroSD recording up to 256 GB
- Power options: 12 VDC/1.5 A ± 10% PoE (802.3af); TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof enclosure protection
Technical Specifications
Imaging and lens
| Min. Illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2560 (H) × 1920(V) |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
Illumination and video
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); |
|---|---|
| Video Frame Rate | Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| WDR | DWDR |
| Noise Reduction | 2D NR; 3D NR |
Intelligent analytics
| Human Detection | Yes |
|---|---|
| SMD | SMD 3.0 Active Deterrence |
Connectivity and power
| Audio Input | 1 channel (built-in mic) |
|---|---|
| Audio Output | 1 channel (built-in speaker) |
| Audio Compression | PCM；G.711a；G.711Mu；G.726；AAC； |
| Storage | Micro SD card (256 GB); FTP |
| Network Port | RJ-45 (10/100 Base-T) |
| Power Supply | 12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power Consumption | Basic: 3.5 W; Max: 10 W (illuminator) |
| Interoperability | CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P |
Physical and environmental
| Colour | White |
|---|---|
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Protection | TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight | 0.5 kg (1.10 lb) |
| Certifications | CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Operating Humidity | ≤95% |
Model / SKU: SD2A500NB-GNY-A-PV. EAN: 6923172576934. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
