Dahua

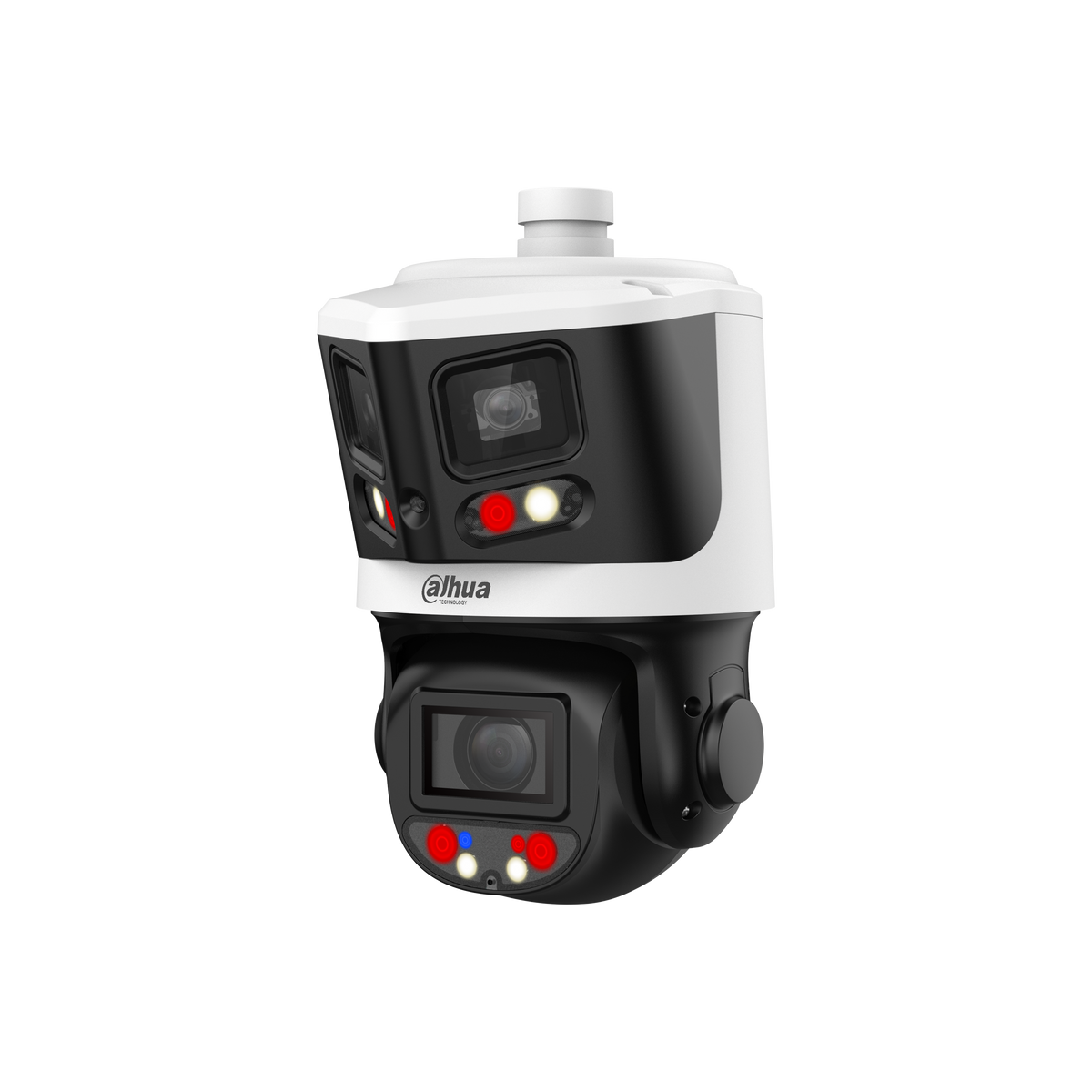

Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
SKU: SDT3E410-8P-MB-A-PV1
€506,04
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 29 October and 31 October.
Dahua SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
€506,04
€506,04
Product Overview
The Dahua SDT3E410-8P-MB-A-PV1 combines an 8MP panoramic channel with a 4MP PTZ channel and 10× optical zoom, bringing overview and adjustable detail views into one TiOC camera. Its Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS sensor captures Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) with Overview channel: DWDR Detail channel: 120 dB wide dynamic range. Night illumination is specified at Overview channel: 30 m (IR); 30 m (white light) Detail channel: 70 m ; 30 m (white light). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; the camera provides smart motion detection. The camera includes microSD recording up to 512 GB.
Key Features
- Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) maximum image resolution with Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS sensor
- Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm lens
- Night coverage: Overview channel: 30 m (IR); 30 m (white light) Detail channel: 70 m ; 30 m (white light)
- Tripwire and intrusion detection with human/vehicle classification
- Smart motion detection supported
- MicroSD recording up to 512 GB
- Power options: 12 VDC, 3 A ± 10% PoE+(802.3at); TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection enclosure protection
Technical Specifications
Imaging and lens
| Min. Illumination | Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) Detail channel: 1 s–1/30,000 s 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
|---|---|
| Optical Zoom | Overview channel: NA; Detail channel: 10× |
| Image Sensor | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
| Max. Resolution | Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) |
| Focal Length | Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm |
| Max. Aperture | Overview channel: F1.6; Detail channel: F1.6-F3.6 |
| Field of View | Overview channel: H: 180°; V: 47°; Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° |
Illumination and video
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light) |
|---|---|
| Video Frame Rate | Overview channel: Main stream: 5376 × 1520 @(1–25/30 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) |
| WDR | Overview channel: DWDR Detail channel: 120 dB |
| Noise Reduction | Overview channel: 2D NR; 3D NR Detail channel: 2D NR; 3D NR |
Intelligent analytics
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people) |
|---|---|
| SMD | Yes |
Connectivity and power
| Audio Input | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
|---|---|
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input | 1 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Audio Compression | Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail channel: NA |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Network Port | RJ-45 (100 Base-T) |
| Power Supply | 12 VDC, 3 A ± 10% PoE+(802.3at) |
| Power Consumption | Basic: 12 W; Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ) |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
Physical and environmental
| Colour | White |
|---|---|
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Product Dimensions | 140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H) |
| Net Weight | 2.17 kg (4.78 lb) |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
| Operating Humidity | ≤95% |
Model / SKU: SDT3E410-8P-MB-A-PV1. EAN: 6939554933479. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
