Dahua

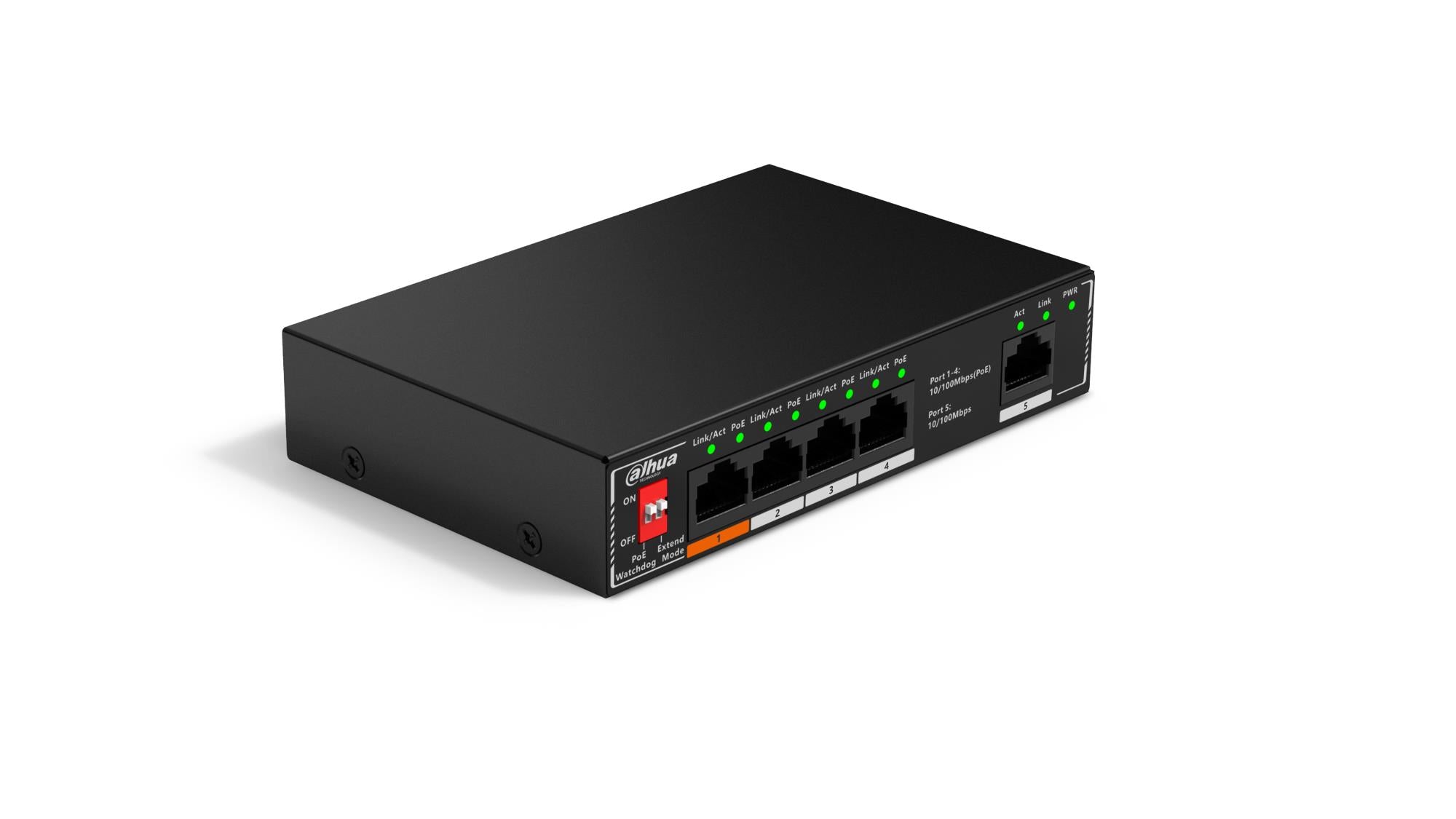

Dahua SF1005P 5-Port Unmanaged Desktop Switch with 4-Port PoE

(0)

€44,59

Product Overview

The Dahua SF1005P is a 5-Port Unmanaged Desktop Switch with 4-Port PoE. Connections comprise Port 1-4: 4 × RJ-45 10/100Mbps(PoE) Port 5: 1 × RJ-45 10/100Mbps(Uplink).

Key Features

Network connections: Port 1-4: 4 × RJ-45 10/100Mbps(PoE) Port 5: 1 × RJ-45 10/100Mbps(Uplink)
Supported PoE standards: IEEE802.3af/ IEEE802.3at/ Hi-PoE

Technical Specifications

Physical and environmental

Colour	Black
Weight	0.30 kg (0.64 lb)

Network interfaces

Ethernet Port	Port 1-4: 4 × RJ-45 10/100Mbps(PoE) Port 5: 1 × RJ-45 10/100Mbps(Uplink)

PoE and power

PoE Power Consumption	Port 1 ≤ 60 W (Hi-PoE) port 2-4 ≤ 30 W total ≤ 60 W
PoE Protocol	IEEE802.3af/ IEEE802.3at/ Hi-PoE
Power Consumption	Idling: 0.8 W Full load: 60 W

Model / SKU: SF1005P. EAN: 6923172571427. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

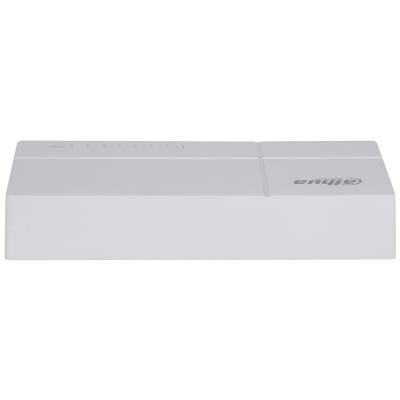

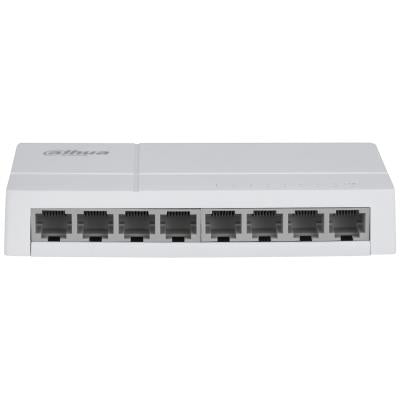

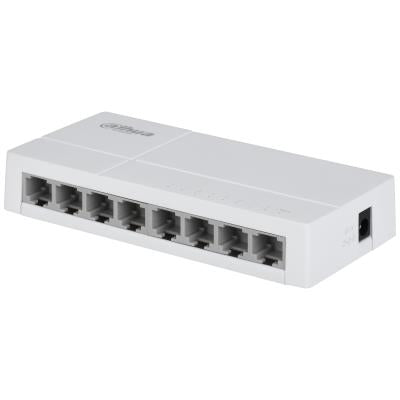

Dahua SG1008L-EUR 8-Port Unmanaged Gigabit Switch

Dahua

Dahua SG1008L-EUR 8-Port Unmanaged Gigabit Switch

(0)

€21,47

Product Overview

The Dahua SG1008L-EUR is an 8-Port Unmanaged Gigabit Switch. Connections comprise 8 Ethernet ports. The switching fabric is rated at 16 Gbit/s with a packet forwarding rate of 11.904 Mpps. Installation options are desktop mount.

Key Features

Network connections: 8
Link speed: 10/100/1000 Mbps
Switching fabric: 16 Gbit/s
Packet forwarding: 11.904 Mpps
MAC address table: 2K
Power input: 5 VDC, 1 A
Operating range: 0°C to +45°C

Technical Specifications

Network interfaces

Ethernet Port	8
Ethernet Port Speed	10/100/1000 Mbps

Switching performance

Switching Capacity	16 Gbit/s
Packet Forwarding Rate	11.904 Mpps
MAC Table Size	2K
Packet Buffer Size	1.5 Mbit

Management

Management	Unmanaged

PoE and power

Power Supply	5 VDC, 1 A
Power Consumption	Idle 0.5 W; full load 3 W
Included Power Adapter	Yes

Physical and environmental

Operating Temperature	0°C to +45°C
Casing Material	Plastic
Product Dimensions	132.9 × 62.4 × 24.0 mm
Net Weight	0.16 kg
Operating Humidity	5–95% RH
Installation	Desktop mount

Model / SKU: SG1008L-EUR. EAN: 6923172590473. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

In stock

Receives in 5 days.

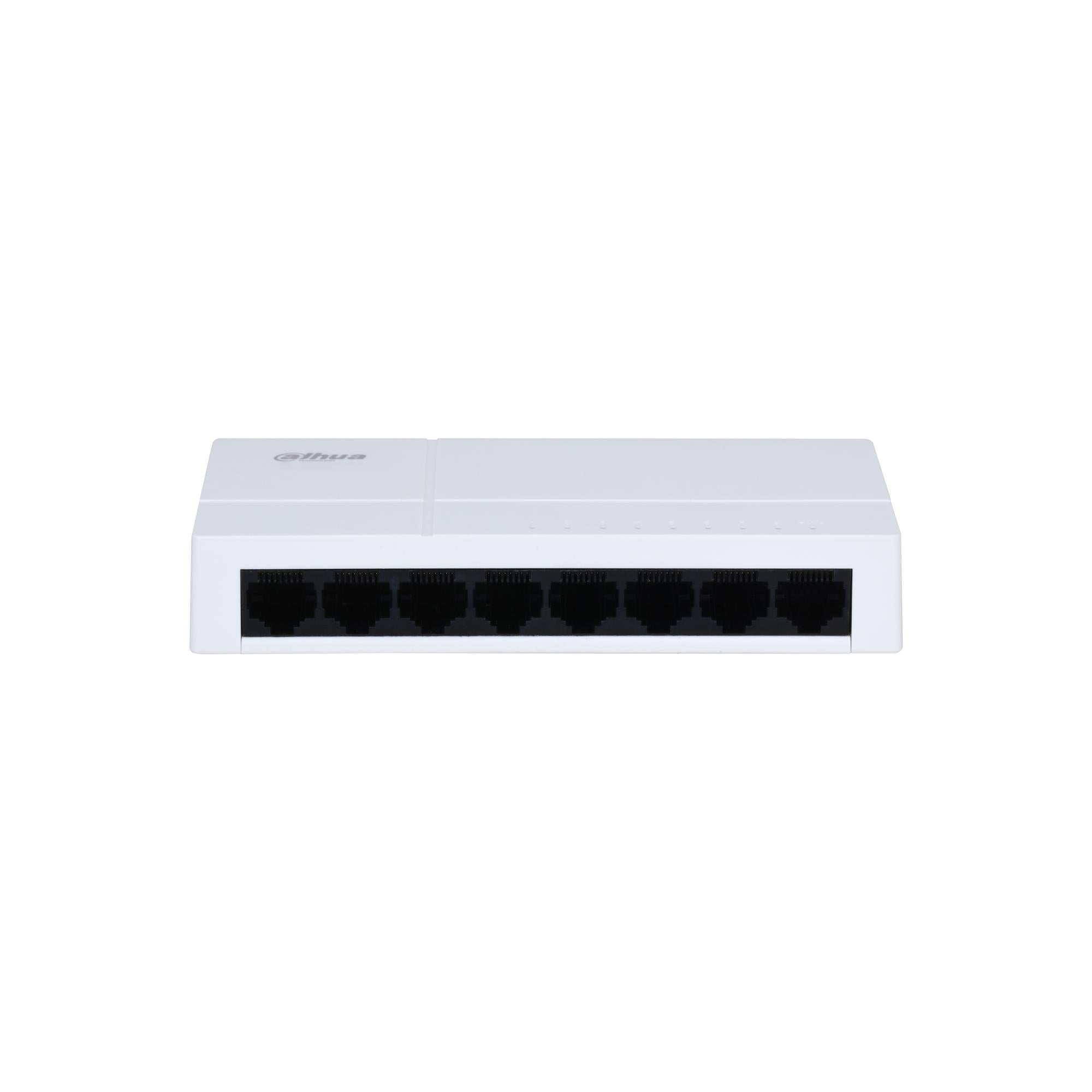

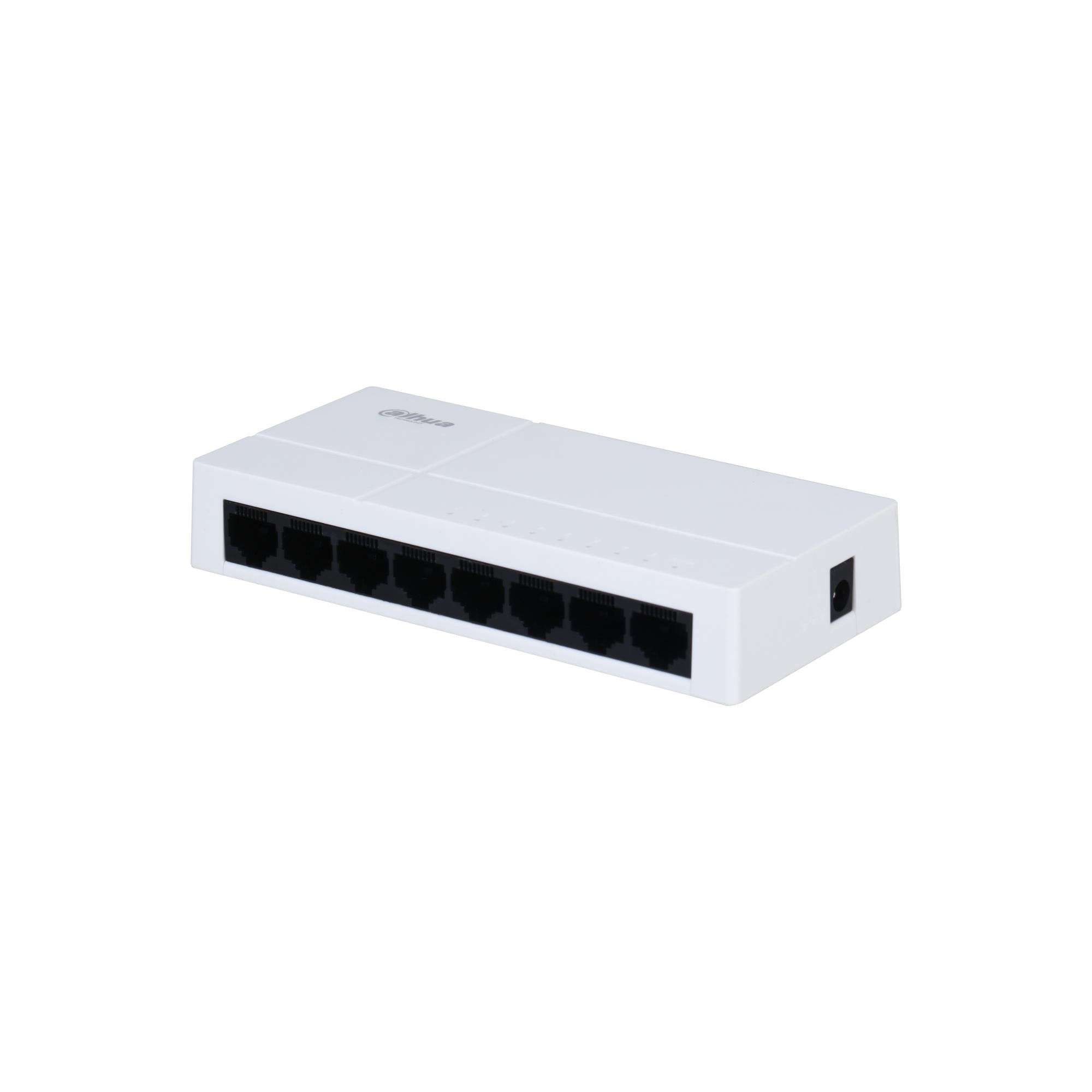

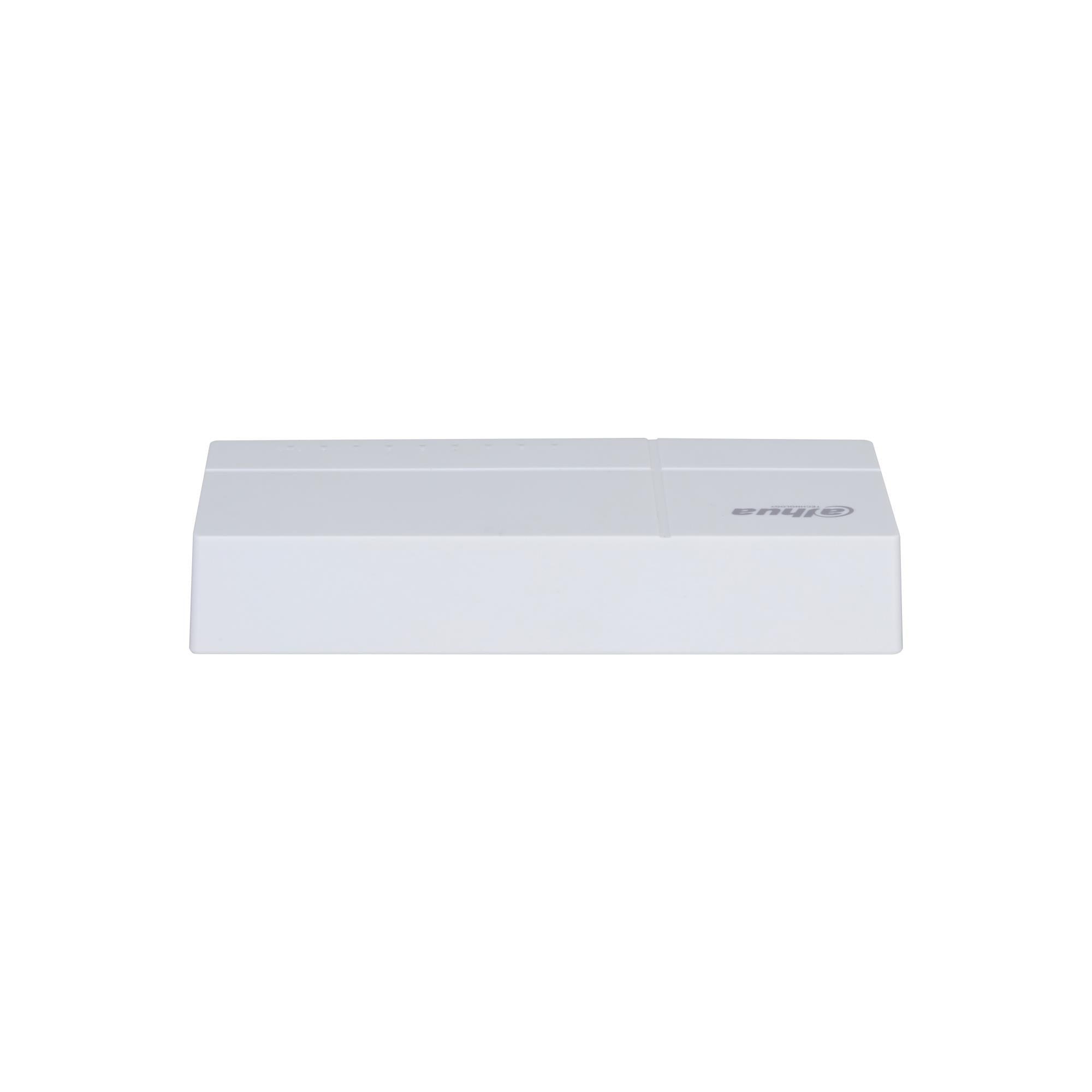

Dahua PFS3008-8GT-L-V2 8-Port Unmanaged Gigabit Switch

Dahua

Dahua PFS3008-8GT-L-V2 8-Port Unmanaged Gigabit Switch

(0)

€24,77

Product Overview

The Dahua PFS3008-8GT-L-V2 is an 8-Port Unmanaged Gigabit Switch. Connections comprise Port 1–8: 8 × 10/100/1000 Base-T. Installation options are desktop mount.

Key Features

Network connections: Port 1–8: 8 × 10/100/1000 Base-T
Link speed: 10/100/1000 Mbps
Packet forwarding: 11.904 Mpps
MAC address table: 2K
Power input: 5 VDC; 1 A
Operating range: 0 °C to +45 °C
Mounting options: Desktop mount

Technical Specifications

Physical and environmental

Colour	White
Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Casing Material	Plastic
Product Dimensions	132.9 mm × 62.4 mm × 24.0 mm (5.23" × 2.46" × 0.94")
Net Weight	0.16 kg (0.35 lb)
Certifications	CE; FCC
Operating Humidity	5%–95% (RH)
Installation	Desktop mount

Network interfaces

Ethernet Port	8
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1–8: 8 × 10/100/1000 Base-T

Switching performance

Packet Forwarding Rate	11.904 Mpps
MAC Table Size	2K

PoE and power

Power Supply	5 VDC; 1 A
Power Consumption	Idling: 0.5 W; Full load: 3.0 W
Included Power Adapter	Yes

Model / SKU: PFS3008-8GT-L-V2. EAN: 6923172582058. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.

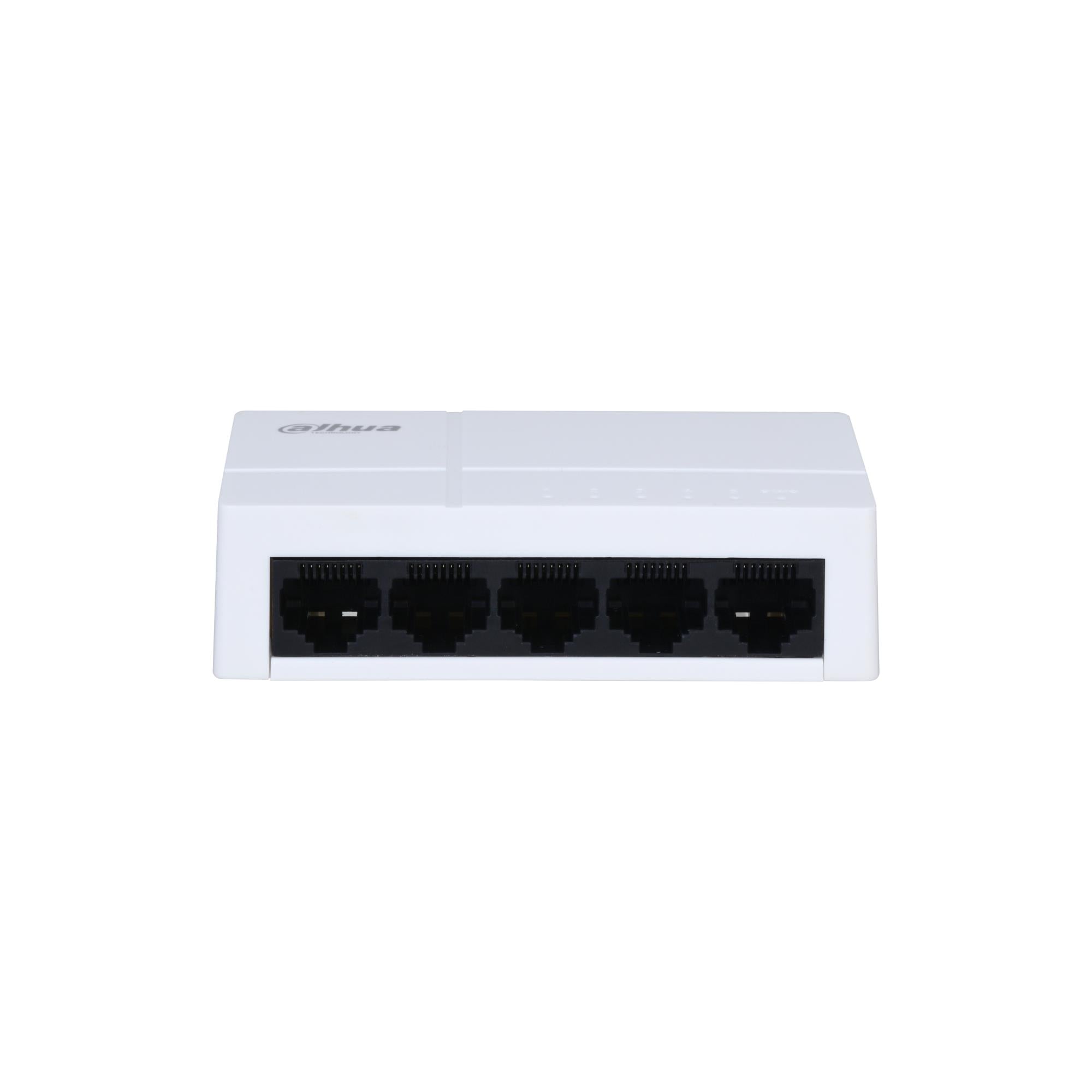

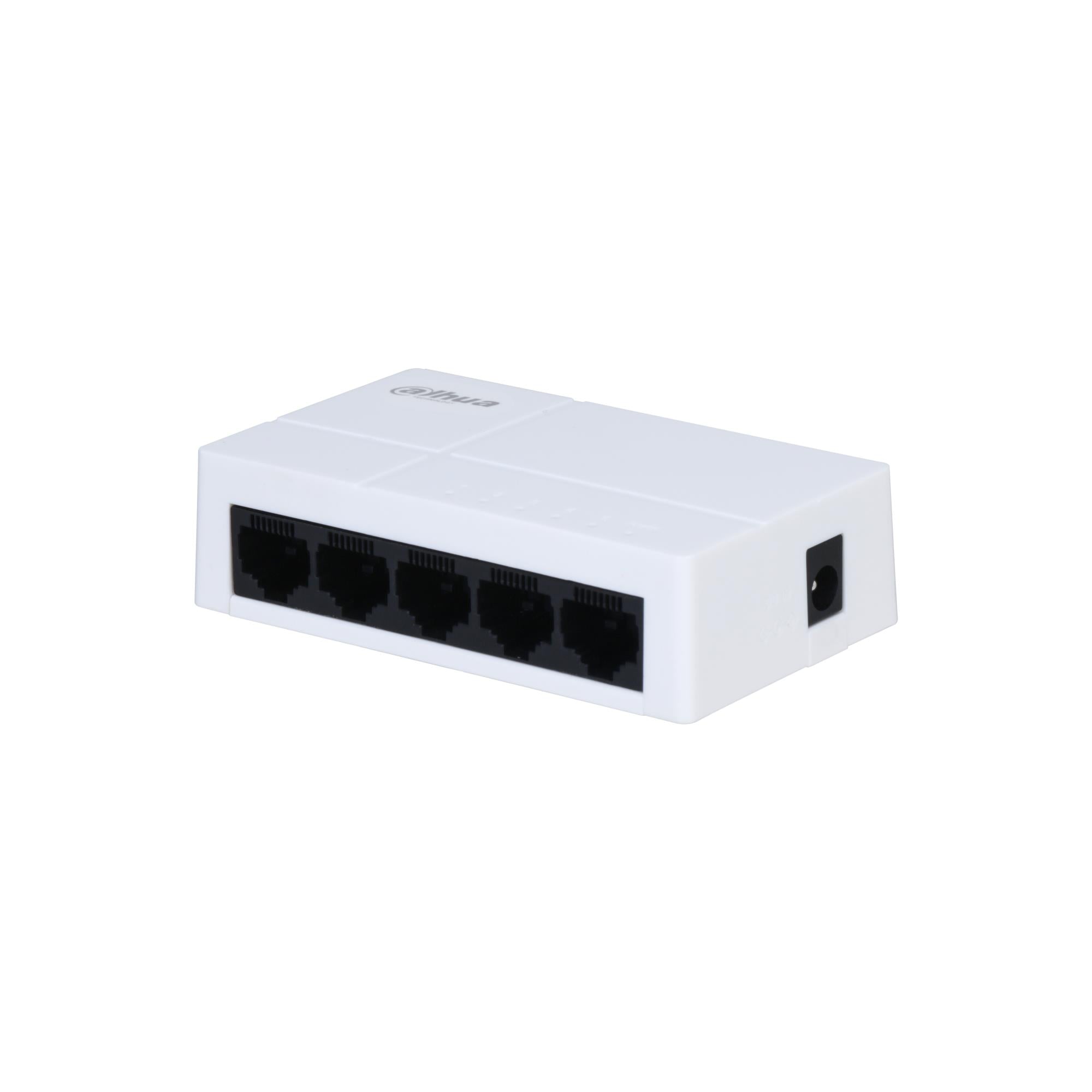

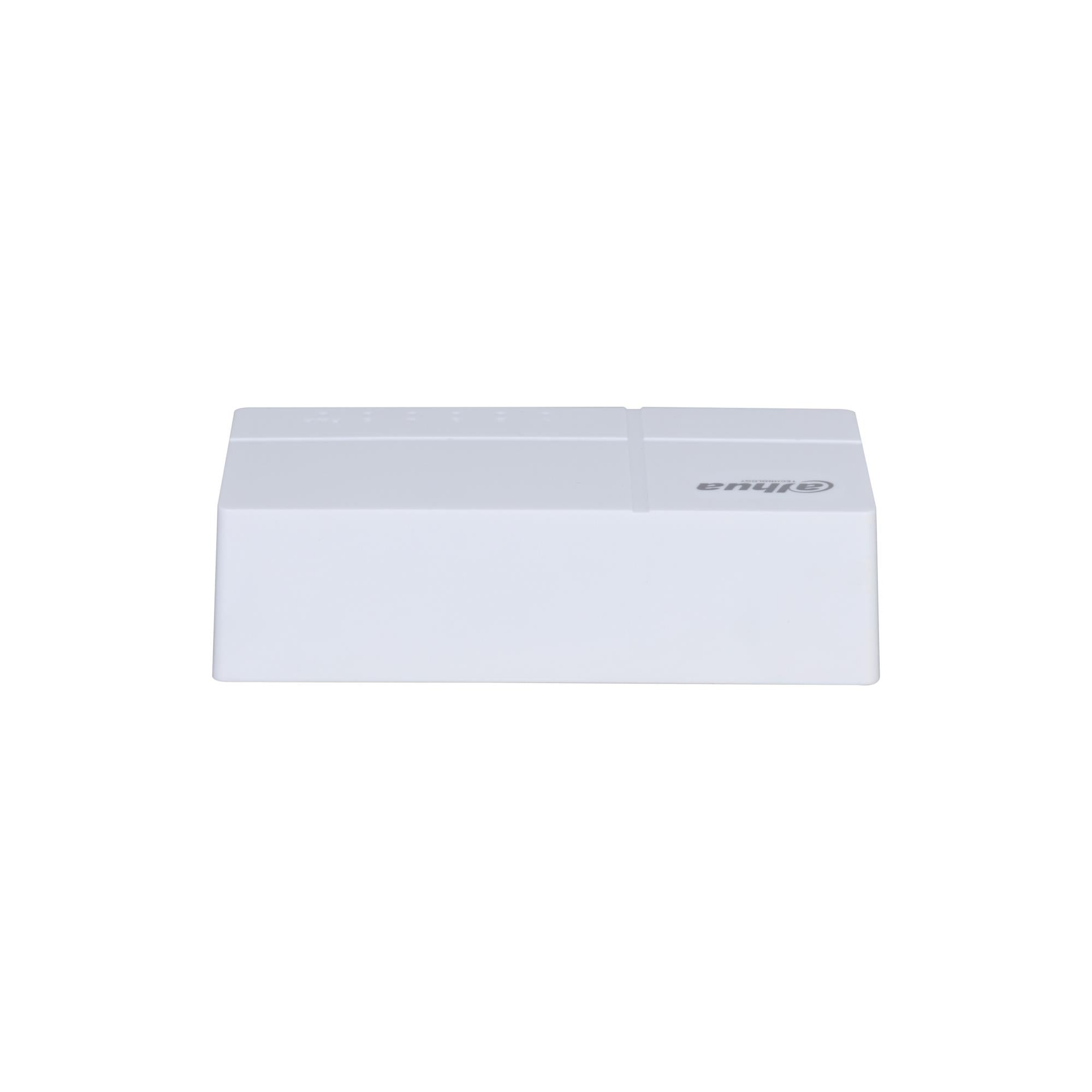

Dahua PFS3005-5GT-L-V2 5-Port Unmanaged Gigabit Switch

Dahua

Dahua PFS3005-5GT-L-V2 5-Port Unmanaged Gigabit Switch

(0)

€14,86

Product Overview

The Dahua PFS3005-5GT-L-V2 is a 5-Port Unmanaged Gigabit Switch. Connections comprise Port 1-5: 5 × 10/100/1000 Base-T. Installation options are desktop mount.

Key Features

Network connections: Port 1-5: 5 × 10/100/1000 Base-T
Link speed: 10/100/1000 Mbps
Packet forwarding: 7.44 Mpps
MAC address table: 2K
Power input: 5 VDC; 1 A
Operating range: 0 °C to +45 °C
Mounting options: Desktop mount

Technical Specifications

Physical and environmental

Colour	White
Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Casing Material	Plastic
Product Dimensions	86.4 mm × 52.0 mm × 23.0 mm (3.40" × 2.05" × 0.91")
Net Weight	0.12 kg (0.26 lb)
Certifications	CE; FCC
Operating Humidity	5%–95% (RH)
Installation	Desktop mount

Network interfaces

Ethernet Port	5
Ethernet Port Speed	10/100/1000 Mbps
Description of Function Slots	Port 1-5: 5 × 10/100/1000 Base-T

Switching performance

Packet Forwarding Rate	7.44 Mpps
MAC Table Size	2K

PoE and power

Power Supply	5 VDC; 1 A
Power Consumption	Idling: 0.5 W; Full load: 1.5 W
Included Power Adapter	Yes

Model / SKU: PFS3005-5GT-L-V2. EAN: 6923172582010. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.

Downloads

Official Dahua product specifications and documentation

In stock

Receives in 5 days.
