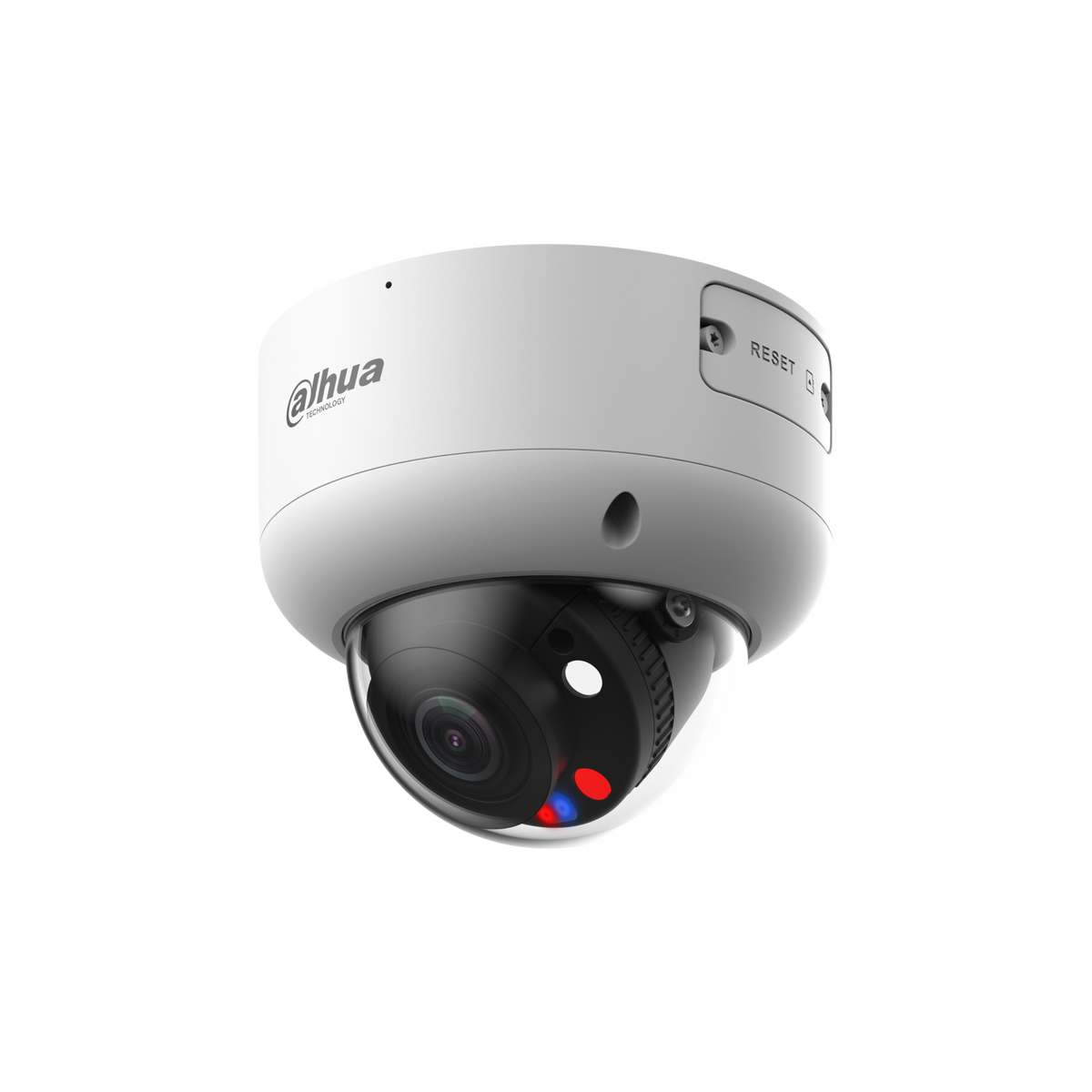

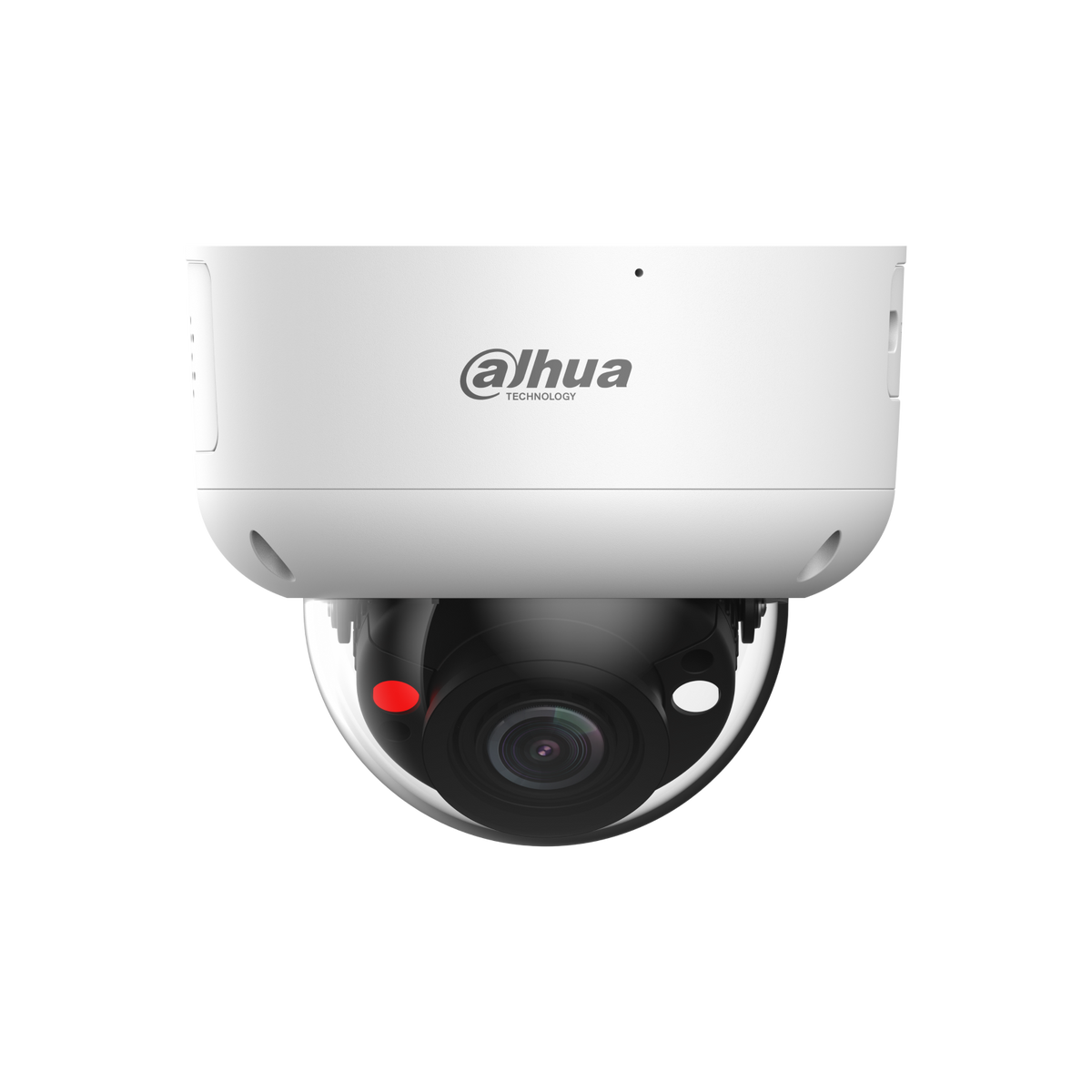

Dahua HDBW3549R1-ZASPV27135S5 5MP Dome Network Camera
Dahua HDBW3549R1-ZASPV27135S5 5MP Dome Network Camera

Dahua

Dahua HDBW3549R1-ZASPV27135S5 5MP Dome Network Camera

(0)
SKU: HDBW3549R1-ZASPV27135S5
Barcode: 6923172504128

€409,10

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua HDBW3549R1-ZASPV27135S5 5MP Dome Network Camera

€409,10

€409,10

Product Overview

The Dahua HDBW3549R1-ZASPV27135S5 is a 5MP dome camera with a motorized vari-focal lens, combining adjustable framing with Smart Dual Light and active-deterrence features. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR) Up to 40 m (warm light). Video analytics include tripwire, intrusion with human and vehicle classification. The camera includes microSD recording up to 256 GB.

Key Features

  • 2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
  • 2.7 mm–13.5 mm motorized vari-focal lens; Horizontal: 113°–36° Vertical: 57°–20° Diagonal: 137°–40° field of view
  • Night coverage: Up to 50 m (IR) Up to 40 m (warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • MicroSD recording up to 256 GB
  • Power options: 12 VDC/PoE (802.3af); IP67, IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
Lens Type Motorized vari-focal
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.0
Field of View Horizontal: 113°–36° Vertical: 57°–20° Diagonal: 137°–40°

Illumination and video

Illumination Distance Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (warm light)
Video Frame Rate Main stream: 2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
WDR 120 dB
Stream Capability 3 streams
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.3 W (12 VDC); 4.7 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 7.7 W (12 VDC); 9 W (PoE)
Interoperability ONVIF (Profile S;Profile G;Profile T); CGI

Physical and environmental

Colour White
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
Protection IP67, IK10
Casing Material Metal
Product Dimensions 105 mm × Φ126.0 mm (4.13" × Φ4.96")
Net Weight 0.73 kg (1.61 lb)
Certification CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Model / SKU: HDBW3549R1-ZASPV27135S5. EAN: 6923172504128. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
