Dahua

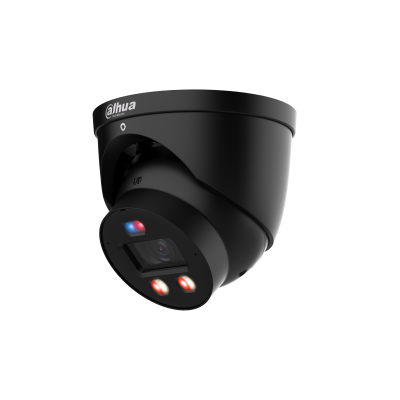

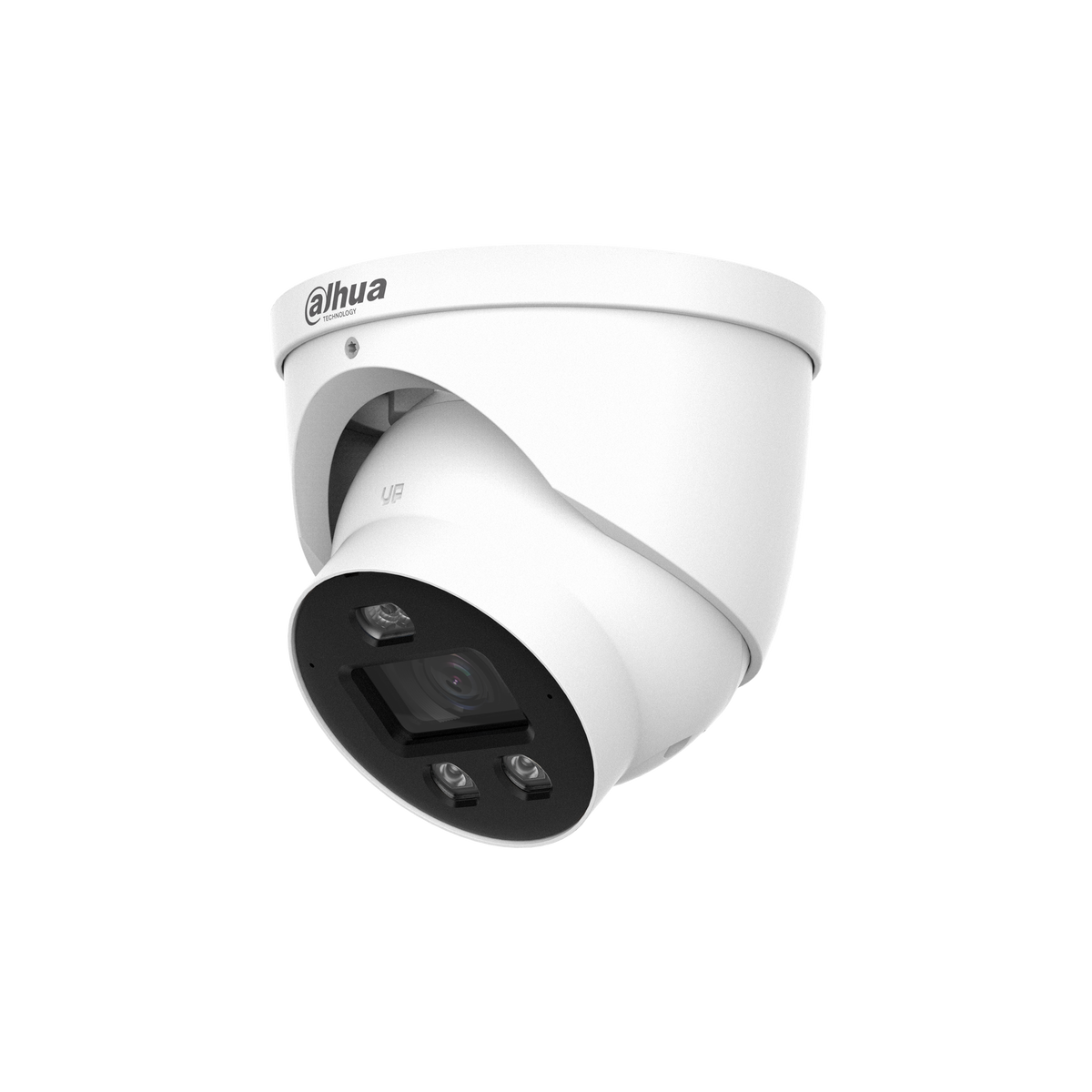

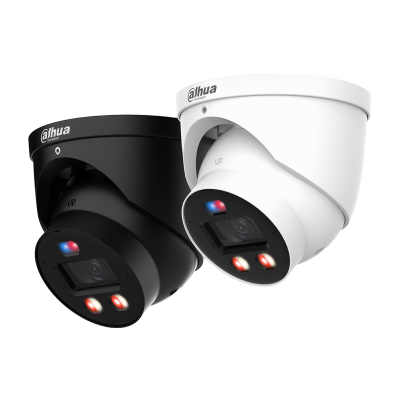

Dahua HDW3649H-ASPV0280B-PRO 6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera
SKU: HDW3649H-ASPV0280B-PRO
€280,15
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 30 October and 01 November.
Dahua HDW3649H-ASPV0280B-PRO 6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera
€280,15
€280,15
Product Overview
The Dahua HDW3649H-ASPV0280B-PRO combines 6MP WizColor imaging with TiOC PRO features and a 2.8 mm lens in an eyeball housing. Its 1/1.8" CMOS sensor captures 3288 (H) × 1850 (V) with 130 dB wide dynamic range. Night illumination is specified at Up to 30 m (IR) Up to 30 m (Warm light). Video analytics include tripwire, intrusion, loitering with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 512 GB.
Key Features
- 3288 (H) × 1850 (V) maximum image resolution with 1/1.8" CMOS sensor
- 2.8 mm fixed-focal lens; H: 109°; V: 59°; D: 131° field of view
- Night coverage: Up to 30 m (IR) Up to 30 m (Warm light)
- Tripwire and intrusion detection with human/vehicle classification
- SMD 4.0 smart motion detection
- Dual microphones, a built-in speaker, microSD recording up to 512 GB
- Power options: 12 VDC (±30%); PoE (802.3af); IP67 enclosure protection
Technical Specifications
Imaging and lens
| Min. Illumination | 0.0002 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 109°; V: 59°; D: 131° |
Illumination and video
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
|---|---|
| Video Frame Rate | Main stream: 3288 × 1850@(1–25/30 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| WDR | 130 dB |
| Noise Reduction | 3D NR |
Intelligent analytics
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. |
|---|---|
| SMD | SMD 4.0 |
Connectivity and power
| Audio Input | 1 channel (RCA port) |
|---|---|
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 1 channel out: wet contact, max load 300 mA 12 VDC |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Network Port | RJ-45 (10/100 Base-T) |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 4.1 W (12 VDC), 6 W (PoE); Max.: 8.2 W (12 VDC), 10 W (PoE) (H.265 + WDR + warm light + siren and light active deterrence + intelligence on) |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
Physical and environmental
| Colour | White |
|---|---|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 116.1 mm (Φ4.80" × 4.57") |
| Net Weight | 0.8 kg (1.76 lb) |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Operating Humidity | ≤95% (RH), non-condensing |
Model / SKU: HDW3649H-ASPV0280B-PRO. EAN: 6939554976247. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
