Dahua HDW5541TM-ASE-0280B-S3B 5MP IR Fixed-focal Eyeball WizMind Network Camera
SKU: HDW5541TM-ASE-0280B-S3B
€176,09
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
Low in stock
Estimated delivery between 30 October and 01 November.

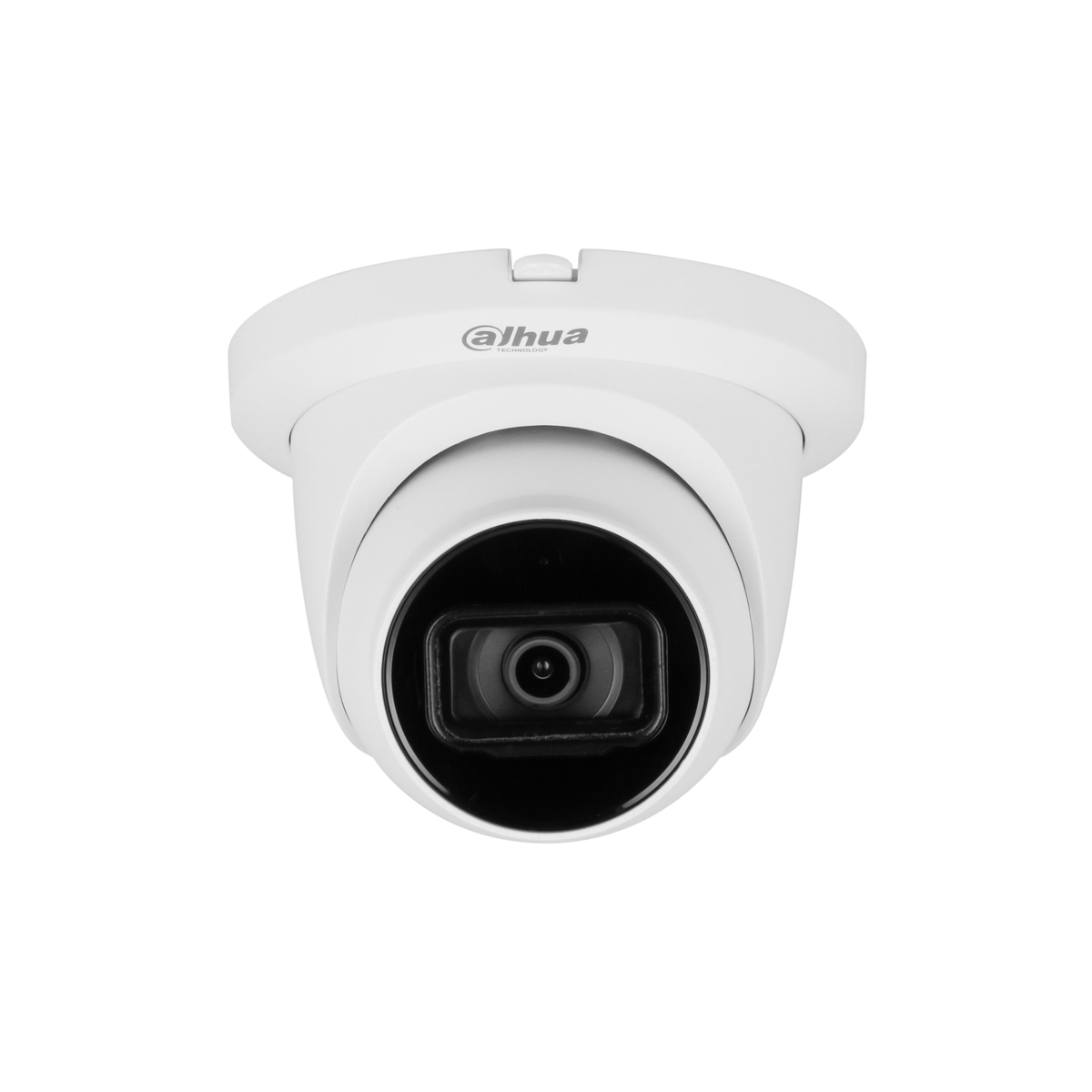

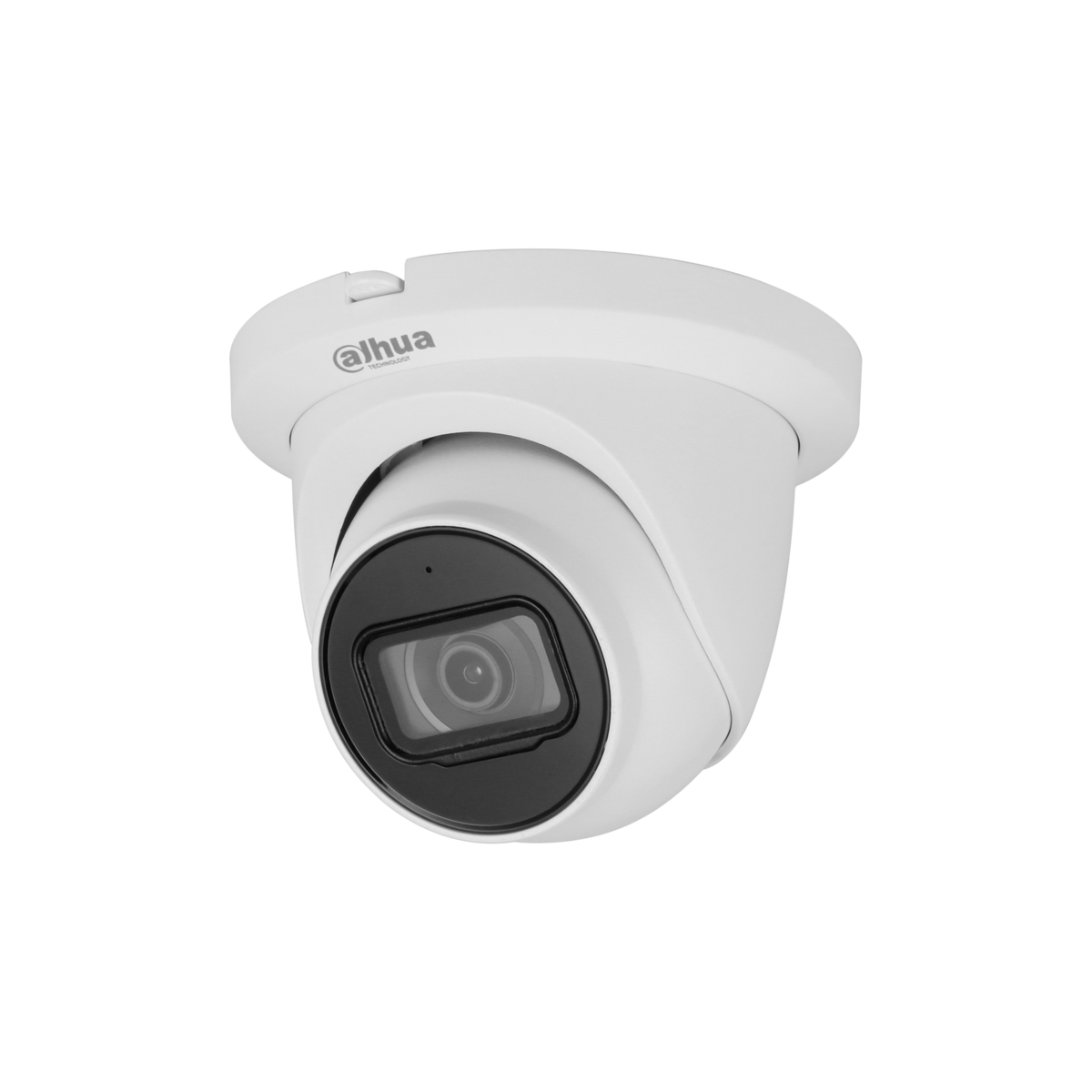

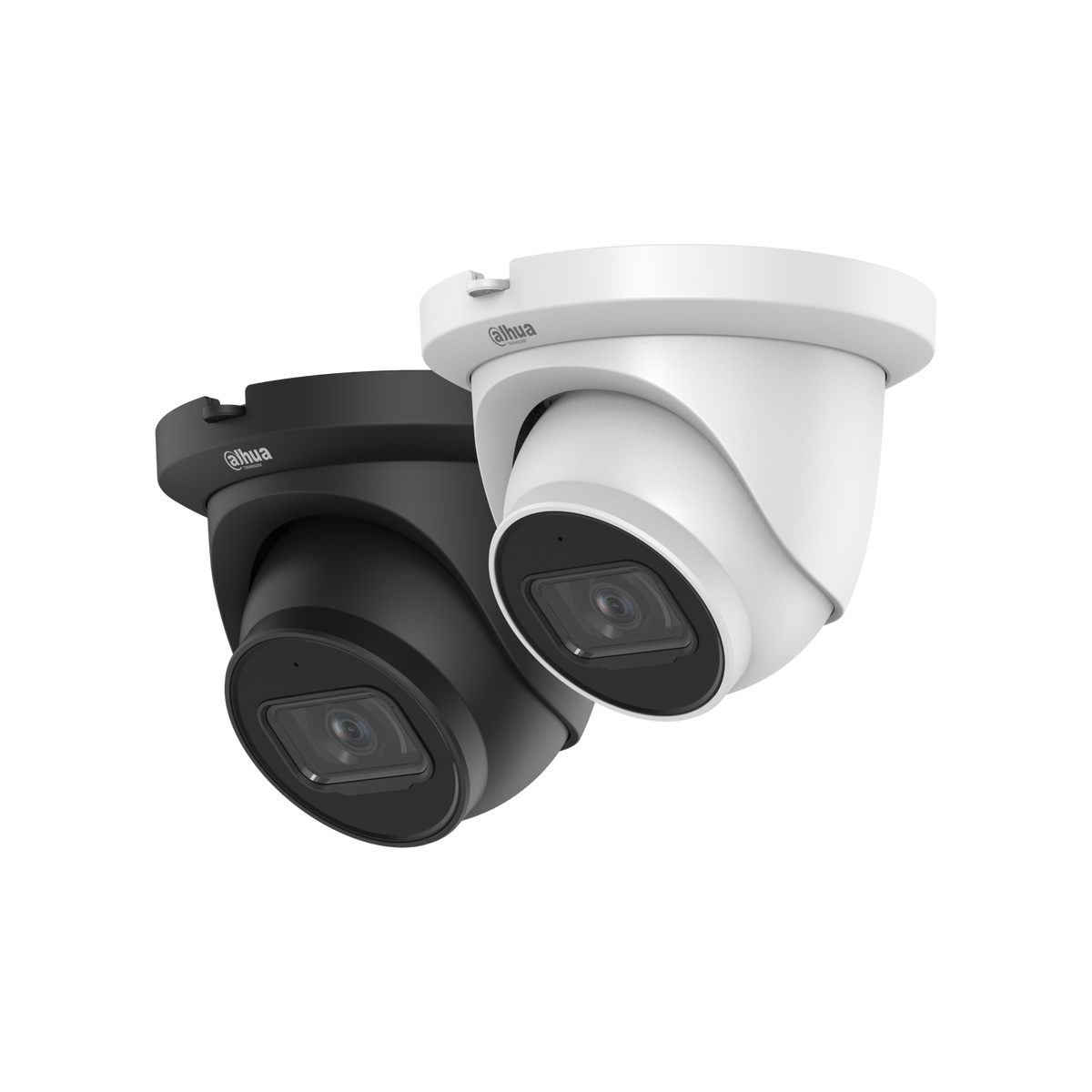

Dahua HDW5541TM-ASE-0280B-S3B 5MP IR Fixed-focal Eyeball WizMind Network Camera
€176,09
€176,09
Product Overview
The Dahua HDW5541TM-ASE-0280B-S3B pairs 5MP WizMind imaging with a 2.8 mm fixed lens and infrared illumination in an eyeball housing. Its 1/2.7" CMOS sensor captures 2960 (H) × 1668 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (IR). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 3.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.
Key Features
- 2960 (H) × 1668 (V) maximum image resolution with 1/2.7" CMOS sensor
- 2.8 mm fixed-focal lens; H: 111°; V: 58°; D: 132° field of view
- Night coverage: Up to 50 m (IR)
- Tripwire and intrusion detection with human/vehicle classification
- SMD 3.0 smart motion detection
- A built-in microphone, microSD recording up to 1 TB
- Power options: 12 VDC/PoE (802.3af)/ePoE; IP67 enclosure protection
Technical Specifications
Imaging and lens
| Min. Illumination | 0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6( B/W, 30 IRE) 0 lux (Illuminator on) |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1668 (V) |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 111°; V: 58°; D: 132° |
Illumination and video
| Illumination Distance | Up to 50 m (164.04 ft) (IR) |
|---|---|
| Video Frame Rate | Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| WDR | 120 dB |
| Stream Capability | 4 streams |
| Noise Reduction | 3D NR |
Intelligent analytics
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
|---|---|
| SMD | SMD 3.0 |
Connectivity and power
| Audio Input | 1 channel (RCA port) |
|---|---|
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3V–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 4 W (12 VDC); 5.8 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 6.2 W (12 VDC); 8.3 W (PoE) |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
Physical and environmental
| Colour | Black |
|---|---|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 500 g (1.10 lb) |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Operating Humidity | ≤95% |
Model / SKU: HDW5541TM-ASE-0280B-S3B. EAN: 6923172578686. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
