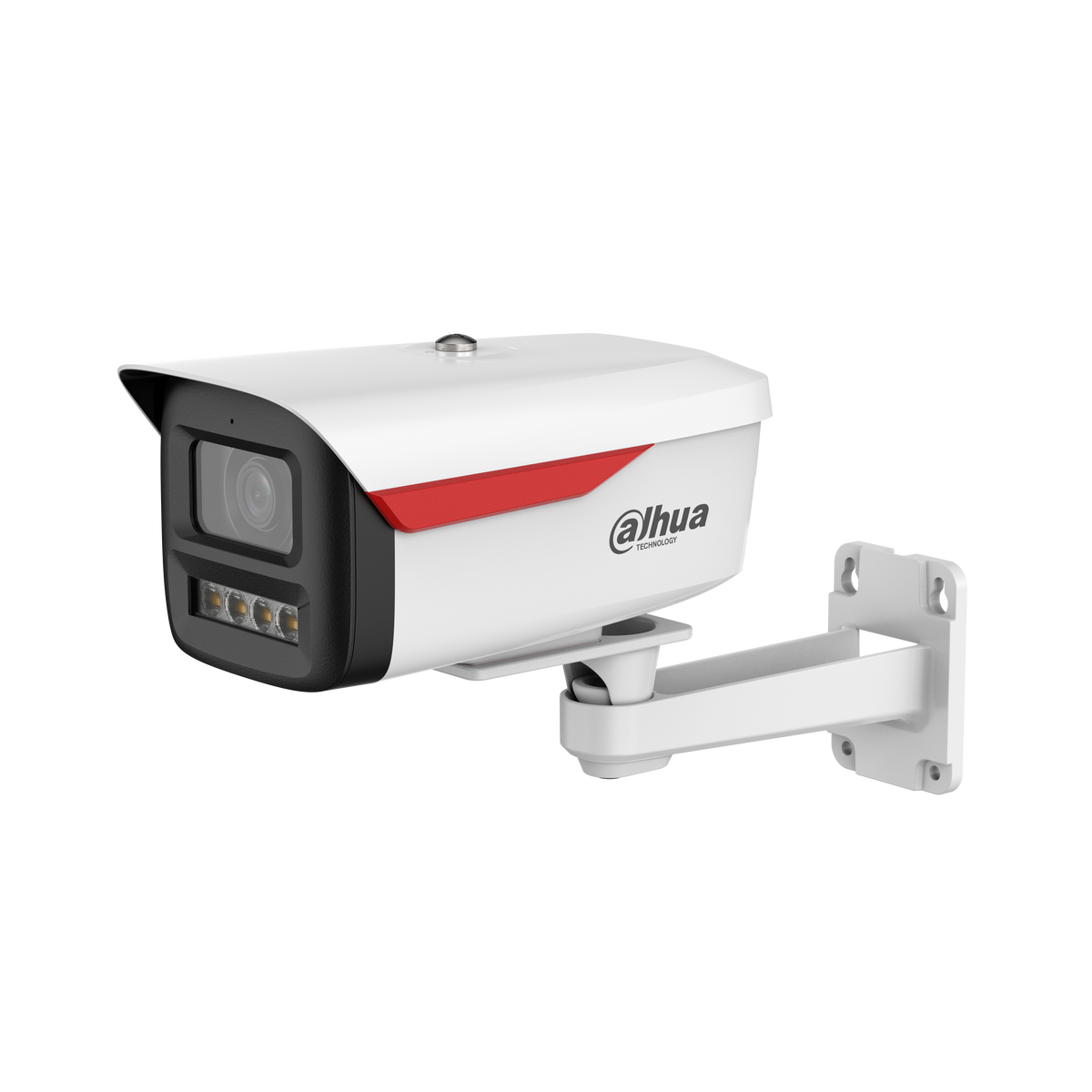

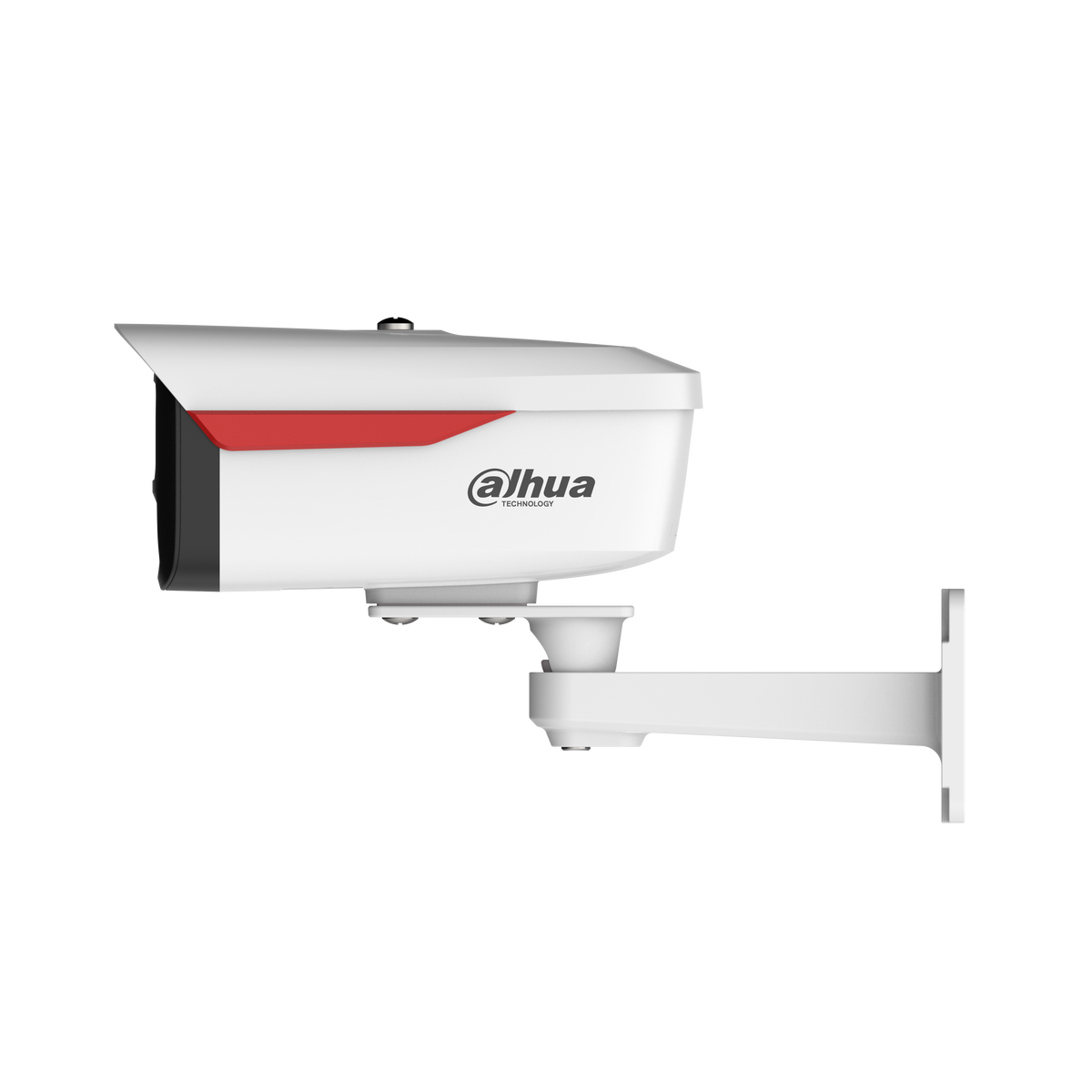

Dahua HFW2649M-S-LED0360BBPRO 6MP WizColor Fixed-focal Bullet WizSense Network Camera
Dahua HFW2649M-S-LED0360BBPRO 6MP WizColor Fixed-focal Bullet WizSense Network Camera

Dahua

Dahua HFW2649M-S-LED0360BBPRO 6MP WizColor Fixed-focal Bullet WizSense Network Camera

(0)
SKU: HFW2649M-S-LED0360BBPRO
Barcode: 6939554956690

€139,63

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua HFW2649M-S-LED0360BBPRO 6MP WizColor Fixed-focal Bullet WizSense Network Camera

€139,63

€139,63

Product Overview

The Dahua HFW2649M-S-LED0360BBPRO combines 6MP WizColor imaging with a 3.6 mm fixed lens in a bullet enclosure, using warm-light illumination for night scenes. Its 1/1.8" CMOS sensor captures 3288 (H) × 1850 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 50 m (Warm light). Video analytics include tripwire, intrusion with human and vehicle classification; SMD Plus provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 256 GB.

Key Features

  • 3288 (H) × 1850 (V) maximum image resolution with 1/1.8" CMOS sensor
  • 3.6 mm fixed-focal lens; H: 78°; V: 42°; D: 91° field of view
  • Night coverage: Up to 50 m (Warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD Plus smart motion detection
  • A built-in microphone, microSD recording up to 256 GB
  • Power options: 12 VDC (±30%); PoE (802.3af); IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.0002 lux@F1.0
Image Sensor 1/1.8" CMOS
Max. Resolution 3288 (H) × 1850 (V)
Lens Type Fixed-focal
Focal Length 3.6 mm
Max. Aperture F1.0
Field of View H: 78°; V: 42°; D: 91°

Illumination and video

Illumination Distance Up to 50 m (164.04 ft) (Warm light)
Video Frame Rate Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
WDR 120 dB
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD Plus

Connectivity and power

Built-in MIC Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 2.4 W (12 VDC); 3.2 W (PoE); Max.: 6.2 W (12 VDC); 7.5 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI

Physical and environmental

Colour White
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Casing Material Metal + plastic
Product Dimensions 201.0 mm × 103.8 mm × 97.8 mm (7.91" × 4.09" × 3.85") (L × W × H)
Net Weight 0.68 kg (1.50 lb)
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity ≤95% (RH), non-condensing

Model / SKU: HFW2649M-S-LED0360BBPRO. EAN: 6939554956690. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
