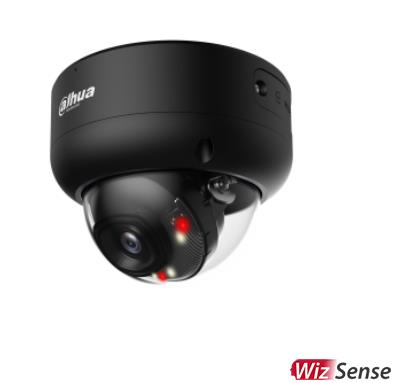

Dahua IPC-HDBW3649E-AS-IL-0280B-B 6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

Dahua

Dahua IPC-HDBW3649E-AS-IL-0280B-B 6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

(0)
SKU: IPC-HDBW3649E-AS-IL-0280B-B
Barcode: 6939554917677

€223,23

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

Low in stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-HDBW3649E-AS-IL-0280B-B 6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

€223,23

€223,23

Product Overview

The black Dahua IPC-HDBW3649E-AS-IL-0280B-B pairs 6MP imaging with a 2.8 mm fixed lens and Smart Dual Light in a metal dome enclosure. Its 1/2.7" CMOS sensor captures 3288 (H) × 1850 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 30 m (IR) Up to 30 m (Warm light). Video analytics include tripwire, intrusion, loitering with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 512 GB.

Key Features

  • 3288 (H) × 1850 (V) maximum image resolution with 1/2.7" CMOS sensor
  • 2.8 mm fixed-focal lens; H: 110°; V: 58°; D: 132° field of view
  • Night coverage: Up to 30 m (IR) Up to 30 m (Warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD 4.0 smart motion detection
  • A built-in microphone, microSD recording up to 512 GB
  • Power options: 12 VDC (±30%); PoE (802.3af); IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor 1/2.7" CMOS
Max. Resolution 3288 (H) × 1850 (V)
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Aperture F1.4
Field of View H: 110°; V: 58°; D: 132°

Illumination and video

Illumination Distance Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
Video Frame Rate Main stream: 3288 × 1850@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
WDR 120 dB
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.
SMD SMD 4.0

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output 1 channel out: wet contact, max load 300 mA 12 VDC
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 3.7 W (12 VDC); 4.6 W (PoE); Max.: 6.4 W (12 VDC); 7.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Physical and environmental

Colour Black
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10
Casing Material Metal
Product Dimensions 89.1 mm × Φ111.7 mm (3.51" × Φ4.40")
Net Weight 528 g (1.16 lb)
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity ≤95% (RH), non-condensing

Model / SKU: IPC-HDBW3649E-AS-IL-0280B-B. EAN: 6939554917677. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
