Dahua

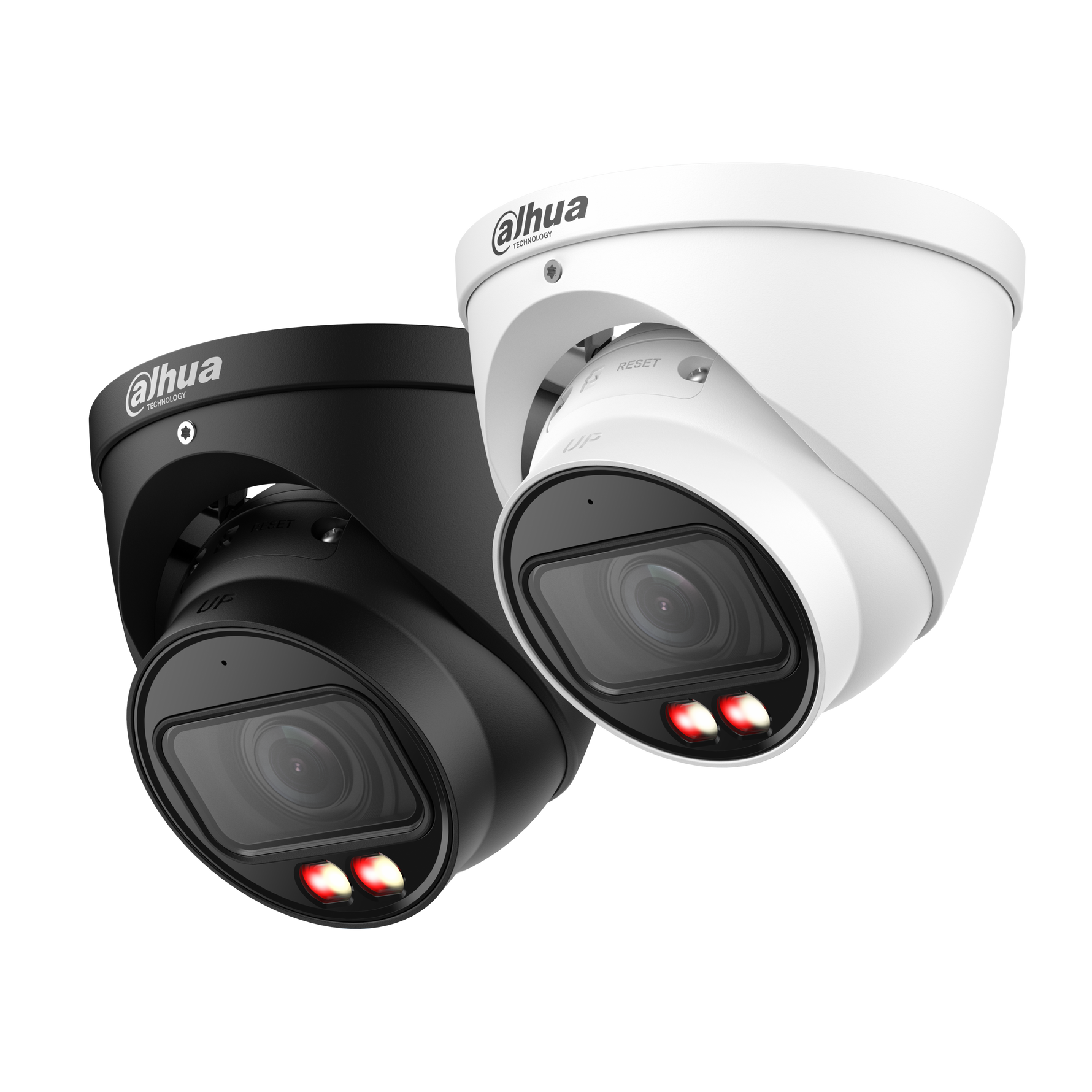

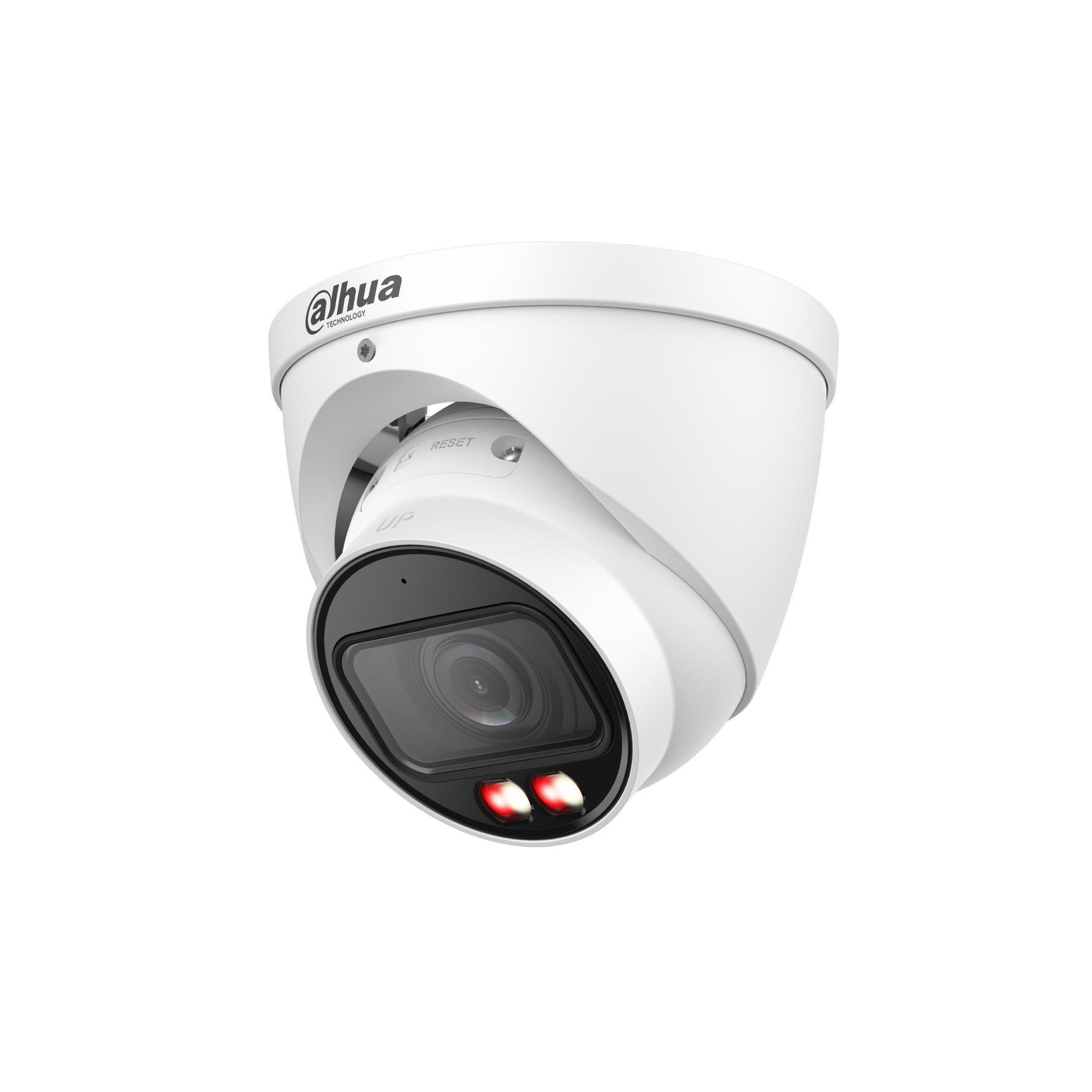

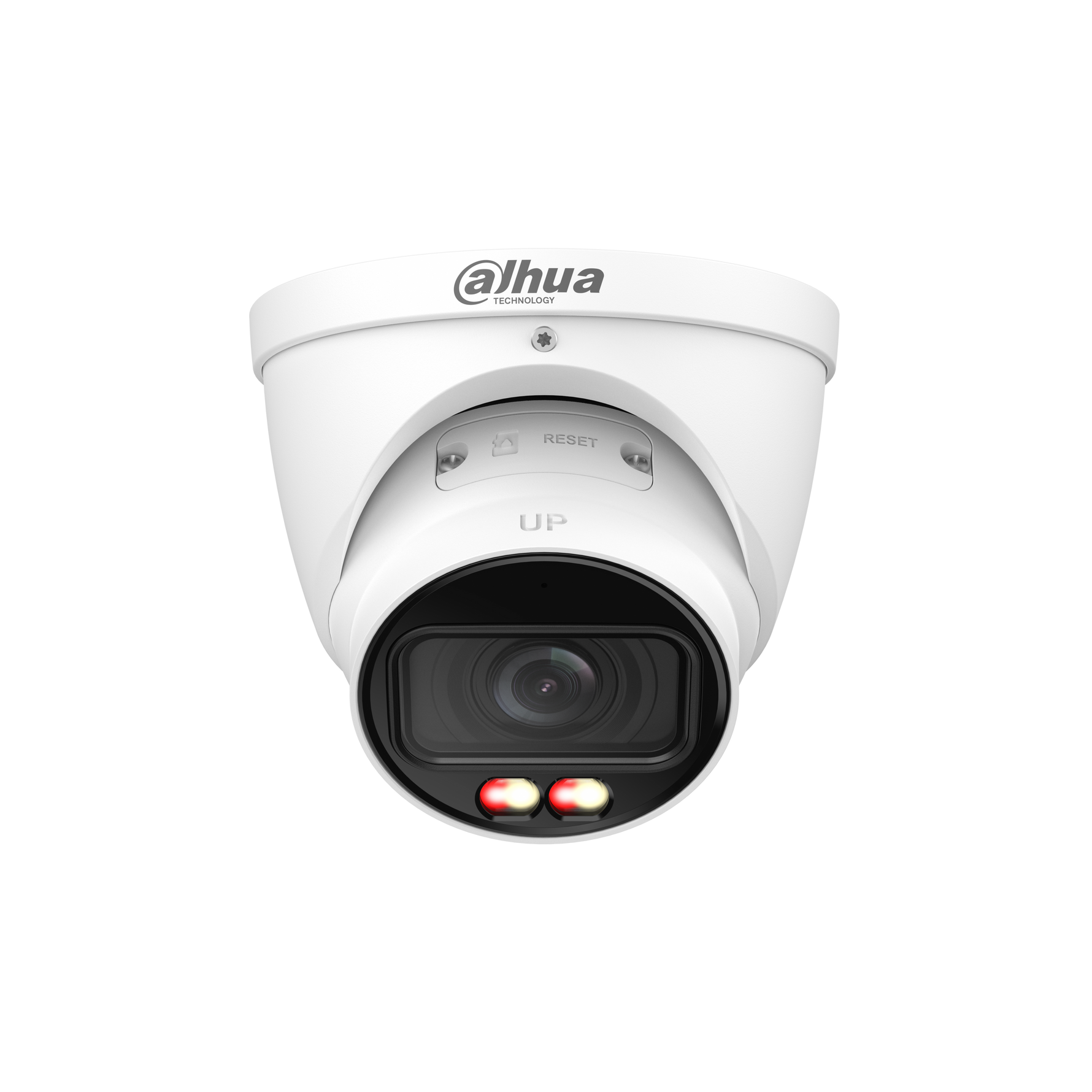

Dahua IPC-HDW2449T-ZS-IL-27135 4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
SKU: IPC-HDW2449T-ZS-IL-27135
€232,12
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
Low in stock
Estimated delivery between 30 October and 01 November.
Dahua IPC-HDW2449T-ZS-IL-27135 4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
€232,12
€232,12
Product Overview
The Dahua IPC-HDW2449T-ZS-IL-27135 pairs 4MP Smart Dual Light imaging with motorized vari-focal optics in an eyeball design for adjustable coverage. Its 1/2.9" CMOS sensor captures 2688 (H) × 1520 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 40 m (IR) Up to 40 m (Warm light). Video analytics include tripwire, intrusion with human and vehicle classification; SMD Plus provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 256 GB.
Key Features
- 2688 (H) × 1520 (V) maximum image resolution with 1/2.9" CMOS sensor
- 2.7 mm–13.5 mm motorized vari-focal lens; H: 97°–28°; V: 52°–16°; D: 117°–32° field of view
- Night coverage: Up to 40 m (IR) Up to 40 m (Warm light)
- Tripwire and intrusion detection with human/vehicle classification
- SMD Plus smart motion detection
- A built-in microphone, microSD recording up to 256 GB
- Power options: 12 VDC; PoE (802.3af); IP67 enclosure protection
Technical Specifications
Imaging and lens
| Min. Illumination | 0.006 lux@F1.5 (Color, 30 IRE) 0.0006 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
|---|---|
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 97°–28°; V: 52°–16°; D: 117°–32° |
Illumination and video
| Illumination Distance | Up to 40 m (131.23 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
|---|---|
| Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@ (1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
Intelligent analytics
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
|---|---|
| SMD | SMD Plus |
Connectivity and power
| Built-in MIC | Yes, built-in Mic |
|---|---|
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Network Port | RJ-45 (10/100 Base-T) |
| Power Supply | 12 VDC; PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) |
| Interoperability | ONVIF (Profile S & Profile T & Profile G); CGI |
Physical and environmental
| Colour | White |
|---|---|
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.69 kg (1.52 lb) |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Operating Humidity | ≤95% (RH), non-condensing |
Model / SKU: IPC-HDW2449T-ZS-IL-27135. EAN: 6939554923593. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
