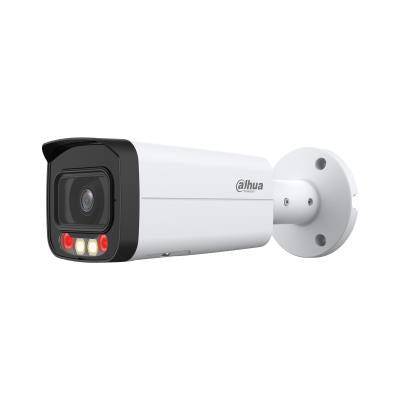

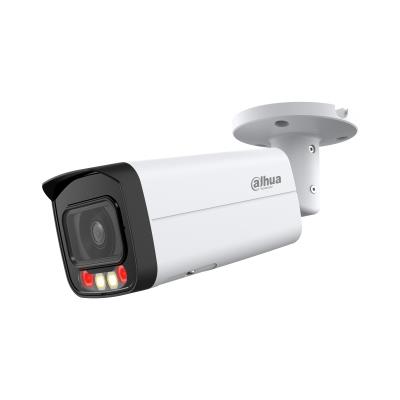

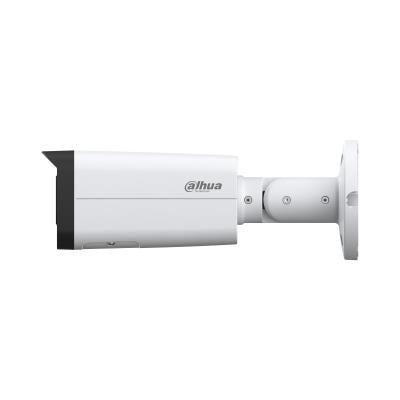

Dahua IPC-HFW2849T-AS-IL-0360B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
Dahua IPC-HFW2849T-AS-IL-0360B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
Dahua IPC-HFW2849T-AS-IL-0360B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

Dahua

Dahua IPC-HFW2849T-AS-IL-0360B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

(0)
SKU: IPC-HFW2849T-AS-IL-0360B
Barcode: 6923172590084

€154,75

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-HFW2849T-AS-IL-0360B 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

€154,75

€154,75

Product Overview

The Dahua IPC-HFW2849T-AS-IL-0360B is the 3.6 mm fixed-lens bullet configuration of the 8MP Smart Dual Light range, with network recording and an integrated microphone. Its 1/2.7" CMOS sensor captures 3840 (H) × 2160 (V) with 120 dB wide dynamic range. Night illumination is specified at up to 60 m (IR) up to 50 m (Warm light). Video analytics include tripwire, intrusion with human and vehicle classification. The camera includes a built-in microphone, microSD recording up to 256 GB.

Key Features

  • 3840 (H) × 2160 (V) maximum image resolution with 1/2.7" CMOS sensor
  • 3.6 mm fixed-focal lens; H: 87°; V: 49°; D: 100° field of view
  • Night coverage: up to 60 m (IR) up to 50 m (Warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • A built-in microphone, microSD recording up to 256 GB
  • Power options: 12 VDC/PoE (802.3af); IP67; IK10 (optional) enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.008 Lux@F1.6 (Color, 30 IRE) 0.0008 Lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
Lens Type Fixed-focal
Focal Length 3.6 mm
Max. Aperture F1.6
Field of View H: 87°; V: 49°; D: 100°

Illumination and video

Illumination Distance up to 60 m (195.85 ft) (IR) up to 50 m (164.04 ft) (Warm light)
Video Frame Rate Main stream: 3840 × 2160@(1–20 fps )/2688×1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
WDR 120 dB
Stream Capability 2 streams
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; PCM
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.6 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 7 W (12 VDC); 8.3 W (PoE)
Interoperability ONVIF (Profile S/Profile T/Profile G); CGI

Physical and environmental

Colour Black/White
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10 (optional)
Casing Material Metal
Product Dimensions 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
Net Weight 0.72 kg (1.59 lb)
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Operating Humidity ≤95%

Model / SKU: IPC-HFW2849T-AS-IL-0360B. EAN: 6923172590084. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
