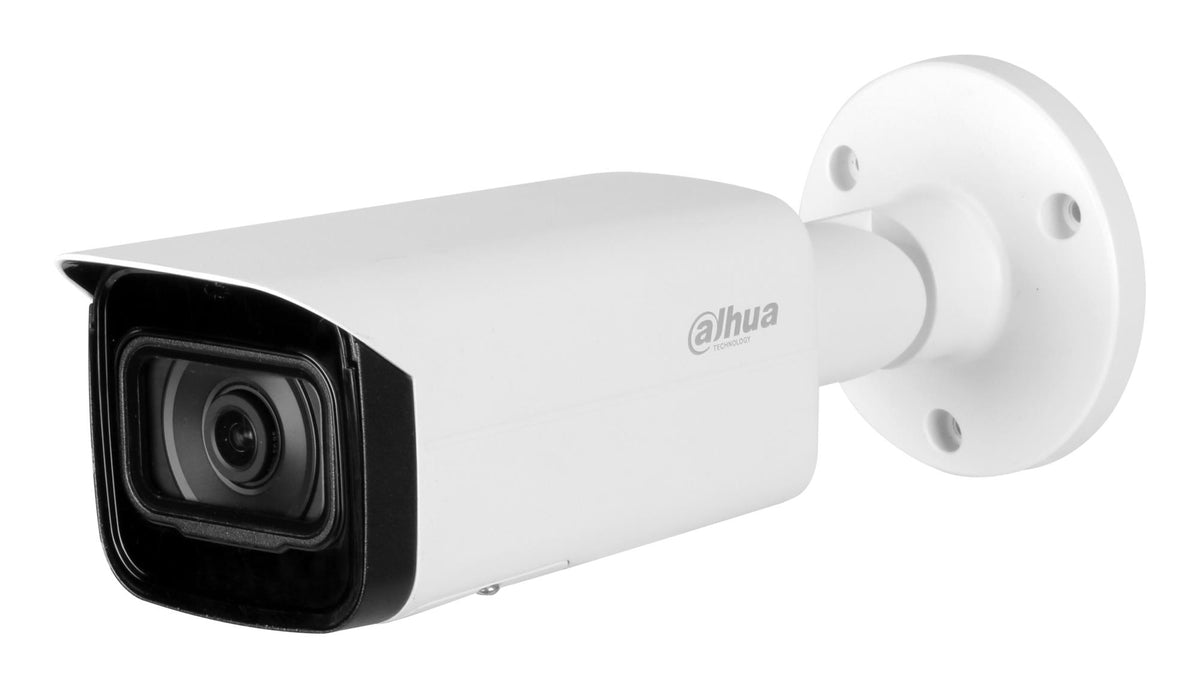

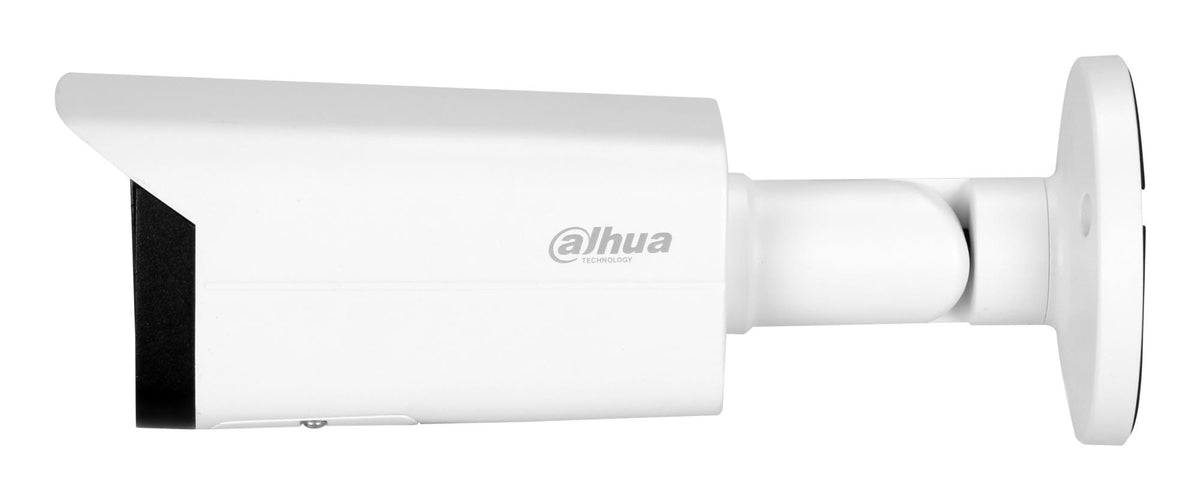

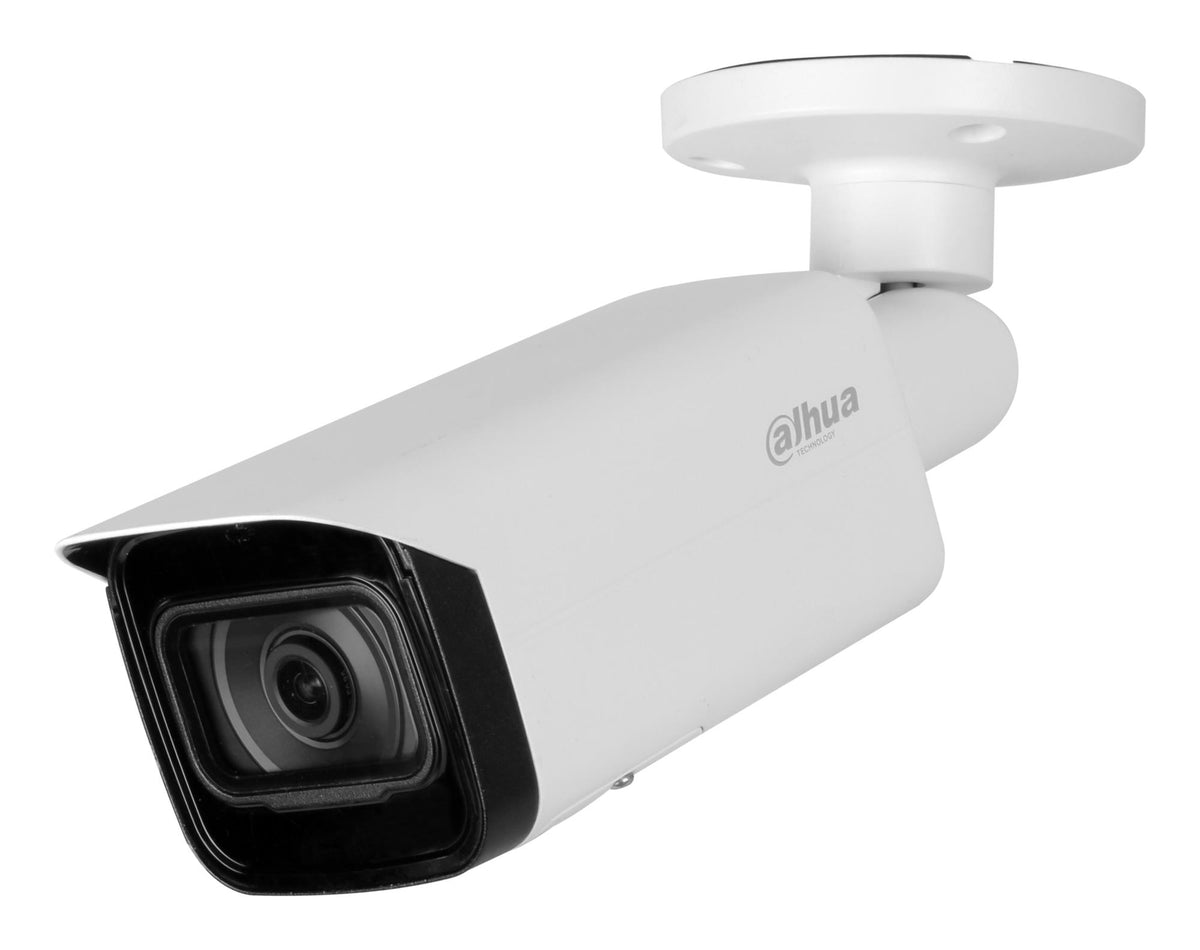

Dahua IPC-HFW5442T-ASE-0280B-S3 WizMind 4MP Bullet Network Camera 2.8mm PoE IP67
Dahua IPC-HFW5442T-ASE-0280B-S3 WizMind 4MP Bullet Network Camera 2.8mm PoE IP67
Dahua IPC-HFW5442T-ASE-0280B-S3 WizMind 4MP Bullet Network Camera 2.8mm PoE IP67

Dahua

Dahua IPC-HFW5442T-ASE-0280B-S3 WizMind 4MP Bullet Network Camera 2.8mm PoE IP67

(0)
SKU: IPC-HFW5442T-ASE-0280B-S3
Barcode: 6923172588692

€269,47

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-HFW5442T-ASE-0280B-S3 WizMind 4MP Bullet Network Camera 2.8mm PoE IP67

€269,47

€269,47

Product Overview

The Dahua IPC-HFW5442T-ASE-0280B-S3 delivers 4MP WizMind imaging through a 2.8 mm fixed lens in a metal bullet enclosure. Its 1/1.8" CMOS sensor captures 2688 (H) × 1520 (V) with 140 dB wide dynamic range. Night illumination is specified at Up to 80 m (IR). Video analytics include tripwire, intrusion, loitering, people gathering, parking detection, fast moving with human and vehicle classification; SMD 3.0 provides smart motion detection. The camera includes a built-in microphone, microSD recording up to 1 TB.

Key Features

  • 2688 (H) × 1520 (V) maximum image resolution with 1/1.8" CMOS sensor
  • 2.8 mm fixed-focal lens; H: 112°; V: 58°; D: 139° field of view
  • Night coverage: Up to 80 m (IR)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD 3.0 smart motion detection
  • A built-in microphone, microSD recording up to 1 TB
  • Power options: 12 VDC/PoE (802.3af)/ePoE; IP67; IK10 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.0007 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor 1/1.8" CMOS
Max. Resolution 2688 (H) × 1520 (V)
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View H: 112°; V: 58°; D: 139°

Illumination and video

Illumination Distance Up to 80 m (262.47 ft) (IR)
Video Frame Rate Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps)
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
WDR 140 dB
Stream Capability 4 streams
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms.
SMD SMD 3.0

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5mA 3V–5V DC
Alarm Output 1 channel out: wet contact, 300mA 12V DC
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Storage FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Network Port RJ-45 (10/100 Enhancement Base-T)
Power Supply 12 VDC/PoE (802.3af)/ePoE
Power Consumption Basic: 4.1 W (12 VDC); 5.2 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 8.3 W (12 VDC); 9.8 W (PoE)
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI

Physical and environmental

Colour White
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10
Casing Material Metal
Product Dimensions 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H)
Net Weight 0.82 kg (1.81 lb)
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Operating Humidity ≤95%

Model / SKU: IPC-HFW5442T-ASE-0280B-S3. EAN: 6923172588692. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
