Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera
Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera
Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera

Dahua

Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera

(0)
SKU: IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK
Barcode: 6923172552860

€385,09

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK 2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera

€385,09

€385,09

Product Overview

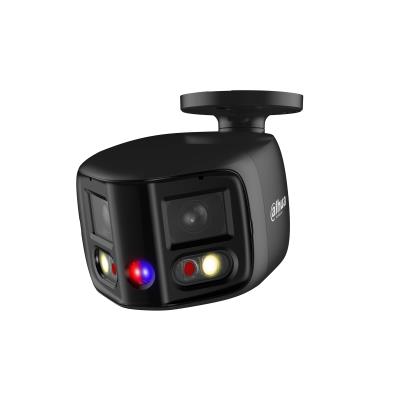

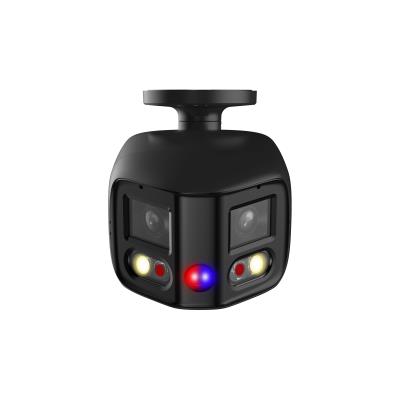

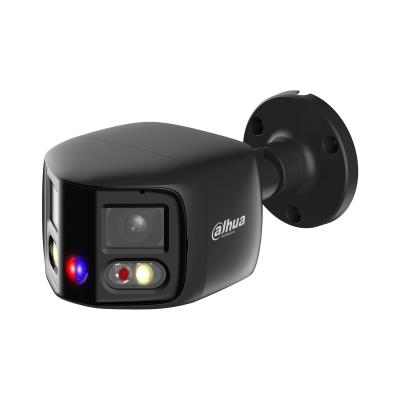

The black Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK combines two 4MP imaging channels in a TiOC Duo bullet design for spliced panoramic surveillance. Its Dual 1/2.7" CMOS sensor captures 4096 (H) × 1860 (V) with 120 dB wide dynamic range. Night illumination is specified at Up to 25 m (IR LED) Up to 20 m (Warm light). Video analytics include tripwire, intrusion, loitering with human and vehicle classification; SMD 4.0 provides smart motion detection. The camera includes dual microphones, a built-in speaker, microSD recording up to 512 GB.

Key Features

  • 4096 (H) × 1860 (V) maximum image resolution with Dual 1/2.7" CMOS sensor
  • 2.8 mm fixed-focal lens; Horizontal: 180°; Vertical: 86° field of view
  • Night coverage: Up to 25 m (IR LED) Up to 20 m (Warm light)
  • Tripwire and intrusion detection with human/vehicle classification
  • SMD 4.0 smart motion detection
  • Dual microphones, a built-in speaker, microSD recording up to 512 GB
  • Power options: 12 VDC (±30%); PoE (802.3af); IP67 enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
Image Sensor Dual 1/2.7" CMOS
Max. Resolution 4096 (H) × 1860 (V)
Lens Type Fixed-focal
Focal Length 2.8 mm
Max. Aperture F1.4
Field of View Horizontal: 180°; Vertical: 86°

Illumination and video

Illumination Distance Up to 25 m (82.02 ft) (IR LED) Up to 20 m (65.62 ft) (Warm light)
Video Frame Rate Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
WDR 120 dB
Stream Capability 3 streams
Noise Reduction 3D NR

Intelligent analytics

IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection
SMD SMD 4.0

Connectivity and power

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC (±30%); PoE (802.3af)
Power Consumption Basic: 3.4 W (12 VDC); 3.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI

Physical and environmental

Colour Black
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Casing Material Metal
Product Dimensions 183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)
Net Weight 695 g (1.53 lb)
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operating Humidity ≤95%

Model / SKU: IPC-PFW3849S-A180-E2-AS-PV-0280B-BLACK. EAN: 6923172552860. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
