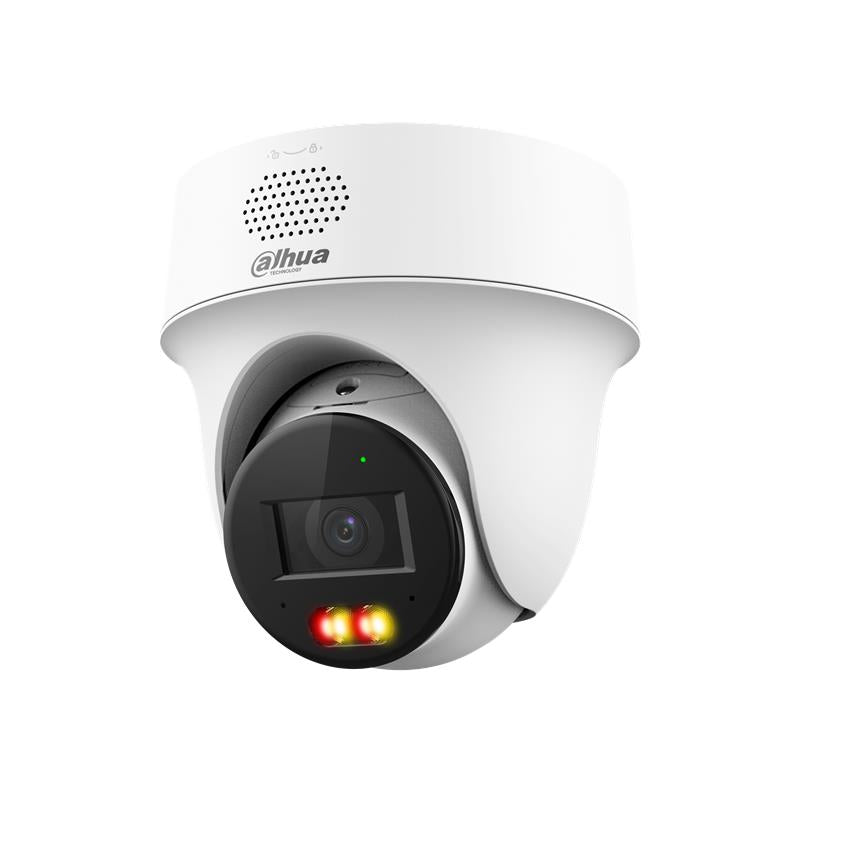

Dahua IPC-PT1439H-PV-0280B 4MP Smart Dual Light Active Deterrence Network PT Camera

Dahua

Dahua IPC-PT1439H-PV-0280B 4MP Smart Dual Light Active Deterrence Network PT Camera

(0)
SKU: IPC-PT1439H-PV-0280B
Barcode: 6939554978883

€94,27

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua IPC-PT1439H-PV-0280B 4MP Smart Dual Light Active Deterrence Network PT Camera

€94,27

€94,27

Product Overview

The Dahua IPC-PT1439H-PV-0280B is a 4MP network pan-and-tilt camera with a 2.8 mm lens, Smart Dual Light and active-deterrence features. Its 1/2.8" CMOS sensor captures 2560 (H) × 1440 (V) with 120 dB wide dynamic range. Night illumination is specified at 30 m (IR + warm light-only warm light is enbaled) 30 m (IR + warm light-only IR is enbaled). Human detection filters events by recognised human targets. The camera includes a built-in microphone, a built-in speaker.

Key Features

  • 2560 (H) × 1440 (V) maximum image resolution with 1/2.8" CMOS sensor
  • 2.8 mm lens; H: 94°; V: 51°; D: 110° field of view
  • Night coverage: 30 m (IR + warm light-only warm light is enbaled) 30 m (IR + warm light-only IR is enbaled)
  • Human target detection
  • A built-in microphone, a built-in speaker
  • Power options: 12 VDC, 1.0 A ± 10% PoE (802.3af); IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection enclosure protection

Technical Specifications

Imaging and lens

Min. Illumination 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on);
Image Sensor 1/2.8" CMOS
Max. Resolution 2560 (H) × 1440 (V)
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View H: 94°; V: 51°; D: 110°

Illumination and video

Illumination Distance 30 m (98.43 ft) (IR + warm light-only warm light is enbaled) 30 m (98.43 ft) (IR + warm light-only IR is enbaled)
Video Frame Rate Main stream: 4M/1080p/720p/640 × 360@(1–25/30 fps) Sub stream 1: 640 × 360/QVGA@(1–25/30 fps)
Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
WDR 120 dB
Noise Reduction 2D NR; 3D NR

Intelligent analytics

Human Detection Yes

Connectivity and power

Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression PCM; G.711A; G.711Mu; G.726
Storage FTP
Network Port RJ-45 (10/100 Base-T)
Power Supply 12 VDC, 1.0 A ± 10% PoE (802.3af)
Power Consumption 12 VDC, 1.0 A ± 10%: Basic: 3 W; Max: 11 W (illuminator+speaker+PTZ operation) PoE（802.3af） Basic: 4 W; Max: 12 W (illuminator+speaker+PTZ operation)
Interoperability CGI;SDK;ONVIF (Profile S & Profile T)

Physical and environmental

Colour Black/White
Operating Temperature –30 °C to +55 °C (–22 °F to +122 °F)
Protection IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection
Product Dimensions 128.4 mm × Φ127.3 mm (5.06" × Φ5.01")
Net Weight 0.41 kg (0.9 lb)
Certifications EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035;
Operating Humidity ≤95%

Model / SKU: IPC-PT1439H-PV-0280B. EAN: 6939554978883. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
