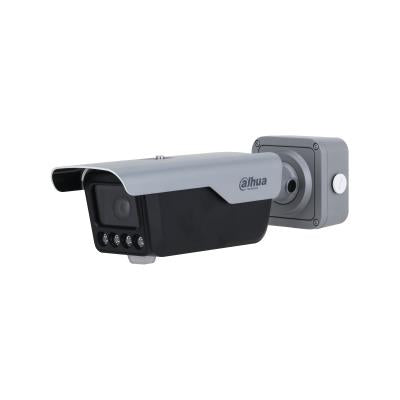

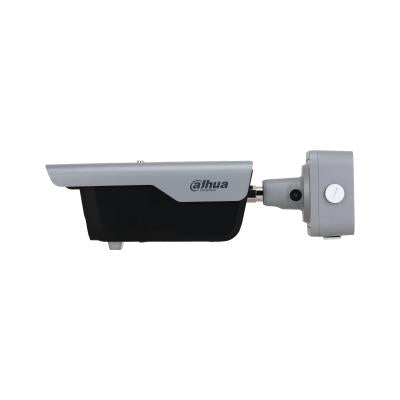

Dahua ITC413-PW4D-IZ1 Dahua Access ANPR Camera
Dahua ITC413-PW4D-IZ1 Dahua Access ANPR Camera

Dahua

Dahua ITC413-PW4D-IZ1 Dahua Access ANPR Camera

(0)
SKU: ITC413-PW4D-IZ1
Barcode: 6923172581396

€711,48

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

In stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua ITC413-PW4D-IZ1 Dahua Access ANPR Camera

€711,48

€711,48

Product Overview

The Dahua ITC413-PW4D-IZ1 is an access ANPR camera with 2.7–12 mm optics, configured for vehicle-access monitoring and number-plate capture. Its 1/1.8" CMOS sensor captures 2688 × 1520 with 140 dB wide dynamic range. The camera includes a built-in microphone, a built-in speaker, microSD recording up to 16 GB.

Key Features

  • 2688 × 1520 maximum image resolution with 1/1.8" CMOS sensor
  • 2.7–12 mm motorized vari-focal lens
  • A built-in microphone, a built-in speaker, microSD recording up to 16 GB
  • Power options: 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W; IK10; IP67 enclosure protection
  • Video Compression: H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
  • WDR: 140 dB
  • Storage: Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G

Technical Specifications

Imaging and lens

Focal Length 2.7–12 mm
Image Sensor 1/1.8" CMOS
Image Resolution 2688 × 1520
Lens Type Motorized Vari-focal

Illumination and video

Video Compression H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
WDR 140 dB
Noise Reduction 3D NR

Connectivity and power

Audio Output 1 channel (RCA port)
Alarm Input 2, optocoupler input (wet node on-off value: 5 V)
Alarm Output 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers
Built-in MIC Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k.
Built-in Speaker Yes; Power: 2 W
Storage Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G
Network Port RJ-45 (10/100 Mbps Ethernet port)
Power Supply 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W
Power Consumption Power consumption in different conditions: No lighting < 6 W Lighting <12 W Speaker and Red/Blue Light Warning on < 17 W
Interoperability ONVIF (Profile S/Profile T/Profile M); CGI; ITSAPI; P2P

Physical and environmental

Colour Black/White
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Protection IK10; IP67
Casing Material Aluminum alloy body+Plastic
Product Dimensions 395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" × 5.03") (L × W × H)
Net Weight 2.3 kg (5.07 lb)
Certifications CE-EMC; CE-LVD; CE-RED; FCC
Operating Humidity 10%–90% (non-condensing)

Model / SKU: ITC413-PW4D-IZ1. EAN: 6923172581396. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
