Dahua

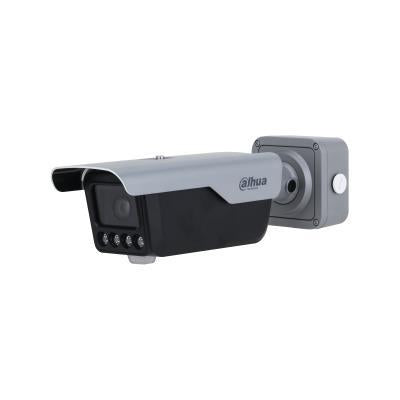

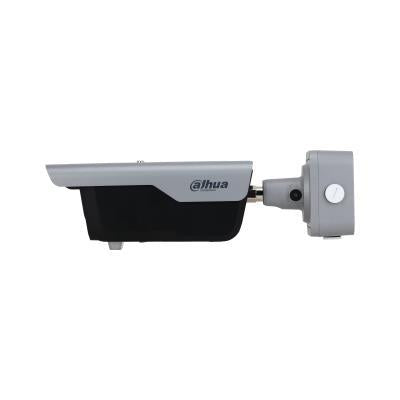

Dahua ITC413-PW4D-IZ3 Dahua Access ANPR Camera
SKU: ITC413-PW4D-IZ3
€844,88
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 30 October and 01 November.
Dahua ITC413-PW4D-IZ3 Dahua Access ANPR Camera
€844,88
€844,88
Product Overview
The Dahua ITC413-PW4D-IZ3 is the access ANPR configuration with 8–32 mm optics, providing a different framing range from the IZ1 version for vehicle-access monitoring. Its 1/1.8" CMOS sensor captures 2688 × 1520 with 140 dB wide dynamic range. The camera includes a built-in microphone, a built-in speaker, microSD recording up to 16 GB.
Key Features
- 2688 × 1520 maximum image resolution with 1/1.8" CMOS sensor
- 8–32 mm motorized vari-focal lens
- A built-in microphone, a built-in speaker, microSD recording up to 16 GB
- Power options: 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W; IK10; IP67 enclosure protection
- Video Compression: H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
- WDR: 140 dB
- Storage: Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G
Technical Specifications
Imaging and lens
| Focal Length | 8–32 mm |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Image Resolution | 2688 × 1520 |
| Lens Type | Motorized Vari-focal |
Illumination and video
| Video Compression | H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M |
|---|---|
| WDR | 140 dB |
| Noise Reduction | 3D NR |
Connectivity and power
| Audio Output | 1 channel (RCA port) |
|---|---|
| Alarm Input | 2, optocoupler input (wet node on-off value: 5 V) |
| Alarm Output | 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers |
| Built-in MIC | Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. |
| Built-in Speaker | Yes; Power: 2 W |
| Storage | Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G |
| Network Port | RJ-45 (10/100 Mbps Ethernet port) |
| Power Supply | 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W |
| Power Consumption | Power consumption in different conditions: No lighting < 6 W Lighting <12 W Speaker and Red/Blue Light Warning on < 17 W |
| Interoperability | ONVIF (Profile S/Profile T/Profile M); CGI; ITSAPI; P2P |
Physical and environmental
| Colour | Black/White |
|---|---|
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Protection | IK10; IP67 |
| Casing Material | Aluminum alloy body+Plastic |
| Product Dimensions | 395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" × 5.03") (L × W × H) |
| Net Weight | 2.3 kg (5.07 lb) |
| Certifications | CE-EMC; CE-LVD; CE-RED; FCC |
| Operating Humidity | 10%–90% (non-condensing) |
Model / SKU: ITC413-PW4D-IZ3. EAN: 6923172581419. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
