Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder
Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder
Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

Dahua

Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

(0)
SKU: NVR2108-4KS3
Barcode: 6923172507846

€96,94

All prices include VAT where applicable.

Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.

Low in stock

Estimated delivery between 30 October and 01 November.

In stock and ready to ship

30 days satisfaction guarantee
Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

€96,94

€96,94

Product Overview

The Dahua NVR2108-4KS3 is an 8CH Smart 1U 1HDD Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Recorder-side analytics support SMD.

Key Features

  • IP camera capacity: 8 channels
  • Incoming / recording / outgoing bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
  • Hard-drive interfaces: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
  • Local display connections: 1 HDMI, 1 VGA, 720 VGA
  • Recorder-side AI: SMD
  • Simultaneous playback: Up to 8 channels
  • Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Technical Specifications

Intelligent analytics

SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Perimeter Performance of AI by Camera (Number of Channels) All channels (4 targets/s)
AI by Recorder SMD
AI by Camera Perimeter protection; SMD

Recording and video

Multi-channel Playback Up to 8 channels
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726;
Access Channel 8 channels
Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

Connectivity and power

Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels are optional)
Alarm Output NA (1-channel 12 V 1 A output is optional)

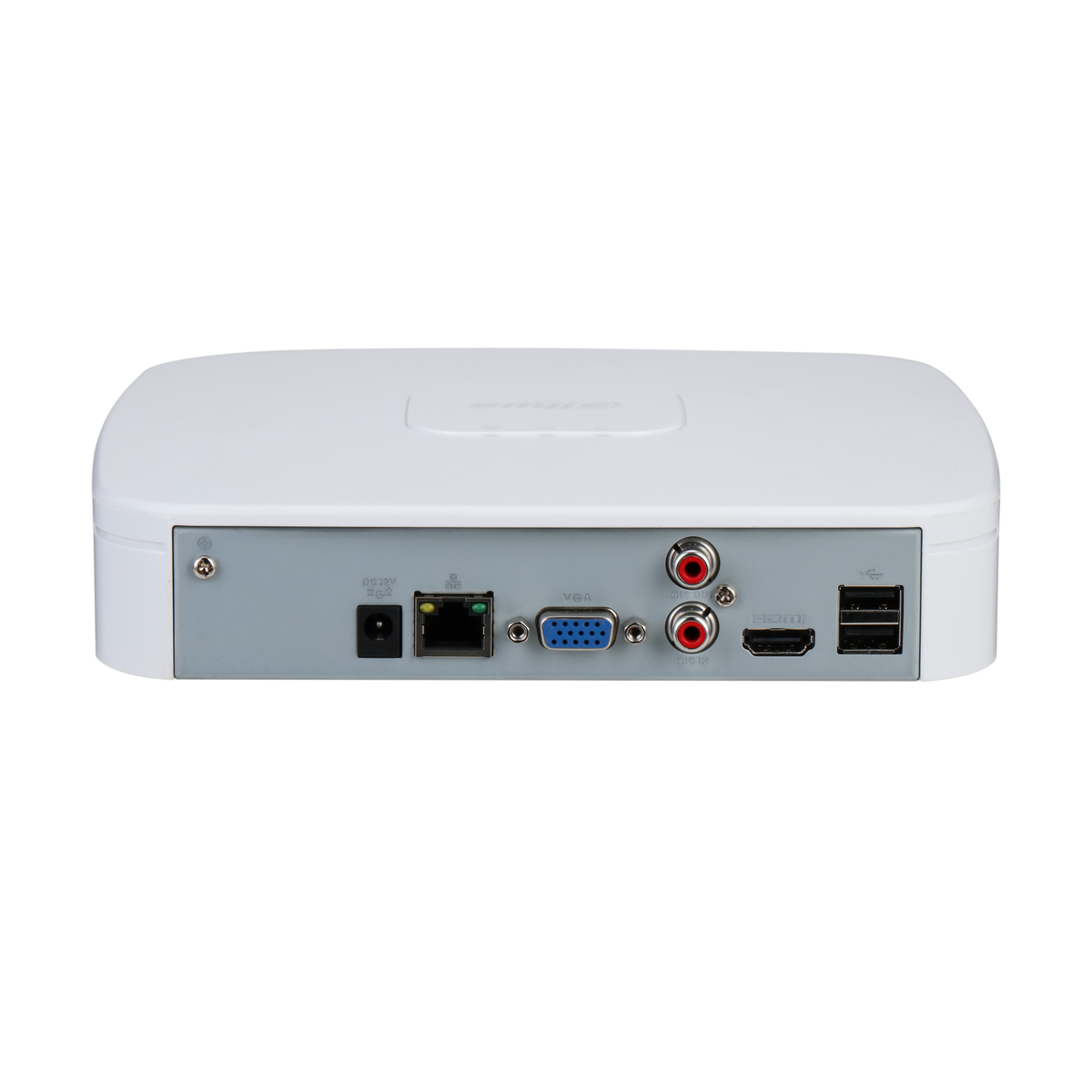

Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI 1
VGA 1
USB 2 (2 rear USB 2.0 ports)
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply 12 VDC, 1.5 A
Power Consumption <10 W (without HDD)
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Storage and backup

Disk Interface 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.

Physical and environmental

Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Product Dimensions 204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Net Weight 0.45 kg (0.99 lb)
Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Operating Humidity 10%–93% (RH), non-condensing

Model / SKU: NVR2108-4KS3. EAN: 6923172507846. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
