Dahua

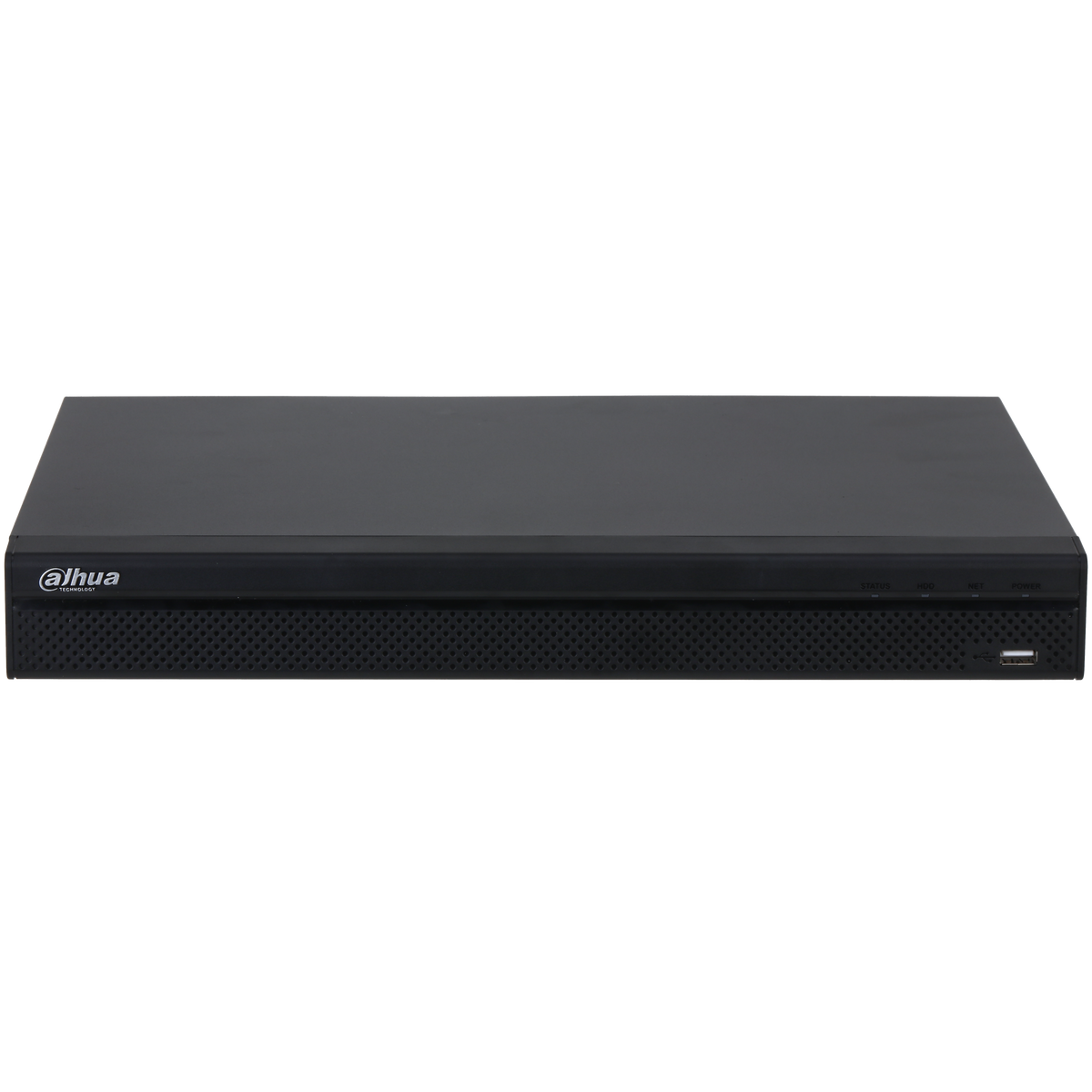

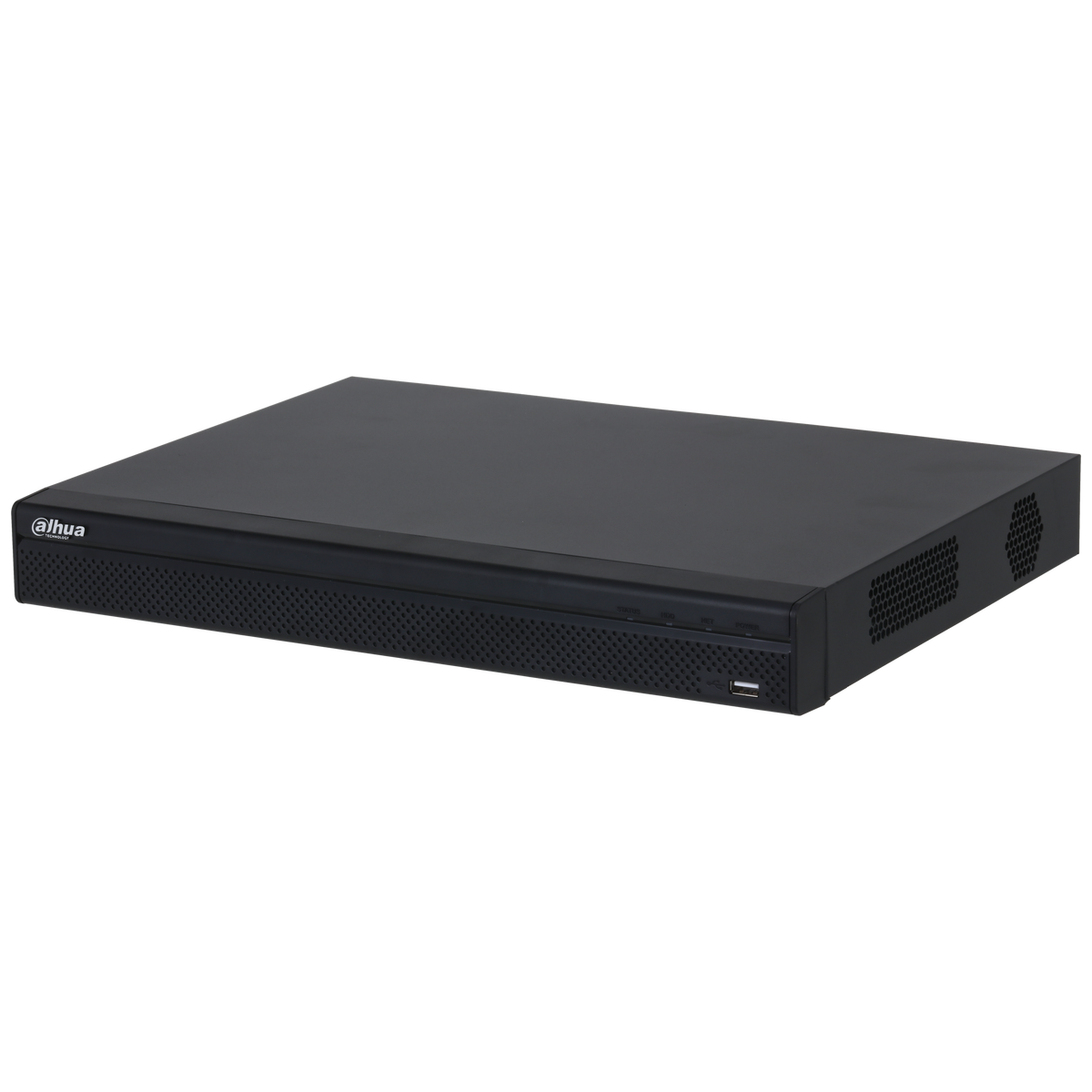

Dahua NVR4208-4KS3 8CH 1U 2HDDs Lite Network Video Recorder
SKU: NVR4208-4KS3
€182,32
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
Low in stock
Estimated delivery between 30 October and 01 November.
Dahua NVR4208-4KS3 8CH 1U 2HDDs Lite Network Video Recorder
€182,32
€182,32
Product Overview
The Dahua NVR4208-4KS3 is an 8CH 1U 2HDDs Lite Network Video Recorder. It accepts 8 channels. Network throughput is specified as AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing. Recording storage: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recorder-side analytics support SMD.
Key Features
- IP camera capacity: 8 channels
- Incoming / recording / outgoing bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Hard-drive interfaces: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
- Local display connections: 1 HDMI, 1 VGA, 720 VGA
- Recorder-side AI: SMD
- Simultaneous playback: Up to 8 channels
- Recording codecs: Smart H.265+; H.265; Smart H.264+; H.264
Technical Specifications
Intelligent analytics
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|---|---|
| SMD by Camera | All channels (12 targets/s) |
| Perimeter Performance of AI by Camera (Number of Channels) | 6 channels |
| AI by Recorder | SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map |
Recording and video
| Multi-channel Playback | Up to 8 channels |
|---|---|
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Access Channel | 8 channels |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |

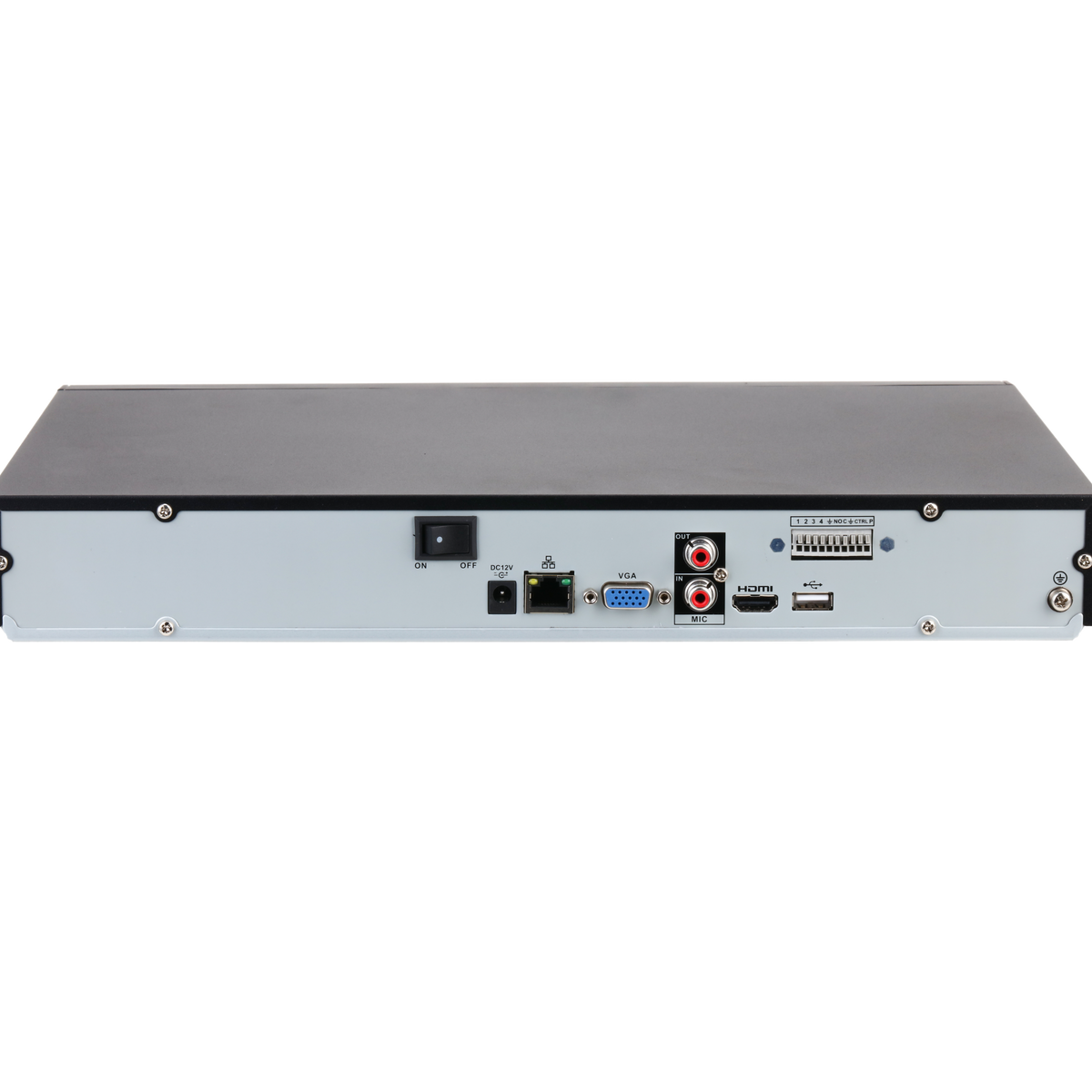

Connectivity and power
| Audio Input | 1-channel RCA |
|---|---|
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels (1-channel 12 V 1 A output） |
| Video Output | 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| HDMI | 1 |
| VGA | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | Total output of NVR is <10 W(without HDD) |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
Storage and backup
| Disk Interface | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
|---|---|
| Disk Group | Yes |
Physical and environmental
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|---|
| Product Dimensions | 375.0 mm × 282.9 mm × 53.0 mm (14.76" × 11.14" × 2.09") (W × D × H) |
| Net Weight | 1.49 kg (3.28 lb) |
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Operating Humidity | 10%–93% (RH), non-condensing |
Model / SKU: NVR4208-4KS3. EAN: 6923172573773. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
