Dahua
Dahua SG1010LP 10-Port Economical Gigabit PoE Switch with 8-Port PoE
SKU: SG1010LP
€92,49
All prices include VAT where applicable.
Eligible intra-EU B2B transactions with a valid VAT number may be subject to reverse charge under EU VAT rules.
In stock
Estimated delivery between 30 October and 01 November.
Dahua SG1010LP 10-Port Economical Gigabit PoE Switch with 8-Port PoE
€92,49
€92,49
Product Overview

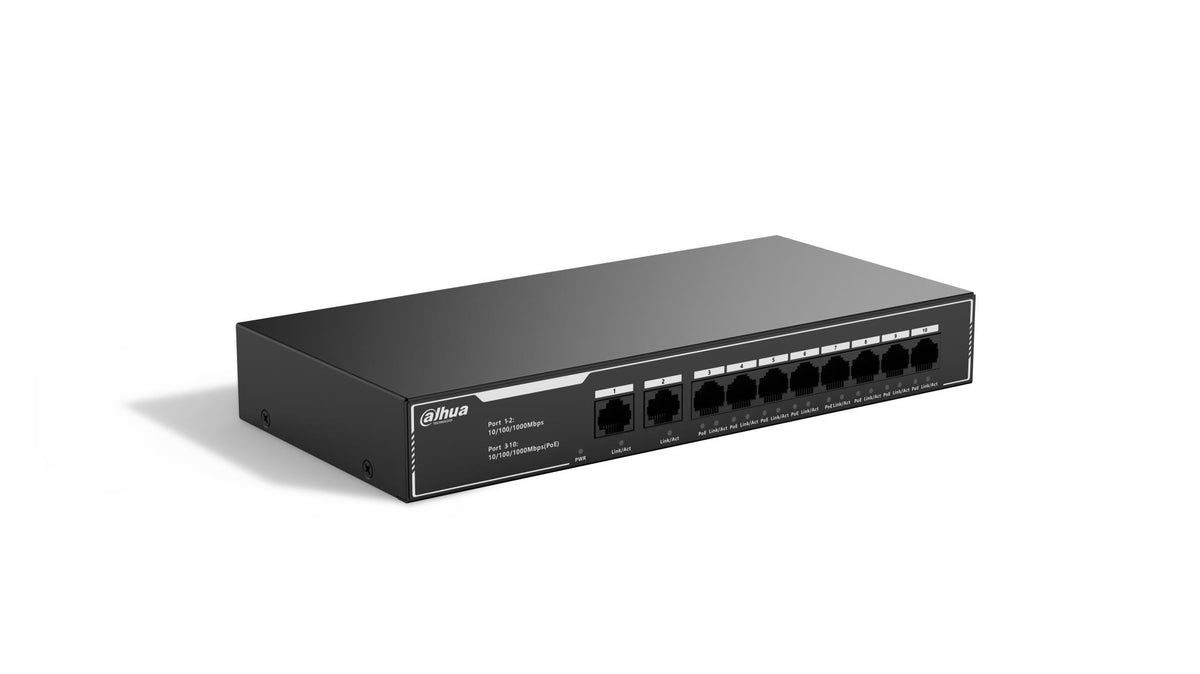

The Dahua SG1010LP is a 10-Port Economical Gigabit PoE Switch with 8-Port PoE. Connections comprise Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE). Its PoE allocation is port 3–10 ≤30 W; Total ≤65 W. The switching fabric is rated at 20 Gbps with a packet forwarding rate of 14.88 Mpps. Installation options are desktop mount.
Key Features
- Network connections: Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE)
- Link speed: 10/100/1000 Mbps
- PoE power allocation: Port 3–10 ≤30 W; Total ≤65 W
- Supported PoE standards: IEEE 802.3af; IEEE 802.3at
- Switching fabric: 20 Gbps
- Packet forwarding: 14.88 Mpps
- MAC address table: 2K Byte
Technical Specifications
Physical and environmental
| Colour | Black |
|---|---|
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Casing Material | Iron |
| Product Dimensions | 243 mm × 118 mm × 35 mm (9.57" × 4.65" × 1.36") (L × W × H) |
| Net Weight | 0.8 kg (1.76 lb) |
| Certifications | CE Transmission Performance: Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Installation | Desktop mount |
Network interfaces
| Ethernet Port | 8 |
|---|---|
| Ethernet Port Speed | 10/100/1000 Mbps |
| Description of Function Slots | Port 1-2:2 × RJ-45 10/100/1000Mbps(Uplink) Port 3-10:8 × RJ-45 10/100/1000Mbps(PoE) |
PoE and power
| PoE | Yes |
|---|---|
| PoE Power | Port 3–10 ≤30 W; Total ≤65 W |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at |
| Power Supply | Built-in power supply: 100–240 VAC; 50/60 Hz; 1.5 A (maximum) |
| Power Consumption | Idling: 1.8 W Full load: 65 W |
| Included Power Adapter | Yes |
Switching performance
| Switching Capacity | 20 Gbps |
|---|---|
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Table Size | 2K Byte |
Model / SKU: SG1010LP. EAN: 6923172572073. Specifications apply to the stated configuration; conditional and optional functions are identified in the tables.
